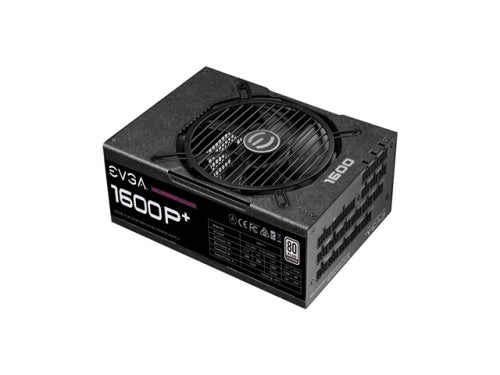

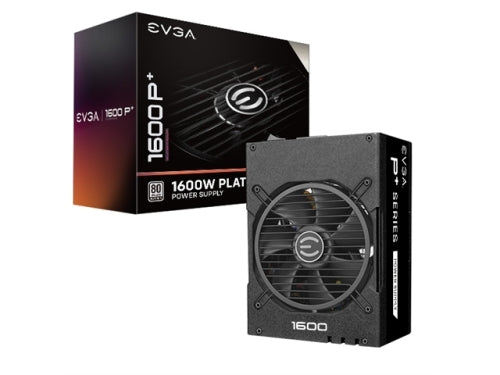

EVGA Power Supply 220-PP-1600-X1 SuperNOVA 1600 P+ 1600W 80+Platinum FullyModular Retail

MPN
220-PP-1600-X1
CABLE LENGTH
ATX Cable
1x 600mm
EPS Cable
2x 750mm
PCIe Cable
4x 750mm, 5x 750mm, 900mm
SATA Cable
2x 550mm, 650mm, 750mm, 850mm, 2x 550mm, 650mm, 750mm
Four-Pin Peripheral Cable
2x 550mm, 650mm, 750mm, 850mm
Floppy Adapter
2x 100mm
AC Power
1x 1800mm
Modular Cable Type
Full
CONNECTOR QUANTITY
24 Pin ATX
1x
EPS (CPU)
2x 8pin (4+4)
PCIe
14x 8pin (6+2)
SATA
14x
Four-Pin Peripheral
8x
Floppy
2x
POWER SPECS
AC Input
115-240V, 17-9A, 60/50 Hz
Rail
+3.3V / +5V / +12V / +5Vsb / -12V
Max Output
25A / 25A / 133A / 4A / 0.5A
150W / 150W / 1596W / 20W /6W
Total
1600W
ADDITIONAL DETAILS
Operating Temperature
0^o to 50^o C
Japanese Capacitors
100%
ECO Mode
Yes
MTBF
100,000 Hours
Approvals
TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement
Fan Size / Bearing
135mm Double Ball Bearing
