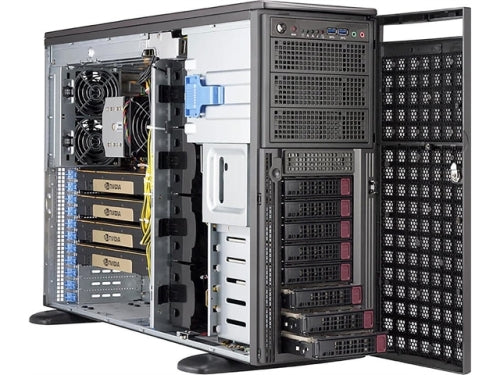

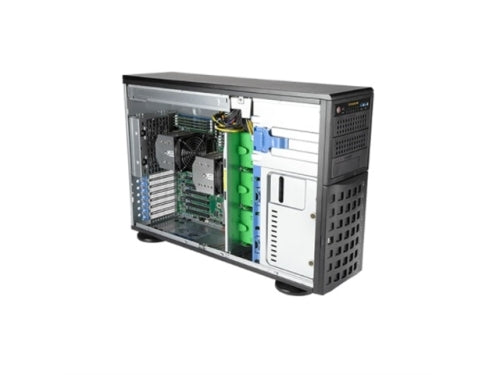

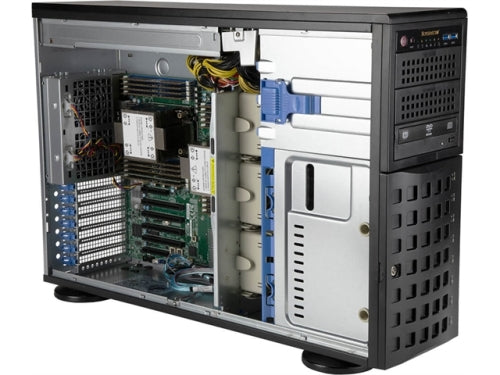

  • Supermicro Server SYS-540A-TR XeonW-3300 LGA4189 Socket P+ C621A Max.4TB 4x92mm hot-swap 2200W Brown Box
    Sold out
    $2,561.99

    Supermicro Server SYS-540A-TR XeonW-3300 LGA4189 Socket P+ C621A Max.4TB 4x92mm hot-swap 2200W Brown Box

    MPN SYS-540A-TR Motherboard Super X12SPA-TF Processor CPU Single Socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable processors,Intel Xeon W-3300 processors Support CPU TDP 270W Cores Up to 38C/76T,40C/80T, Up to 57,60MB Cache System Memory Memory Memory Capacity: 16 DIMM slots Up to 4TB: 16x 256 GB DRAM Memory Type: 3200MHz ECC DDR4 RDIMM / LRDIMM Memory Voltage 1.2 V Error Detection ECC On-Board Devices Chipset Intel C621A Network Connectivity 1x 1GbE BaseT with Intel I210-AT 1x 1GbE BaseT with Realtek RTL8211F PHY (dedicated IPMI) 1x 10GbE BaseT with Marvell AQC113 IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Input / Output SATA 8 SATA (6Gbps) port(s) USB 4 USB 2.0 port(s) (2 header, 2 rear) 6 USB 3.2 Gen 1 port(s) (2 header, 4 rear) 2 USB 3.2 Gen 2 port(s) (1 rear Type A, 1 rear Type C) 1 USB 3.2 Gen 2x2 port(s) (1 rear) Video 1 VGA port(s) System BIOS BIOS Type AMI 256MB SPI Flash Management Software SPM KVM with dedicated LAN IPMI 2.0 SuperDoctor 5 SUM Watch Dog Power Configurations ACPI 6.0 PC Health Monitoring Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT Chassis Form Factor Tower Model CSE-747BTS-R2K20BP Available Color Black Front and Silver Body Front Panel Buttons Power On/Off button System Reset button LEDs Hard drive activity LED Network activity LEDs Power status LED System Overheat and Power Fail LED Expansion Slots PCI-Express (PCI-E) Slot 1: PCI-E 4.0 x16 Slot 2: PCI-E 4.0 x8 (in x16) Slot 3: PCI-E 4.0 x16 Slot 4: PCI-E 4.0 x8 (in x16) Slot 5: PCI-E 4.0 x16 Slot 6: PCI-E 4.0 x8 (in x16) Slot 7: PCI-E 4.0 x16 Drive Bays / Storage Hot-swap 8x 3.5" hot-swap SATA drive bays M.2 4x PCI-E 4.0 x4 Peripheral Bays 3x 5.25" drive bays System Cooling Fans 2x 80mm Fan(s) 4x 92mm Fan(s) Power Supply 2200W Redundant Power Supplies with PMBus AC Input 1200W: 100-127Vdc / 50-60Hz 1800W: 200-220Vdc / 50-60Hz 1980W: 220-230Vdc / 50-60Hz 2090W: 230-240Vdc / 50-60Hz 2200W: 230-240Vdc / 50-60Hz +12V Max: 100A / Min: 0A Max: 150A / Min: 0A Max: 165A / Min: 0A Max: 174A / Min: 0A Max: 183.3A / Min: 0A Output Type Backplanes (gold finger) Certification Titanium Level ( Test Report: https://www.supermicro.org.cn/products/powersupply/80PLUS/80PLUS_PWS-2K20A-1R%C2%A0%C2%A0.pdf ) Operating Environment Environmental Spec. Operating Temperature: 10 o C to 35 o C (50 o F to 95 o F) Non-operating Temperature: -40 o C to 60 o C (-40 o F to 140 o F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
