  • ASRock IO PAUL Low-profile PCIe IPMI card add-in-card ASPEED AST2500 Brown Box
    Sold out
    $195.49

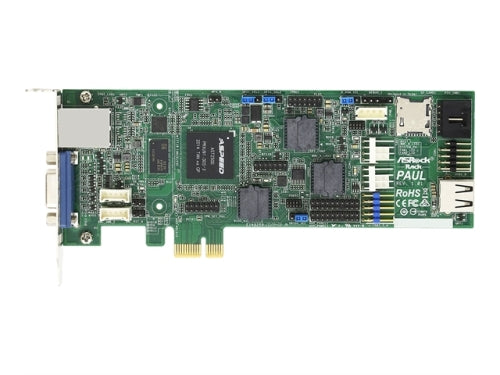

    ASRock IO PAUL Low-profile PCIe IPMI card add-in-card ASPEED AST2500 Brown Box

    Controller ASPEED AST2500 Feature Base Board Management Controller (IPMI2.0 with iKVM support) VGA (1920x1200 at 60Hz 32bpp) Memory 2 SPI flash ROM 32MB 1 DDR4 SDRAM 4Gb Physical Status Form Factor Low profile PCIe add-in-card I/O Upstream interface PCI Express2.0 x1 External 1 RJ45 via Realtek RTL8211E for dedicated IPMI LAN (10/100/1000 Mbps), 1 DB-15 (VGA) Internal connectors 2 SMBus header 1 PMBus header 1 IPMB header 1 BMC reset 1 BMC debug header 1 V BIOS or system BIOS ROM 2 BMC ROM 1 Dual ROM select header 1 TPM (13-pin, LPC) 1 LPC header (13-pin) 2 Fan header 1 USB2.0 (5-pin): KVM and standby power 1 header (18-pin): GPIO, NCSI 1 header (18-pin): case open, system fail, GPIO, SMBus, PECI, voltage monitoring 1 COM port (9-pin) 1 micro-SD connector 1 USB Type-A (USB 2.0) Power Power consumption 7.54W Input 1 USB2.0 header (5-pin, 5VSB) Goldfinger (+12V) Environment Temperature Operation temperature: 10 o C - 35 o C / Non operation temperature: -40 o C - 70 o C
