Power Supply

Intel Specification ATX12V Efficiency 80Plus Bronze Protection Features OPP/OVP/UVP/SCP/OCP/OTP Hazardous Materials ROHS AC Input Range 100-240Vac DC Output Voltage +3.3V +5V +12V -12V +5Vsb Maximum Load 25A 25A 51A 0.8A 3A Total Output 650W Connectors MB 24/20-pin x1 CPU 4+4-pin x2 PCI-E 6+2-pin x4 SATA x5 Periplheral x4 Package Contents Power Cord x1 Motherboard Power Cable x1 (600mm) CPU Cable x2 (800mm) PCI-E Cable x2 (600mm) SATA Cable x2 (400+120mm x1, 400+120+120mm x1) Periphreal x1 (400+150+150+150mm) TUF Gaming sticker x1

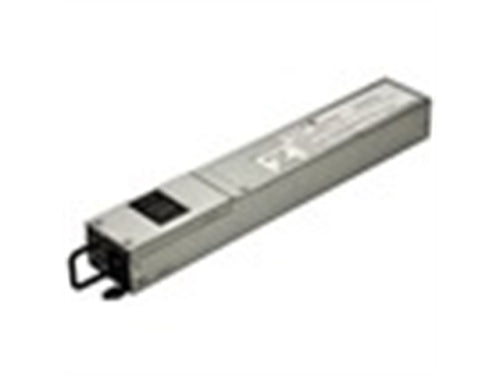

1U 700/750W Single Output Power Supply Platinum level, 54.5mm width

CABLE LENGTH ATX CABLE 1x 550mm EPS CABLE 1x 600mm (m) PCIE CABLE 2x 550mm, 670mm SATA CABLE 3x 450mm, 570mm, 690mm FOUR-PIN PERIPHERAL CABLE 1x 450mm, 570mm, 690mm + 810mm (Floppy) AC POWER 1x 1200mm (m) MODULAR CABLE TYPE No CONNECTOR QUANTITY 24 PIN ATX 1x EPS (CPU) 1x 8pin (4+4) PCIE 4x 8pin (6+2) SATA 9x FOUR-PIN PERIPHERAL 3x FLOPPY 1x POWER SPECS AC Input 100 - 240 VAC, 10/5A, 50 - 60 Hz Rail: +3.3V/Max Output: 24A/150W Rail: +5V/Max Output: 20A/150W Rail: +12V/Max Output: 58.3/ 699.6W/ 699.6W Rail: +5Vsb/Max Output: 3A/ 15W Rail: -12V/Max Output: 0.3A/3.6W Total 700W at +30C OPERATING TEMPERATURE 0 o to 30 o C JAPANESE CAPACITORS NO ECO MODE NO MTBF 100,000 Hours APPROVALS TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement FAN SIZE / BEARING 120mm Fluid Dynamic Bearing

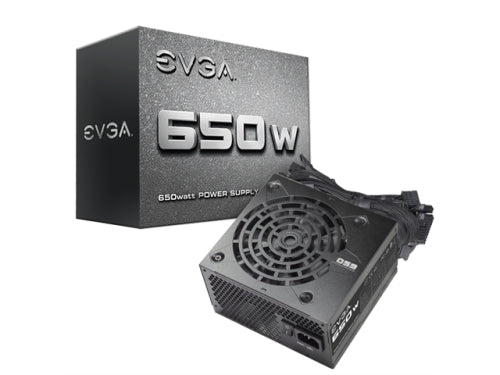

MPN 100-GD-0500-V1 CABLE LENGTH ATX Cable 1x 600mm EPS Cable 1x 600mm PCIe Cable 1x 550mm, 700mm SATA / Four-Pin Peripheral Cable 1x 450mm(s), 600mm(s), 750mm(s), 900mm(m), 1050mm(m) AC Power 1x 1500mm (m) Modular Cable Type No CONNECTOR QUANTITY 24 Pin ATX 1x EPS (CPU) 1x 8pin (4+4) PCIe 2x8pin(6+2) SATA 6x Four-Pin Peripheral 3x Floppy 1x POWER SPECS AC Input 110-240 VAC, 7-3A, 60/50 Hz Rail +3.3V Max Output 20A 100W Rail +5V Max Output 20A 100W Rail +12V Max Output 41.6A 499.2W 500W Rail +5Vsb Max Output 2.5A 3.6W Rail -12V Max Output 0.3A 12.5W Total 500W ADDITIONAL DETAILS Operating Temperature 0 o to 40 o C Japanese Capacitors Main ECO Mode No MTBF 100,000 Hours Approvals TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement Fan Size / Bearing 120mm Sleeve Bearing

MPN 100-GD-0600-V1 CABLE LENGTH ATX Cable 1x 600mm EPS Cable 1x 600mm PCIe Cable 2x 550mm SATA / Four-Pin Peripheral Cable 1x 450mm(s), 600mm(s), 750mm(s), 900mm(m), 1050mm(m) AC Power 1x 1500mm (m) Modular Cable Type No CONNECTOR QUANTITY 24 Pin ATX 1x EPS (CPU) 1x 8pin (4+4) PCIe 2x8pin(6+2) SATA 6x Four-Pin Peripheral 3x Floppy 1x POWER SPECS AC Input 110-240 VAC, 8-4A, 60/50 Hz Rail +3.3V Max Output 20A 100W Rail +5V Max Output 20A 100W Rail +12V Max Output 50A 600W 600W Rail +5Vsb Max Output 2.5A 3.6W Rail -12V Max Output 0.3A 12.5W Total 600W ADDITIONAL DETAILS Operating Temperature 0 o to 40 o C Japanese Capacitors Main ECO Mode No MTBF 100,000 Hours Approvals TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement Fan Size / Bearing 120mm Sleeve Bearing

MPN 100-BR-0450-K1 CABLE LENGTH ATX CABLE 1x 550mm EPS CABLE 1x 600mm PCIE CABLE 1x 550mm, 670mm SATA CABLE 2x 450mm, 570mm, 690mm FOUR-PIN PERIPHERAL CABLE 1x 450mm, 570mm, 690mm + 810mm (Floppy) AC POWER 1x 1200mm (m) MODULAR CABLE TYPE No CONNECTOR QUANTITY 24 PIN ATX 1x EPS (CPU) 1x 8pin (4+4) PCIE 2x 8pin (6+2) SATA 6x FOUR-PIN PERIPHERAL 3x FLOPPY 1x POWER SPECS AC Input 100 - 240 VAC, 8/4A, 50 - 60 Hz Rail: +3.3V/Max Output: 20A/120W Rail: +5V/Max Output: 20A/120W Rail: +12V/Max Output: 37.5A/ 450W/ 450W Rail: +5Vsb/Max Output: 3A/ 15W Rail: -12V/Max Output: 0.3A/ 3.6W Total 450W at +30C OPERATING TEMPERATURE 0 o to 30 o C JAPANESE CAPACITORS No ECO MODE No MTBF 100,000 Hours APPROVALS TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement FAN SIZE / BEARING 120mm Long Sleeve Bearing

MPN PA-7B1BB-US Inside the Box NZXT C750 Bronze PSU 1 24-pin ATX power (550mm) 1 4+4-Pin CPU Power Cables 2 6+2-pin PCIe Power Cable 3 SATA Cable 2 Peripherals Cable 1 6-32 Screws 4 Key Specs Material(s) Steel, PCB and plastic Compliance Standard ATX12V v2.4 / EPS12V v2.92 AC Input Rating 10A/115V5A/230V 47Hz - 63Hz DC Output Rating Voltage +3.3V / +5V / +5VSB /+12V / -12V Max Load 20A / 20A / 2.5A / 62.5A / 0.3A Voltage Regulation +/-5% / +/-5% / +/-5% / +/-5% / +/-10% Ripple and Noise less than 50 mV p-p / less than 50 mV p-p / less than 50 mV p-p / less than 120 mV p-p / less than 120 mV p-p Output Power (watt) 120 / 120 / 12.5 / 750 / 3.6 Total 750 Fan Specs Dimensions 120 x 120 x 25 (mm) Speed 2400 +/-10% RPM Airflow 72.90 CFM Noise Less than 44 dBA Bearing FDB (Fluid Dynamic Bearing) Energy Efficiency Rating 80 Plus Bronze 10% loading 82% 20% loading 83% 50% loading 87% 100% loading 83% Operation PF Correction Active at 0.96 MTBF 100,000 hours Operation Temperature 0 to 40 o C Output Connector(s) 24-pin ATX Power 1 4+4-pin CPU power 2 6+2-pin PCIe power 6 SATA Power 6 Peripherals 3 General Regulations and Certifications (EMC and Safety) CB / CE / FCC / TUV / cTUV-SUDus / China CCC / Taiwan BSMI R33245/ Australia RCM / EAC / UKCA / WEEE / Hazardous Materials RoHS and China RoHS

MPN 220-P5-1000-X1 CABLE LENGTH ATX Cable 1x 600mm (m) EPS Cable 2x 700mm (m) PCIe Cable 3x 700mm, 850mm 2x 700mm SATA Cable 3x 550mm, 650mm, 750mm, 850mm (m) Four-Pin Peripheral Cable 1x 550mm, 650mm, 750mm, 850mm (m) Floppy Adapter 1x 100mm AC Power 1x 1500mm (m) Modular Cable Type Full CONNECTOR QUANTITY 24 Pin ATX 1x 24pin EPS (CPU) 2x 8pin (4+4) PCIe 8x 8pin (6+2) SATA 12x Four-Pin Peripheral 4x Floppy 1x POWER SPECS AC Input 100-240V, 15-8A, 60/50 Hz Rail +3.3V / +5V / +12V / +5Vsb / -12V Max Output 24A / 24A / 83.3A / 3A / 0.5A 120W / 120W / 999.6W / 15W / 6W Total 1000W at +50C ADDITIONAL DETAILS Operating Temperature 0 o to 50 o C Japanese Capacitors 100% ECO Mode Yes MTBF 100,000 Hours Approvals TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement Fan Size / Bearing 135mm Fluid Dynamic Bearing

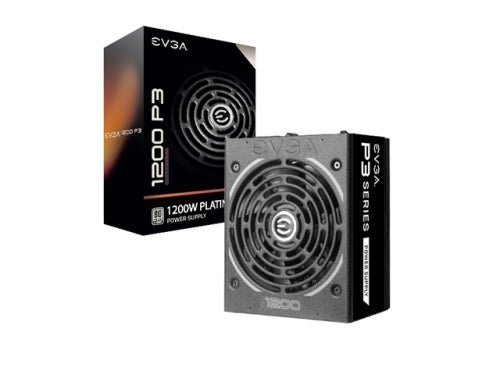

MPN 220-P3-1200-X1 CABLE LENGTH ATX Cable 1x 600mm (m) EPS Cable 2x 750mm (m) PCIe Cable 2x 750mm, 900mm (m) 4x 750mm (m) SATA Cable 4x 550mm, 650mm, 750mm (m) Four-Pin Peripheral Cable 2x 550mm, 650mm, 750mm, 850mm (m) Floppy Adapter 1x 100mm AC Power 1x 1500mm (m) Modular Cable Type Full CONNECTOR QUANTITY 24 Pin ATX 1x EPS (CPU) 2x 8pin (4+4) PCIe 8x 8pin (6+2) SATA 12x Four-Pin Peripheral 8x Floppy 1x POWER SPECS AC Input 100-240V, 14-7A, 60/50Hz Rail +3.3V / +5V / +12V / +5Vsb / -12V Max Output 25A / 25A / 100A / 3A / 0.5A 125W / 125W / 1200W / 15W /6W Total 1200W ADDITIONAL DETAILS Operating Temperature 0 o to 50 o C Japanese Capacitors 100% ECO Mode Yes MTBF 100,000 Hours Approvals TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement Fan Size / Bearing 135mm Fluid Dynamic Bearing

MPN 220-G6-1000-X1 CABLE LENGTH ATX Cable 1x 600mm (m) EPS Cable 2x 700mm (m) PCIe Cable 2x 700mm, 3x 700mm, 820mm (m) SATA Cable 4x 550mm, 650mm, 750mm (m) Four-Pin Peripheral Cable 1x 550mm, 650mm, 750mm, 850mm (m) Floppy Adapter 1x 100mm AC Power 1x 1500mm (m) Modular Cable Type Full CONNECTOR QUANTITY 24 Pin ATX 1x 24pin EPS (CPU) 2x 8pin (4+4) PCIe 8x 8pin (6+2) SATA 12x Four-Pin Peripheral 4x Floppy 1x POWER SPECS AC Input 100-240V, 13-6.5A, 60/50Hz Rail / Max Output +3.3V / 25A / 125W +5V / 25A / 125W +12V / 83.3A / 1000W +5Vsb / 3A / 15W -12V / 0.5A / 6W Operating Temperature 0 o to 50 o C Japanese Capacitors 100% ECO Mode Yes MTBF 100,000 Hours Approvals TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement Fan Size / Bearing 135mm Fluid Dynamic Bearing

MPN 220-GT-1000-X1 CABLE LENGTH ATX Cable 1x 600mm (m) EPS Cable 2x 700mm (m) PCIe Cable 2x 700mm (m), 3x 700mm, 850mm (m) SATA Cable 4x 550mm, 650mm, 750mm (m) Four-Pin Peripheral Cable 1x 550mm, 650mm, 750mm (m) Floppy Adapter 1x Molex to FDD Adapter AC Power 1x 1500mm (m) Modular Cable Type Full Molex to FDD 1x CONNECTOR QUANTITY 24 Pin ATX 1x EPS (CPU) 2x 8pin (4+4) PCIe 8x 8pin(6+2) SATA 12x Four-Pin Peripheral 4x Floppy 1x POWER SPECS AC Input 100-240V, 12-6A, 60/50Hz Rail +3.3V / +5V / +12V / +5Vsb / -12V Max Output 25A / 25A / 83.3A / 3A/ 0.5A 130W/ 130W / 1000W / 15W /6W Total 1000W ADDITIONAL DETAILS Operating Temperature 0 O to 50 O C Japanese Capacitors 100% ECO Mode Yes MTBF 100,000 Hours Approvals TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement Fan Size / Bearing 135mm Fluid Dynamic Bearing

MPN SP750 Power supply design Full modular Color Black Material Steel / brush aluminum housing Form factor SFX Certification 80 PLUS Gold Max. DC Output 750W Combined +3.3V and +5V 100W Combined +12V 744W Input Voltage 90 to 264 Vrms Input Frequency Range 47Hz - 63 Hz PFC Active PFC (PF)>0.90 at full load Efficiency 91.94 to 89.09 at 20% to 100% Load Connectors 1 x 24 / 20-Pin motherboard connector (300mm) x 1pcs 2 x 8 / 4-Pin EPS / ATX 12V connector (400mm) x 2pcs 1 x 8 / 6-Pin PCIe connector (450mm-100mm_6-Pin PCIe Connector) x 1pcs 1 x 8 / 6-Pin PCIe connector (450mm) x 1pcs 8 x SATA connector (100mm-115mm-115mm-115mm) x 2pcs 2 x 4-Pin Peripheral connector (100mm-115mm) x 1pcs Noise Level 17.6 - 31.8 dBA

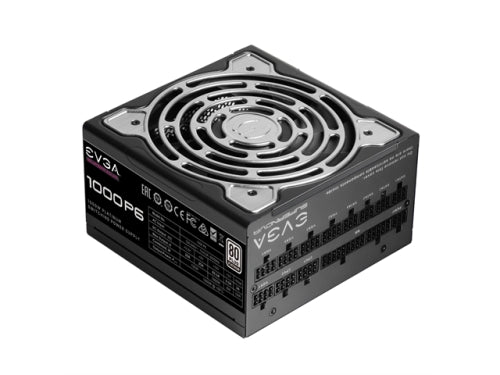

MPN 220-P6-1000-X1 CABLE LENGTH ATX Cable 1x 600mm (m) EPS Cable 2x 700mm (m) PCIe Cable 2x 700mm, 3x 700mm, 820mm (m) SATA Cable 4x 550mm, 650mm, 750mm (m) Four-Pin Peripheral Cable 1x 550mm, 650mm, 750mm, 850mm (m) Floppy Adapter 1x 100mm AC Power 1x 1500mm (m) Modular Cable Type Full CONNECTOR QUANTITY 24 Pin ATX 1x 24pin EPS (CPU) 2x 8pin (4+4) PCIe 8x 8pin (6+2) SATA 12x Four-Pin Peripheral 4x Floppy 1x POWER SPECS AC Input 100-240V, 13-6.5A, 60/50Hz Rail / Max Output +3.3V / 25A / 125W +5V / 25A / 125W +12V / 83.3A / 1000W +5Vsb / 3A / 15W -12V / 0.5A / 6W Total 1000W ADDITIONAL DETAILS Operating Temperature 0 o to 50 o C Japanese Capacitors 100% ECO Mode Yes MTBF 100,000 Hours Approvals TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement Fan Size / Bearing 135mm Fluid Dynamic Bearing

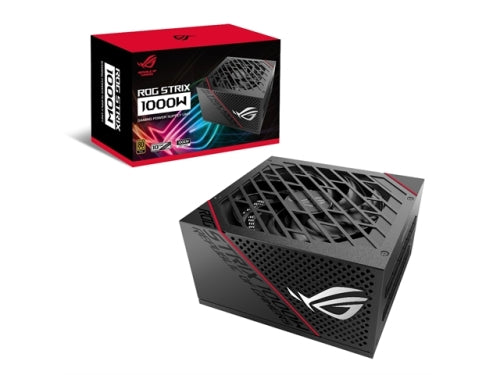

MPN ROG-STRIX-1000G Intel Specification ATX12V Efficiency 80Plus Gold Protection Features OPP/OVP/SCP/OCP/OTP Hazardous Materials ROHS AC Input Range 100-240Vac Thermal Features ROG Thermal Solution DC Output Voltage +3.3V +5V +12V -12V +5Vsb Maximum Load 25A 25A 83A 0.3A 3A Total Output 1000W Connectors MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 6+2-pin x 6 SATA x 8 PERIPHERAL x 6 Package Contents Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable 1000mm x 2 (1000mm) PCI-E Cable x 3 (675mm) SATA Cable x 2 (810mm/860mm) Peripheral x 2 (450mm) ROG badge x 2 ROG logo magnet x 1 ROG label x 3 -MB/ CPU/ PCI-E cables come with embedded capacitors in the middle.

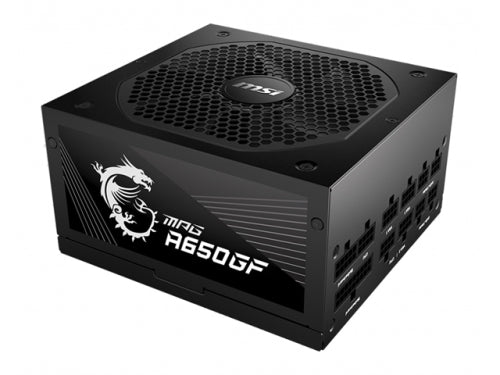

MPN A650GF PRODUCT NAME MPG A650GF PSU FORM FACTOR ATX POWER WATT 650W INPUT VOLTAGE 100-240 Vac INPUT CURRENT 115Vac/10.0A max. 230Vac/5.0A max. INPUT FREQUENCY 47Hz - 63Hz EFFICIENCY Up to 90% (80 Plus Gold) FAN TYPE FDB Bearing FAN SIZE 140 mm PFC TYPE Active PFC PROTECTION OCP / OVP / OPP / OTP / SCP / UVP

MPN 220-GT-0750-Y1 CABLE LENGTH ATX Cable 1x 600mm (m) EPS Cable 2x 700mm (m) PCIe Cable 2x 700mm, 850mm (m) SATA Cable 2x 550mm, 650mm, 750mm (m) Four-Pin Peripheral Cable 1x 550mm, 650mm, 750mm (m) Floppy Adapter 1x Molex to FDD Adapter AC Power 1500mm (m) Modular Cable Type Full Molex to FDD 1x CONNECTOR QUANTITY 24 Pin ATX 1x EPS (CPU) 2x 8pin(4+4) PCIe 4x 8pin(6+2) SATA 6x Four-Pin Peripheral 3x Floppy 1x POWER SPECS AC Input 100-240V, 10-5A, 60/50 Hz Rail/ Max output +3.3V/ 20A-130W +5V/ 20A-130W +12V/ 62.5A-750W +5Vsb/ 3A-15W -12V/ 0.3A-3.6W Total 750Wat 50 o C ADDITIONAL DETAILS Operating Temperature 0 o to 50 o C Japanese Capacitors 100% ECO Mode Auto MTBF 100,000 Hours Approvals TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement Fan Size / Bearing 135mm Fluid Dynamic Bearing

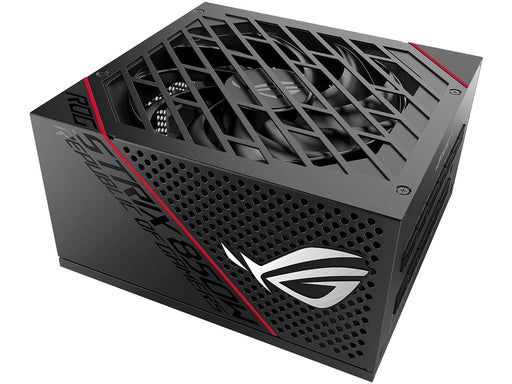

MPN ROG-STRIX-850G Intel Specification ATX 12V Efficiency 80Plus Gold Protection Features OPP/OVP/SCP/OCP/OTP Hazardous Materials ROHS AC Input Range 100-240Vac Thermal Features ROG Thermal Solution Fan Size 135 mm DC Output Voltage +3.3V +5V +12V -12V +5Vsb Maximum Load 20A 20A 70A 0.3A 3A Combined Load 100W 100W 840W 3.6W 15W Total Output 850W Connectors MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 6+2-pin x 6 SATA x 8 PERIPHERAL x 6 Package Contents Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable 1000mm x 2 (1000mm) PCI-E Cable x 3 (675mm) SATA Cable x 2 (810mm/860mm) Peripheral x 2 (450mm) Join the ROG badge x 2 ROG logo magnet x 1 ROG label x 3 Note: MB/ CPU/ PCI-E cables come with embedded capacitors in the middle.

MPN 220-B5-0850-V1 CABLE LENGTH ATX Cable 1x 600mm (m) EPS Cable 2x 600mm (m) PCIe Cable 3x 550mm, 700mm (m) SATA Cable 3x 500mm, 600mm, 700mm (m) Four-Pin Peripheral Cable 1x 500mm, 600mm, 700mm (m) Floppy Adapter 1x Molex to FDD Adapter AC Power 1x 1500mm (m) Modular Cable Type Full Molex to FDD 1x CONNECTOR QUANTITY 24 Pin ATX 1x 24pin (20+4) EPS (CPU) 2x 8pin (4+4) PCIe 6x 8pin (6+2) SATA 9x Four-Pin Peripheral 3x Floppy 1x POWER SPECS AC Input 100-240V-, 10-5A, 60/50Hz Rail/Max Output +3.3V/24A, 120W +5V/24A, 120W +12V/70.8A, 850W, 850W +5Vsb/3.0A, 15W -12V/0.5A, 6W Total 850W ADDITIONAL DETAILS Operating Temperature 0 o to 50 o C Japanese Capacitors 100% ECO Mode Yes MTBF 100,000 Hours Approvals TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement Fan Size / Bearing 135mm Fluid Dynamic Bearing

MPN 100-W1-0600-K1 CABLE LENGTH ATX Cable 1x 550mm EPS Cable 1x 600mm PCIe Cable 1x 550mm, 670mm SATA Cable 2x 450mm, 570mm, 690mm Four-Pin Peripheral Cable 1x 450mm, 570mm, 690mm (f) Floppy Adapter 1x 810mm AC Power 1x 1200mm (m) Modular Cable Type No CONNECTOR QUANTITY 24 Pin ATX 1x EPS (CPU) 1x 8pin (4+4) PCIe 2x 8pin (6+2) SATA 6x Four-Pin Peripheral 3x Floppy 1x INPUT Input Voltage 100 - 240 VAC AC Input 10-5A Input Frequency Range 50 - 60 Hz Efficiency 80% Typical OUTPUT Rail / Max output : +3.3V / 24A / 130W +5V / 20A / 130W +12V / 49A / 49A / 588W -12V / 0.3A / 3.6W +5Vsb / 3A / 15W Total 600W at +40C DDITIONAL DETAILS Operating Temperature 0 o to 40 o C Noise Level 24-26dBA Typical Japanese Capacitors No ECO Mode No MTBF 100,000 Hours Approvals TUV, cUL, UL, CE, FCC, RCM, WEEE, RoHS Fan Size / Bearing 120mm Sleeve Bearing

MPN 100-GD-0700-V1 CABLE LENGTH ATX Cable 1x 600mm EPS Cable 1x 600mm PCIe Cable 2x 550mm, 700mm SATA / Four-Pin Peripheral Cable 1x 450mm(s), 600mm(s), 750mm(s), 900mm(m), 1050mm(m) AC Power 1x 1500mm (m) Modular Cable Type No CONNECTOR QUANTITY 24 Pin ATX 1x EPS (CPU) 1x 8pin (4+4) PCIe 4x8pin(6+2) SATA 6x Four-Pin Peripheral 3x Floppy 1x POWER SPECS AC Input 110-240 VAC, 9.5-4.5A, 60/50 Hz Rail +3.3V Max Output 20A 100W Rail +5V Max Output 20A 100W Rail +12V Max Output 58.3A 699.6W 699.6W Rail +5Vsb Max Output 2.5A 12.5W Rail -12V Max Output 0.3A 3.6W Total 700W ADDITIONAL DETAILS Operating Temperature 0 o to 40 o C Japanese Capacitors Main ECO Mode No MTBF 100,000 Hours Approvals TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement Fan Size / Bearing 120mm Sleeve Bearing

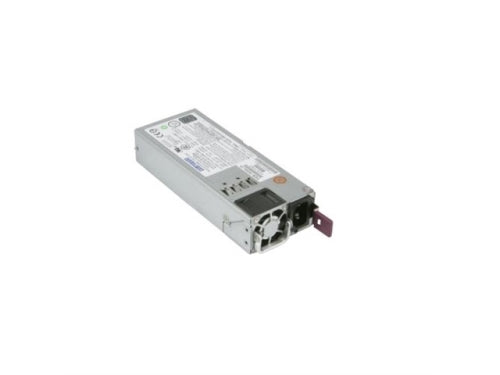

MPN PWS-1K04A-1R TOTAL POWER OUTPUT 1000W TYPE Module TYPE OF POWER SUPPLY Power Supply FORM FACTOR 1U +5V N/A +12V 83A (1000W) +3.3V N/A 5V STANDBY 12Vsb at 2.1A INPUT VOLTAGE RANGE 100-127Vac, 200-240VAC INPUT FREQUENCY RANGE 50-60Hz INPUT CURRENT RANGE 100-127VAC / 9.8 - 7A l 200-240VAC / 7 - 5A OUTPUT TYPE Gold Finger 8PIN / 4PIN (12V) CONNECTOR N/A PFC Yes PMBUS Yes ENERGY EFFICIENCY 96% Peak 80 PLUS CERTIFICATION 80 Plus Titanium PRODUCT ENVIRONMENTAL COMPLIANCE RoHS and REACH compliant, details available upon request PRODUCT RESOURCES No Item Dimension (L"xW"xH") NA Weight 4.00 LB

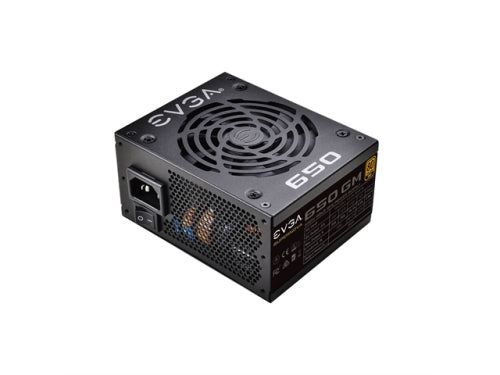

MPN 123-GM-0650-Y1 CABLE LENGTH ATX CABLE 1x 300mm (m) EPS CABLE 1x 400mm (m) PCIE CABLE 1x 400mm, 510mm (m) / 1x 510mm, 620mm (m) SATA CABLE 2x 300mm, 410mm,520mm (m) FOUR-PIN PERIPHERAL CABLE 1x 300mm, 410mm, 520mm, 630mm (m) FLOPPY ADAPTER 1x 100mm (m) AC POWER 1x 1500mm (m) MODULAR CABLE TYPE Full MOLEX TO FDD 1x CONNECTOR QUANTITY 24 PIN ATX 1x EPS (CPU) 1x 8pin (4+4) PCIE 4x 8pin (6+2) SATA 6x FOUR-PIN PERIPHERAL 4x FLOPPY 1x POWER SPECS AC Input 100-240 VAC, 9 - 4.5A, 50 - 60 Hz Rail +3.3V Max Output 20A 100W Rail +5V Max Output 20A 100W Rail +12V Max Output 54.1A 649.2W 649.2W Rail +5Vsb Max Output 2.5A 12.5W Rail -12V Max Output 0.3A 3.6W Total 650W at 40 o C ADDITIONAL DETAILS OPERATING TEMPERATURE 0 o to 40 o C JAPANESE CAPACITORS 100% ECO MODE Auto MTBF 100,000 Hours APPROVALS TUV, CB, CE, FCC, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement FAN SIZE / BEARING 92mm Double Ball Bearing Item Dimension (L"xW"xH") 11 x 4 x 8 Weight 3.30 LB

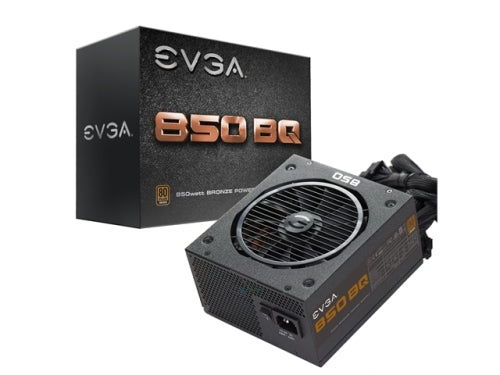

MPN 110-BQ-0850-V1 Cable Length ATX Cable: 1x 550mm EPS Cable: 2x 600mm PCIE Cable: 3x 550mm, 700mm SATA Cable: 1x500mm, 650mm, 800mm, 950mm, 2x 500mm, 650mm, 800mm Four-Pin Peripheral Cable: 1x 550mm, 700mm, 1x 550mm, 700mm, 850mm + 1000mm (Floppy) Floppy Adapter: 1 AC Power: 1x 1800mm Modular Cable Type: Yes 24 Pin ATX 1 EPS (CPU) 2x8pin(4+4) PCIE 3x 8pin (6+2), 3x 6pin SATA 10 Four-Pin Peripheral 5 Floppy 1 Input Voltage 100 - 240 VAC AC Input 12A Input Frequency Range 50 - 60 Hz Efficiency 85% Typical Operating Temperature 0 o to 40 o C Japanese Capacitors Yes ECO Mode No MTBF 100,000 Hours Approvals TUV, CE, FCC, cTUVus, BSMI, CCC, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement Fan Size / Bearing 140mm Teflon Nano-Steel Bearing

MPN 100-N1-0550-L1 ATX CABLE 1x 550mm EPS CABLE 1x 600mm PCIE Cable 1x 550mm, 670mm SATA CABLE 2x 450mm, 570mm, 690mm FOUR-PIN PERIPHERAL CABLE 1x 450mm, 570mm, 690mm (f) FLOPPY ADAPTER 1x 120mm AC POWER 1x 1200mm (m) MODULAR CABLE TYPE No 24 PIN ATX 1x EPS (CPU) 1x 8pin (4+4) PCIE 2x 8pin (6+2) SATA 6x FOUR-PIN PERIPHERAL 3x FLOPPY 1x AC Input 110 - 240 VAC, 8-4A, 50 - 60 Hz Total 550W at +25C OPERATING TEMPERATURE 0 O to 25 O C JAPANESE CAPACITORS No ECO MODE No APPROVALS TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement FAN SIZE / BEARING 120mm Sleeve Bearing
