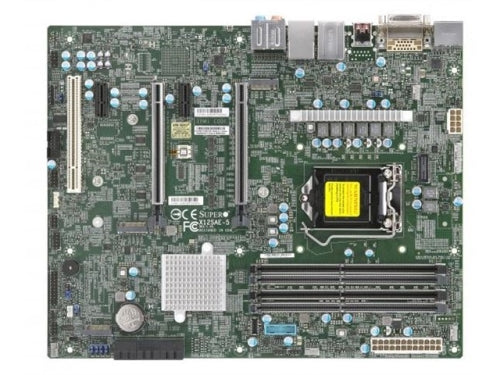

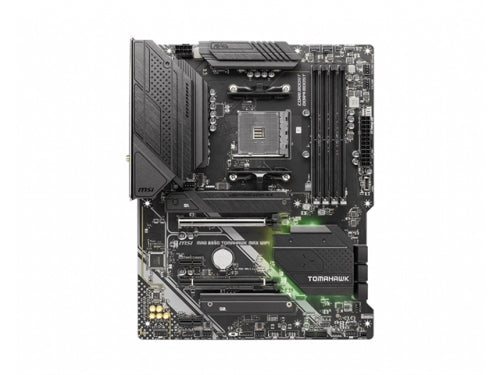

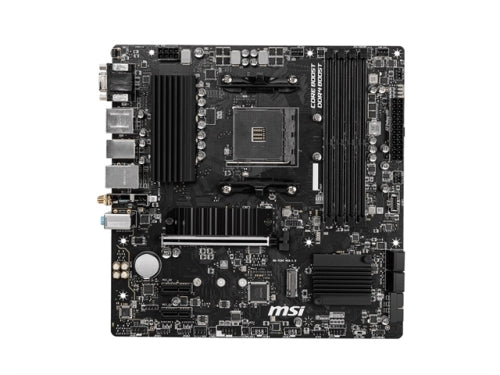

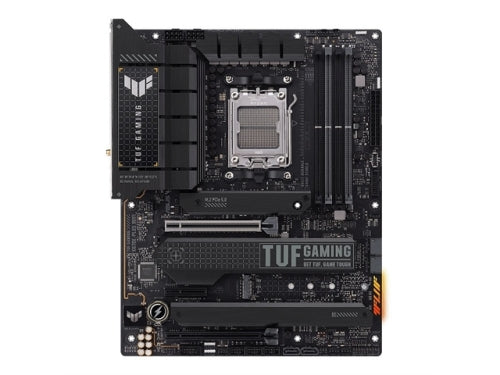

Motherboards

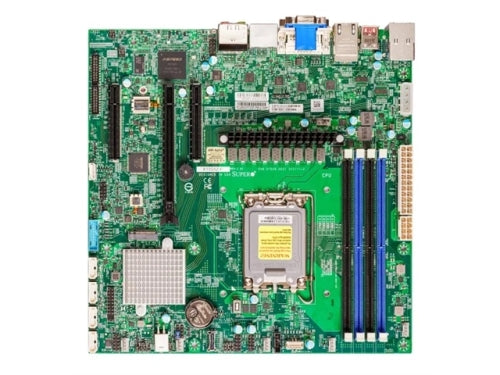

Physical Stats Form Factor Micro-ATX Processor CPU 12th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor Single Socket LGA-1700 supported Core Up to 16 cores System Memory Memory Capacity 4 DIMM slots Up to 128GB UDIMM, DDR5-4400MHz Supports up to 128GB of DDR5 UDIMM with speeds of up to 4400MT/s with one DIMM, or 4000MT/s with two DIMM single rank, or 3600MT/s with two DIMM dual rank in four memory slots Memory Type 4400/4000/3600MHz DIMM Sizes 4GB, 8GB, 16GB, 32GB Memory Voltage 1.1V On-Board Devices Chipset Intel Q670E SATA Intel Q670E controller for 4 SATA3 (6 Gbps) ports RAID 0,1,5,10 Audio ALC 888S HD Audio Network Controllers Dual LAN with Intel Ethernet i225LM Input / Output SATA 4 SATA3 (6Gbps) port(s) USB 2 USB 2 port(s) (2 via header) 6 USB 3.1 Gen2 port(s) (2 via header 4 rear type A) 2 USB 3.1 Gen1 port(s) (2 via header) Video Output 1 DVI - D port(s), 1 HDMI 2.0b port(s), 2 DP (DisplayPort) port(s) Serial Port 4 COM Port(s) (2 header RS232/422/485 2 header RS232) TPM TPM Header and Chip both Expansion Slots PCI-E 1 PCI-E 5.0 x16, 2 PCI-E 4.0 x4 (in x8 slot) M.2 M.2 Interface: 1 PCI-E 4.0 x4 Form Factor: 2280/22110 Key: M-Key System BIOS BIOS Type AMI UEFI BIOS Features ACPI 6.1 SMBIOS 3.0 or later PCI FW 3.0 UEFI 2.7 RTC (Real Time Clock) Wakeup Management Software SuperDoctor 5, AMT, vPro System Management Software Wake-on-LAN, Watchdog Power Configurations ACPI Power Management, ATX Power connector, +12V DC Power Input PC Health Monitoring Voltage VBAT, 4 fans with tachometer monitoring, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, +1.35V LED Power LED Temperature Monitoring for CPU and chassis environment CPU thermal trip support Other Features RoHS, M.2 NGFF connector, Chassis intrusion detection, ATX Power connector, ACPI power management, 12V DC or ATX Power Source FAN 5x 4-pin fan headers (up to 5 fans) Operating Environment Operating Temperature Range 0 o C - 60 o C (32 o F - 140 o F) Non-Operating Temperature Range -40 o C - 85 o C (-40 o F 185 o F) Operating Relative Humidity Range 10% - 85% (non-condensing) Non Operating Relative Humidity Range 5% - 95% (non-condensing)

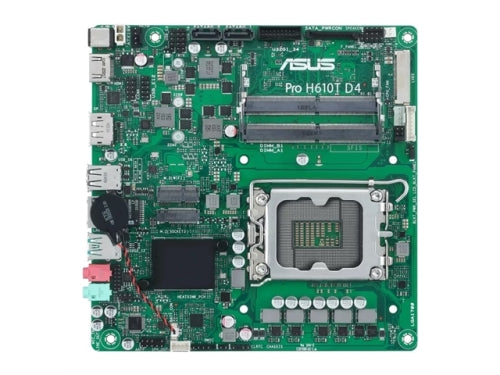

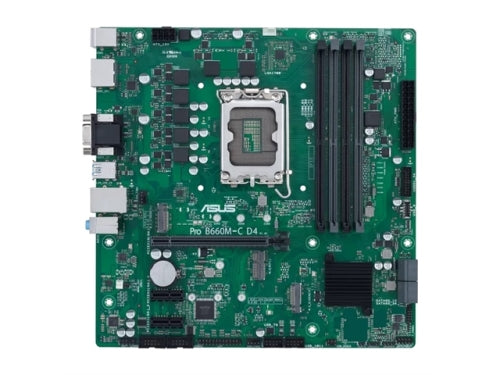

CPU Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Refer to www.asus.com for CPU support list. Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel H610 Chipset Memory 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. Graphics 1 x DisplayPort 1 x D-Sub port 1 x HDMI port Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K at 60Hz as specified in DisplayPort 1.4. Supports 4K at 60Hz as specified in HDMI 2.1. Expansion Slots Intel 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel H610 Chipset 2 x PCIe 3.0 x1 slots 1 x PCI slot Storage Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports Ethernet 1 x Intel 1Gb Ethernet ASUS LANGuard Wireless and Bluetooth M.2 slot only (Key E, CNVi and PCIe) Wi-Fi module is sold separately. USB Rear USB (Total 4 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 8 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x D-Sub port 1 x HDMI port 1 x Intel 1Gb Ethernet port 3 x Audio jacks 1 x COM port 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x M.2 slot (Key E) 1 x SMBUS header 1 x Speaker header 1 x 10-1 pin System Panel header Special Features ASUS EZ DIY - Box Headers Bespoke Motherboard Design and Business Focused Features - Q-LED Core - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit - Anti-Moisture Coating - 24/7 Reliability - Overcurrent Protection TPM IC Onboard Software Features ASUS Exclusive Software IT Management software supported - ASUS Control Center Express(ACCE) BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 SSD screw package 1 x M.2 Key E screw package Installation Media 1 x Support DVD Documentation 1 x ACC Express Activation Key Card 1 x User guide Operating System Windows 11 64-bit, Windows 10 64-bit Form Factor mATX Form Factor 9.6 inch x 8.7 inch ( 24.4 cm x 22 cm ) Including below info in 600 series refreshed NPI: Supports 13th gen Intel Core TM desktop processors. BIOS update may be required to boot the 13th gen Intel Core TM desktop processors

CPU Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Note1 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Note2 Note1: Refer to www.asus.com for CPU support list. Note2: Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel H610 Chipset Memory 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Note: Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphics 1 x DisplayPort 1.4 Note2 1 x D-Sub 1 x HDMI port Note3 Note1: Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Note1: Support DisplayPort 1.4 with max. resolution of 4K60Hz. Please refer to www.intel.com for any updates. Note3: Support HDMI 2.1 with max. resolution of 4K60Hz. Please refer to www.intel.com for any updates. Expansion Slots Intel 12th Gen Processors 1 x PCIe 4.0 x16 slot Storage Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports Ethernet 1 x Realtek 1Gb Ethernet Wireless and Bluetooth M.2 slot only (Key E, CNVi and PCIe) Note: Wi-Fi module is sold separately. USB Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers Note: A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x D-Sub port 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Mono-out header(with Amp IC) 1 x SMBUS header 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU (red), DRAM (yellow), VGA (white), Boot Device (yellow green)) - Q-Slot ASUS Thermal Solution - Aluminum heatsink design Software Features ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Screw Package Installation Media 1 x Support DVD Documentation 1 x User guide Operating System Windows 11 64-bit, Windows 10 64-bit Form Factor Mini ITX Form Factor Including below info in 600 series refreshed NPI: Supports 13th gen Intel Core TM desktop processors. BIOS update may be required to boot the 13th gen Intel Core TM desktop processors

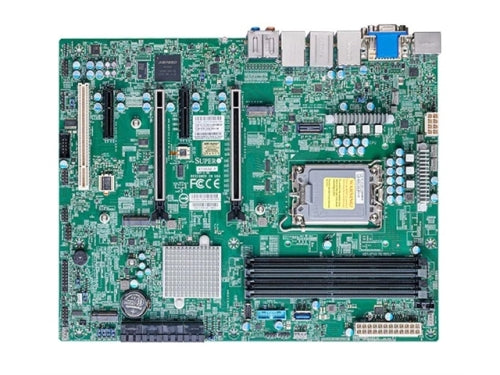

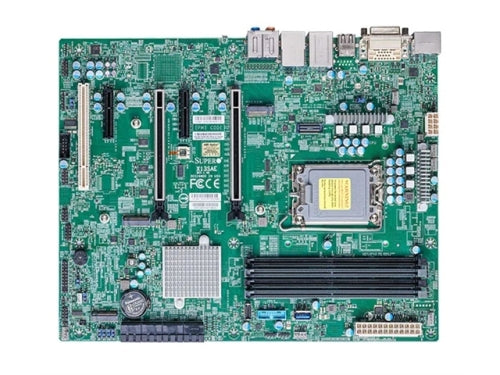

Physical Stats Form Factor ATX Processor CPU 12th Generation Intel Core i3/i5/i7/i9 Processors Single Socket LGA-1700 (Socket H5) supported, CPU TDP supports Up to 125W TDP Core Up to 16(8+8) cores System Memory Memory Capacity 4 DIMM slots 128GB ECC/non-ECC UDIMM, DDR5-4400MHz Memory Type 128GB DIMM Sizes 8GB, 16GB, 32GB Memory Voltage 1.1V On-Board Devices Chipset Intel W680 SATA Intel W680 controller for 8 SATA3 (6 Gbps) ports RAID 0,1,5,10 Audio ALC 888S HD Audio Network Controllers Single LAN with Intel PHY I219LM LAN controller Single LAN with Intel Ethernet i225V Input / Output LAN 1 RJ45 Gigabit Ethernet LAN ports 1 RJ45 2.5 Gigabit Ethernet LAN port USB 3 USB 3.2 Gen1 port(s) (2 via header 1 Vertical) 3 USB 3.2 Gen2 port(s) (3 rear type A) 2 USB 3.2 Gen2x2 port(s) (1 rear type C 1 via header) 4 USB 2 port(s) (4 via header) Video Output 1 DVI - D port(s), 1 DP 1.4a port(s), 1 HDMI 2.1 port(s) Serial Port 1 COM Port(s) (1 header) TPM 1 TPM Header Expansion Slots PCI-E 2 PCI-E 3.0 x4, 2 PCI-E 5.0 x16 slots (16/NA or 8/8) 1 - 5V PCI 32bit M.2 M.2 Interface: 3 PCI-E 4.0 x4, RAID 0, 1, 5 Form Factor: 2280 Key: M-Key System BIOS BIOS Type 256MB SPI Flash with AMI BIOS BIOS Features ACPI 6.0 Plug and Play (PnP) BIOS rescue hot keys Riser card auto-detection support SMBIOS 3.0 or later Management Software SuperDoctor 5, SUM, SSM, AMT, vPro, Watchdog System Management Software SuperDoctor 5 Power Configurations Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism, Wake-on-LAN PC Health Monitoring Voltage VBAT, System temperature, CPU temperature, 3.3V standby, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +1.8V PCH LED Power LED Catastrophic Error LED FAN 5x 4-pin fan headers (up to 5 fans) Fan speed control Overheat LED indication Other Features CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector Operating Environment Operating Temperature Range 0 o C - 50 o C (32 o F - 122 o F) Non-Operating Temperature Range -20 o C - 60 o C (-4 o F - 140 o F)

Physical Stats Form Factor ATX Dimension 12.1" x 10" (30.73cm x 25.4cm) Processor CPU 3rd Gen Intel Xeon Scalable processors Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP Core Up to 40 cores System Memory Memory Capacity 8 DIMM slots Up to 2TB Intel Optane Persistent Memory 200 Series Up to 2TB ECC LRDIMM, DDR4-3200MHz Up to 2TB ECC RDIMM, DDR4-3200MHz Memory Type ECC , DDR4 LRDIMM, RDIMM DIMM Sizes 8GB, 16GB, 32GB, 64GB, 128GB, 256GB Memory Voltage 1.2V Error Detection Corrects single-bit errors On-Board Devices Chipset Intel C621A SATA Intel C621A controller for 10 SATA3 (6 Gbps) ports RAID 0,1,5,10 IPMI ASPEED AST2600 BMC Graphics ASPEED AST2600 BMC Network Controllers Dual LAN with 10GBase-T with Intel X550 Input / Output LAN 2 RJ45 10 Gigabit Ethernet LAN ports USB 4 USB 2.0 port(s) (2 rear 2 via header) 5 USB 3.2 Gen1 port(s) (2 via header 2 rear 1 type A) Video Output 1 VGA D-Sub Connector port(s) Serial Port 1 COM Port(s) (1 header) DOM 2 SATA DOM (Disk on Module) power connector support TPM 1 TPM Header Expansion Slots PCI-E 2 PCI-E 4.0 x16, 1 PCI-E 4.0 x8 (in x16 slot), 2 PCI-E 4.0 x8 M.2 M.2 Interface: 1 SATA/PCI-E 3.0 x4 Form Factor: 2280/22110 Key: M-Key System BIOS BIOS Type AMI UEFI BIOS Features ACPI 6.2 SMBIOS 3.0 or later UEFI 2.7 Management Software SuperDoctor 5, SUM, KVM with dedicated LAN, SPM, Intel Node Manager, SSM, IPMI2.0, Watchdog System Management Software IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support Power Configurations Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection PC Health Monitoring Voltage VBAT, System temperature, Monitors CPU voltages, HT, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, 7-fan status LED UID/Remote UID BMC/IPMI Heartbeat LED Suspend static indicator LED CPU / System Overheat LED Temperature CPU thermal trip support PECI FAN 7x 4-pin fan headers (up to 7 fans) System level control PWM fan speed control Fan speed control Overheat LED indication Other Features UID, RoHS, Dual Cooling Zones, Chassis intrusion detection, ATX Power connector, ACPI power management, RoT, NCSI header Operating Environment Operating Temperature Range 0 o C - 50 o C (32 o F - 122 o F) Non-Operating Temperature Range -20 o C - 60 o C (-4 o F - 140 o F) Operating Relative Humidity Range 10% - 85% (non-condensing) Non Operating Relative Humidity Range 10% - 95% (non-condensing)

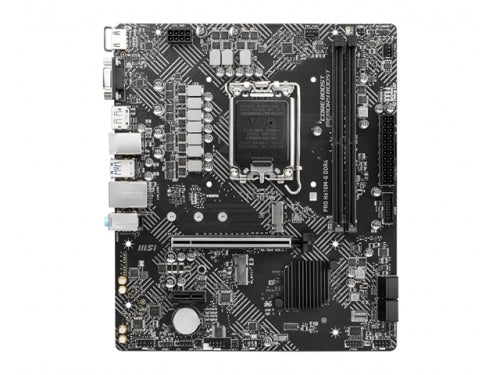

CPU (MAX SUPPORT) i9 SOCKET 1700 CHIPSET Intel H610 Chipset DDR4 MEMORY 3200(MAX) / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz MEMORY CHANNEL Dual DIMM SLOTS 2 MAX MEMORY (GB) 64 PCI-E X16 1 SATAIII 4 PCI-E X1 1 M.2 SLOT 1 TPM (HEADER) 1 LAN 1x Intel I219V Gigabit LAN controller USB 3.2 PORTS (FRONT) 2(Gen 1, Type A) USB 3.2 PORTS (REAR) 2(Gen 1, Type A) USB 2.0 PORTS (FRONT) 2 USB 2.0 PORTS (REAR) 4 AUDIO PORTS (REAR) Realtek ALC892/ ALC897 Codec DISPLAYPORT 1 VGA 1 HDMI 1 DIRECTX 12 FORM FACTOR M-ATX OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit

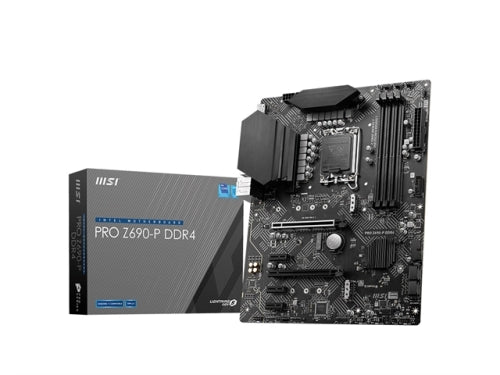

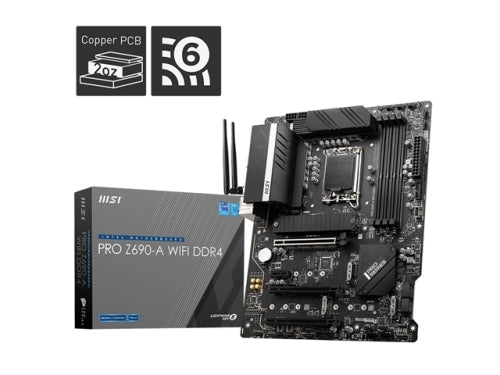

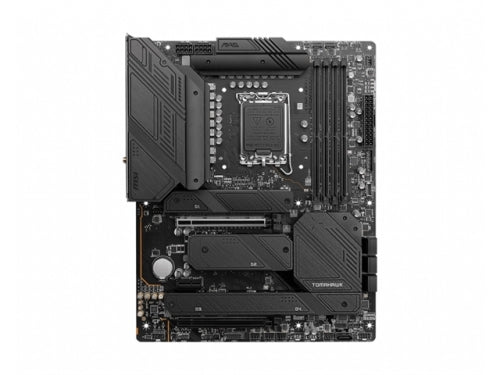

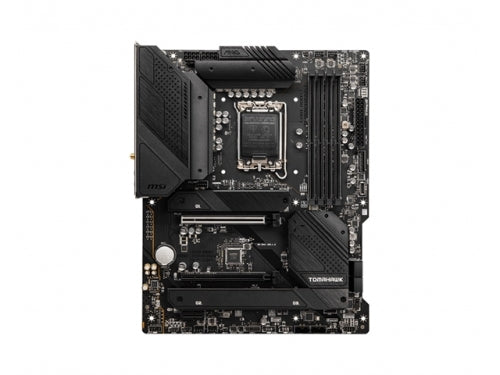

CPU (MAX SUPPORT) i9 SOCKET 1700 CHIPSET Intel Z690 Chipset DDR4 MEMORY 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz MEMORY CHANNEL Dual DIMM SLOTS 4 MAX MEMORY (GB) 128 PCI-E X16 2 PCI-E X1 3 SATAIII 4 M.2 SLOT 2 RAID 0/1/5/10 TPM (HEADER) 1 LAN Realtek RTL8125BG 2.5Gbps LAN controller USB 3.2 PORTS (FRONT) 4(Gen 1, Type A) USB 3.2 PORTS (REAR) 1(Gen 2x2, Type C), 4(Gen 1, Type A) USB 2.0 PORTS (FRONT) 4 USB 2.0 PORTS (REAR) 2 AUDIO PORTS (REAR) Realtek ALC897 Codec DISPLAYPORT 1 HDMI 1 DIRECTX 12 FORM FACTOR ATX CROSSFIRE Y OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit

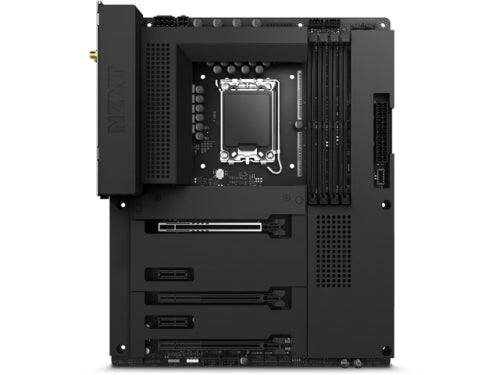

CPU Intel Socket LGA1700 for 12th Gen Intel Core TM , Pentium Gold and Celeron Processors Note1 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Note2 Note1: Refer to www.asus.com for CPU support list. Note2: Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel Z690 Chipset Memory 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory Note Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II Note: Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. Graphics 1 x DisplayPort Note2 1 x HDMI port Note3 Note1: Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Note2: Supports max. 4K at 60Hz as specified in DisplayPort 1.4 Note3: Supports 4K at 60Hz as specified in HDMI 2.1. Note4: VGA resolution support depends on processors or graphic cards resolution. Expansion Slots Intel 12th Gen Processors Note1 1 x PCIe 5.0 x16 slot Intel Z690 Chipset Note2 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x4 slot 2 x PCIe 3.0 x1 slots Note1: Please check PCIe bifurcation table in support site. Note2: Supports Intel Optane Memory H Series on PCH-attached PCIe slot Storage Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Note1 Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12th Gen processors support PCIe 4.0 x4 mode Intel Z690 Chipset Note2 M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 and SATA modes) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports Note1: Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. Note2: Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. Ethernet 1 x Intel 2.5Gb Ethernet TUF LANGuard Wireless and Bluetooth Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Note1 Bluetooth v5.2 hardware ready Note2 Note1: WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. Note2: Bluetooth v5.2 function will be ready in Windows 11 or later. USB Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio Cover Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt TM header Special Features SUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU (red), DRAM (yellow), VGA (white), Boot Device (yellow green)) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers Software Features ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 2 x M.2 Rubber Packages 1 x M.2 SSD screw package 1 x TUF GAMING sticker Installation Media 1 x Support DVD Documentation 1 x TUF Certification card 1 x User guide Operating System Windows 11 64-bit, Windows 10 64-bit Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Including below info in Z690 refreshed NPI: Supports 13th gen Intel Core TM desktop processors. BIOS update may be required to boot the 13th gen Intel Core TM desktop processors

Processor System CPU Build in Intel Celeron Quad-Core J3455 SoC onboard Processors Memory Technology DDR3L 1866/1600/1333 MHz Non-ECC, Un-buffered Memory Max. 8GB Socket 2 x U-DIMM Display VGA 1, Supports up to 1920 X 1200 at 60 Hz HDMI 1, Supports up to 3840 x 2160 at 30 Hz Multi Display HDMI+VGA+LVDS Expansion Slot PCIe 1 x PCIe 2.0 x4 (x1 mode) M.2 1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT device Ethernet Speed 10/100/1000Mbps Controller 1 x Realtek RTL8111H, supports PXE/WOL Connector 1 x RJ-45 Audio Codec Realtek ALC887-VD2 8-Channel High Definition Audio Connector Line-Out, Line-In, MIC Storage SATA port 2 x SATA Gen 3.0, up to 6Gb/s Rear I/O VGA 1 HDMI 1 USB3.2 Gen1 4 Ethernet 1 Serial Port 1 (RS232) Audio jack 3 PS/2 1 x Keyboard Port, 1 x Mouse Port Internal Connector Serial Port 1 (RS232) USB3.2 Gen1 1 X Header Support Additional 2 X USB3.2 Gen1 Connectors USB2.0 2 X Header Support Additional 4 X USB2.0 Connectors CPU Fan Connector 1 (PWM Mode) Chassis Fan Header 1 (PWM+DC Mode) Chassis Intrusion Header 1 Parallel Port Connector 1 Front Panel Audio Header (AAFP) 1 System Panel Header 1(10-1 Pin) Clear CMOS Jumper 1 Buzzer 1 Display Panel Backlight Power Selector 1 Flat Panel Display Brightness Connector 1 Display Panel VCC Power Selector 1 Power Connector 1 X 4-pin ATX Power Connector, 1 X 24-pin EATX Power Connector Watchdog Timer H/W YES Security TPM 1 x LPC TPM header Power Power Type EATX, ATX mode Operating System Microsoft Windows Windows 10 (64bit) Linux Ubuntu, RedHat Enterprise, Fedora Workstation, OpenSUSE Environment Operating Temperature 0 to 50 o C Non-Operating Temperature -40 to 70 o C Relative Humidity 0% to 85% Form Factor Mini-ITX Certification Safety CE, FCC

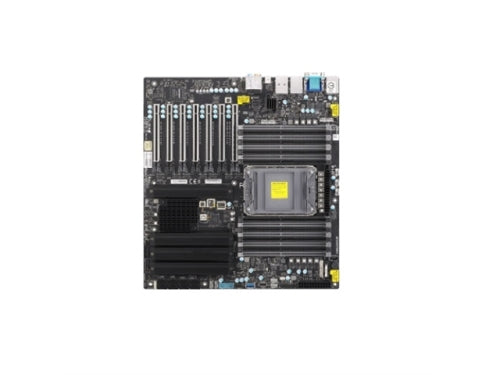

Form Factor E-ATX Processor CPU 3rd Gen Intel Xeon Scalable processors, Intel Xeon W-3300 Processor Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP Core Up to 40 cores System Memory Memory Capacity 16 DIMM slots Up to 4TB Intel Optane TM Persistent Memory 200 Series, DDR4-3200MHz Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz, Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz Memory Type ECC 3DS DDR4 LRDIMM, RDIMM DIMM Sizes 4GB, 8GB, 16GB, 32GB, 64GB, 128GB Memory Voltage 1.2V On-Board Devices Chipset Intel C621A SATA Intel C621A controller for 8 SATA3 (6 Gbps) ports, RAID 0,1,5,10 IPMI ASPEED AST2500 Audio ALC 888S HD Audio Graphics ASPEED AST2500 BMC VGA connector is dedicated for IPMI. Network Controllers Single LAN with Intel Ethernet Controller I210-AT Single LAN with Realtek RTL8211F PHY (dedicated IPMI) Single LAN with Marvell AQC113 Input / Output LAN 1 RJ45 Dedicated IPMI LAN port 1 RJ45 Gigabit Ethernet LAN ports 1 RJ45 10GBase-T ports USB 4 USB 2.0 port(s) (2 rear, 2 via header) 6 USB 3.2 Gen1 port(s) (2 via header, 4 rear) 2 USB 3.2 Gen2 port(s) (1 type A, 1 type C) 1 USB 3.2 Gen2x2 port(s) (1 rear type C) USB 3.2 Gen2 (1 Type A Vertical, 1 Type C header) Video Output 1 VGA port(s) Serial Port 2 COM Port(s) (1 header, 1 rear) DOM 1 SATA DOM power connector (Disk on Module) port TPM 1 TPM Header Expansion Slots PCI-E 4 PCI-E 4.0 x16, 3 PCI-E 4.0 x8 (in x16 slot) PCI-Ex16 Slot number 1 shares with M.2, Slot number 2 shares with Slot number 3(NA/16,8/8), Slot number 4 shares with Slot number 5(NA/16,8/8), Slot number 6 shares with Slot number 7(NA/16,8/8) M.2 M.2 Interface: 4 PCI-E 4.0 x4 Form Factor: 2260/2280/22110 Key: M-Key M.2 support to RAID 0,1, 5, 10, VROC key is required for RAID. System BIOS BIOS Type 256MB SPI Flash with AMI BIOS BIOS Features ACPI 3.0 / 4.0 SMBIOS 2.7 PCI FW 3.0 RTC (Real Time Clock) Wakeup Management Software SuperDoctor 5, SUM, SPM, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support System Management Software SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support Power Configurations Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection, Main Switch Override Mechanism PC Health Monitoring Voltage VBAT, Memory, HT, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, 10 -fan status LED Suspend static indicator LED CPU / System Overheat LED Temperature Monitoring for CPU and chassis environment CPU thermal trip support PECI FAN 10x 4-pin fan headers (up to 10 fans) PWM fan speed control Fan speed control Dual Cooling Zone Status monitoring for speed control Overheat LED indication Operating Environment Operating Temperature Range 0 o C - 50 o C (32 o F - 122 o F) Non-Operating Temperature Range -20 o C - 60 o C (-4 o F - 140 o F)

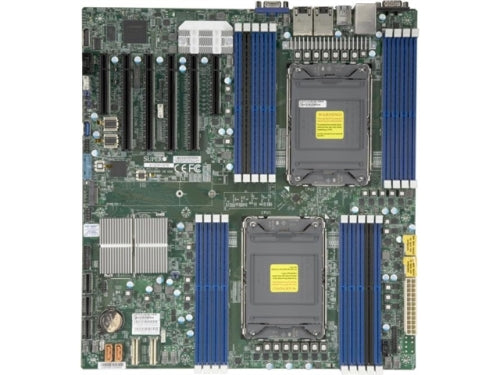

Physical Stats Form Factor E-ATX Dimensions 12" x 13" (30.48cm x 33.02cm) Processor/Cache CPU 3rd Gen Intel Xeon Scalable processors Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s Cores / Cache Up to 40 cores System Memory Memory Capacity Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz Up to 4TB Intel Optane Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slotsP1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only. Memory Type 3200/2933/2666MHz ECC DDR4 RDIMM, LRDIMM DIMM Sizes RDIMM: 256GB LRDIMM: 256GB 3DS LRDIMM: 256GB Memory Voltage 1.2V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset Intel C621A SATA Intel C621A controller for 14 SATA3 (6 Gbps) ports RAID 0,1,5,10 IPMI ASPEED AST2600 BMC Network Controllers Dual LAN with Intel i350 Gigabit Ethernet Controller Input / Output SATA 14 SATA3 (6Gbps) ports LAN 2 RJ45 Gigabit Ethernet LAN ports USB 2 USB 2.0 ports (2 via headers) 7 USB 3.2 Gen1 ports (4 rear + 2 via headers + 1 Type A) Video Output 2 VGA (1 rear bezel, 1 front panel) ports Serial Port / Header 2 COM Ports (1 rear, 1 header) TPM 1 TPM Header Expansion Slots PCI-E 2 PCI-E 4.0 x8, 4 PCI-E 4.0 x16 M.2 M.2 Interface: 1 PCI-E 4.0 x4 Form Factor: 2280/22110 Key: M-Key System BIOS BIOS Type AMI UEFI Management Software Intel Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor 5, Watchdog System Management Software IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support IPMICFG IPMIView for Linux/Windows SMCIPMITool SSM SUM SuperDoctor 5 SPM PC Health Monitoring Voltage +12V, +3.3V, +5V, +5V standby, 3.3V standby, 8 -fan status, Chassis intrusion header, CPU temperature, LAN temperature, Memory temperature, Memory Voltages, Monitors CPU voltages, PCH temperature, System temperature, VBAT, VRM temperature Temperature CPU thermal trip support, Monitoring for CPU and chassis environment, PECI LED BMC/IPMI Heartbeat LED, Power LED, UID/Remote UID Other Features ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, NCSI header, Node Manager Support, RoHS, SDDC, UID, WOL Operating Environment Operating Temperature Range 10 o C - 35 o C (50 o F - 95 o F) Non-Operating Temperature Range -40 o C - 70 o C (-40 o F - 158 o F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing)

Physical Stats Form Factor E-ATX Dimensions 12" x 13" (30.48cm x 33.02cm) Processor/Cache CPU 3rd Gen Intel Xeon Scalable processors Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s Cores / Cache Up to 40 cores System Memory Memory Capacity Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz Up to 4TB Intel Optane Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slotsP1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only. Memory Type 3200/2933/2666MHz ECC DDR4 RDIMM, LRDIMM DIMM Sizes RDIMM: 256GB LRDIMM: 256GB 3DS LRDIMM: 256GB Memory Voltage 1.2V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset Intel C621A SATA Intel C621A controller for 14 SATA3 (6 Gbps) ports RAID 0,1,5,10 IPMI ASPEED AST2600 BMC Network Controllers Dual LAN with Intel i350 Gigabit Ethernet Controller Input / Output SATA 14 SATA3 (6Gbps) ports LAN 2 RJ45 Gigabit Ethernet LAN ports USB 2 USB 2.0 ports (2 via headers) 7 USB 3.2 Gen1 ports (4 rear + 2 via headers + 1 Type A) Video Output 2 VGA (1 rear bezel, 1 front panel) ports Serial Port / Header 2 COM Ports (1 rear, 1 header) TPM 1 TPM Header Expansion Slots PCI-E 2 PCI-E 4.0 x8, 4 PCI-E 4.0 x16 M.2 M.2 Interface: 1 PCI-E 4.0 x4 Form Factor: 2280/22110 Key: M-Key System BIOS BIOS Type AMI UEFI Management Software Intel Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor 5, Watchdog System Management Software IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support IPMICFG IPMIView for Linux/Windows SMCIPMITool SSM SUM SuperDoctor 5 SPM PC Health Monitoring Voltage +12V, +3.3V, +5V, +5V standby, 3.3V standby, 8 -fan status, Chassis intrusion header, CPU temperature, LAN temperature, Memory temperature, Memory Voltages, Monitors CPU voltages, PCH temperature, System temperature, VBAT, VRM temperature Temperature CPU thermal trip support, Monitoring for CPU and chassis environment, PECI LED BMC/IPMI Heartbeat LED, Power LED, UID/Remote UID Other Features ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, NCSI header, Node Manager Support, RoHS, SDDC, UID, WOL Operating Environment Operating Temperature Range 10 o C - 35 o C (50 o F - 95 o F) Non-Operating Temperature Range -40 o C - 70 o C (-40 o F - 158 o F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing)

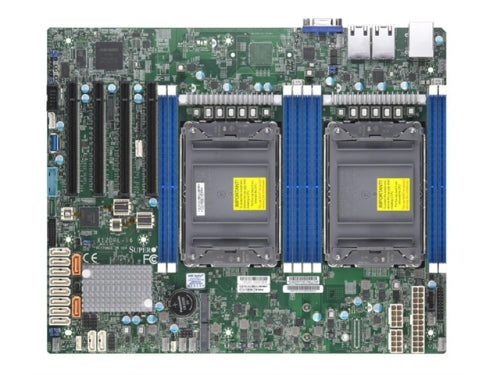

Form Factor ATX Processor/Cache CPU 3rd Gen Intel Xeon Scalable processors Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, 2 UPI up to 11.2 GT/s System Memory Memory Capacity Up to 2TB RDIMM, DDR4-3200MHz, Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz, in 8 DIMM slots Memory Type 3200/2933/2666MHz ECC DDR4 RDIMM, LRDIMM DIMM Sizes 256GBRDIMM: 256GB LRDIMM: 256GB 3DS LRDIMM: 256GB Memory Voltage 1.2V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset Intel C621A SATA Intel C621A controller for 12 SATA3 (6 Gbps) ports, RAID 0,1,5,10 IPMI ASPEED AST2600 BMC Network Controllers Dual LAN with Intel i210 Gigabit Ethernet Controller Graphics ASPEED AST2600 BMC Input / Output LAN 2 RJ45 Gigabit Ethernet LAN ports USB 5 USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A) Video Output 1 VGA port Serial Port / Header 1 COM Port (1 header) TPM 1 TPM Header Expansion Slots PCI-E 4 PCI-E 4.0 x16 M.2 M.2 Interface: 2 PCI-E 4.0 x4 Form Factor: 2280/22110, 2280 Key: M-Key System BIOS BIOS Type AMI UEFI Management Software Intel Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor 5, Watchdog System Management Software IPMICFG SMCIPMITool IPMIView for Linux/Windows Power Configurations ACPI Power Management PC Health Monitoring Voltage +12V, +3.3V, +5V, +5V standby, 3.3V standby, 8 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility Temperature CPU thermal trip support, PECI LED BMC/IPMI Heartbeat LED, UID/Remote UID Other Features ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, NCSI header, Node Manager Support, RoT, UID Operating Environment Operating Temperature Range 10 o C - 35 o C (50 o F - 95 o F) Non-Operating Temperature Range -40 o C - 70 o C (-40 o F - 158 o F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing)

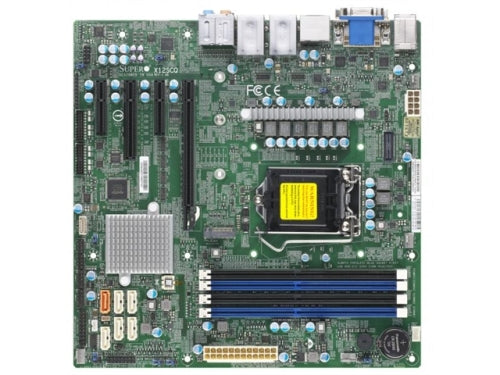

Form Factor microATX System Memory Memory Capacity Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots Memory Type N/A DIMM Sizes N/A Memory Voltage N/A On-Board Devices Chipset Intel Q470E SATA Intel Q470 controller for 6 RAID 0,1,5,10 Network Controllers Single LAN with Intel PHY I219LM LAN controller Single LAN with Intel Ethernet Controller I210-AT Graphics Intel HD Graphics Input / Output SATA 6 SATA3 (6Gbps) port LAN 2 RJ45 Gigabit Ethernet LAN ports USB 6 USB 2.0 ports (2 rear + 4 via headers) 6 USB 3.1 Gen2 ports (2 Rears Type A + 2 Rears Type C, 2 via headers) Video Output 1 VGA port, 1 HDMI port, 1 DP (DisplayPort) port, 1 DVI - D port Serial Port / Header 4 COM Ports (4 headers) TPM 1 TPM Header and Chip both Expansion Slots PCI-E 1 PCI-E 3.0 x16 (in x16 slot), 1 PCI-E 3.0 x8, 2 PCI-E 3.0 x4 M.2 M.2 Interface: 1 PCI-E 3.0 x4, RAID 0 and 1 Form Factor: 2242/2280 Key: M-Key System BIOS BIOS Type AMI UEFI BIOS Features ACPI 6.1 SMBIOS 3.0 or later PCI FW 3.0 UEFI 2.7 RTC (Real Time Clock) Wakeup Management Software AMT, SUM, SuperDoctor 5, vPro, Watchdog Power Configurations ATX Power connector PC Health Monitoring Voltage +1.35V, +1.5V, +1.8V, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 4 -fan status, 4 fans with tachometer monitoring, VBAT Temperature CPU thermal trip support, Monitoring for CPU and chassis environment LED Power LED Other Features ACPI power management, ATX Power connector, Chassis intrusion detection, M.2 NGFF connector, RoHS Operating Environment Operating Temperature Range 0 o C to 60 o C (32 o F to 140 o F) Non-Operating Temperature Range -40 o C - 85 o C (-40 o F - 185 o F) Operating Relative Humidity Range 10% to 85% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing)

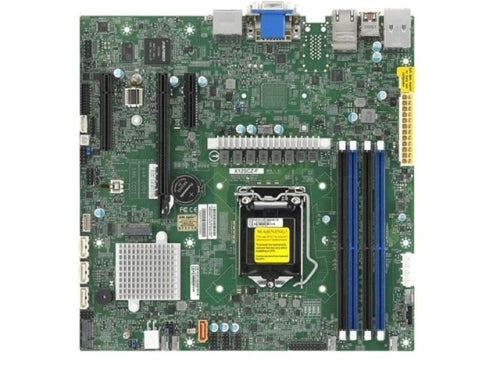

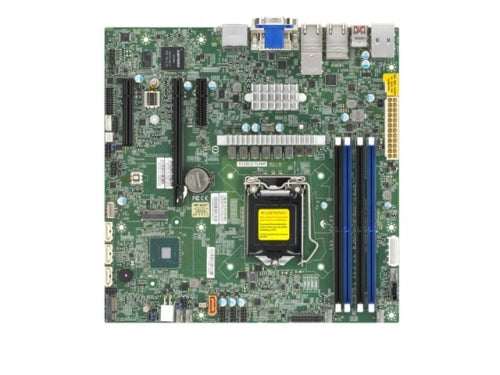

Form Factor microATX Processor/Cache CPU 10th Generation Intel Core TM i9/Core TM i7/Core TM i5/Core TM i3 Processor, Intel Xeon W-1200 Processors Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP A graphic integrated CPU is required to have onboard video from the DVI and DP ports Cores / Cache Up to 10 cores Note Motherboard supports this maximum TDP. Please verify your system can thermally support. System Memory Memory Capacity Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots Memory Type 2933/2666/2400/2133MHz DIMM Sizes 4GB, 8GB, 16GB, 32GB Memory Voltage 1.2V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset Intel W480E SATA Intel W480E controller for 4 SATA3 (6 Gbps) ports, RAID 0,1,5,10 IPMI ASPEED AST2500 Network Controllers Dual LAN with Intel X550 10GBase-T Ethernet Controller Single LAN with Intel PHY I219LM LAN controller Single LAN with Intel Ethernet Controller I210-AT Audio ALC 888S HD Audio Graphics ASPEED AST2500 BMC, Intel HD Graphics Input / Output SATA 4 SATA3 (6Gbps) ports LAN 2 RJ45 10 Gigabit Ethernet LAN ports 2 RJ45 Gigabit Ethernet LAN ports USB 6 USB 2.0 ports (6 via headers) 6 USB 3.2 Gen2 ports (4 Rear Type A, 2 via headers) Video Output 1 VGA D-Sub Connector port, 2 DP++(Dual-Mode DisplayPort) ports, 1 DVI - D port Serial Port / Header 1 COM Port (1 header) TPM TPM Header and Chip both Expansion Slots PCI-E 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x4 (in x8 slot), 1 PCI-E 3.0 x4 M.2 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110 1 M.2 E-Key CNVi/PCI-E 3.0 x1, 2230 System BIOS BIOS Type AMI UEFI BIOS Features ACPI 6.1 SMBIOS 3.1 PCI FW 3.0 UEFI 2.6 RTC (Real Time Clock) Wakeup Management Software AMT, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SUM, SuperDoctor 5, vPro, Watchdog System Management Software IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support Power Configurations +12V DC Power Input ATX Power connector ACPI Power Management PC Health Monitoring Voltage +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 5 -fan status, Chassis intrusion header, CPU, Memory temperature, PCH temperature, VBAT Temperature Thermal Control for 5 Fan Connectors LED Power LED, BMC/IPMI Heartbeat LED, UID/Remote UID Other Features 12V DC or ATX Power Source, 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Dual Cooling Zones, M.2 NGFF connector, RoHS, UID Operating Environment Operating Temperature Range 0 o C to 60 o C (32 o F to 140 o F) Non-Operating Temperature Range -40 o C - 85 o C (-40 o F - 185 o F) Operating Relative Humidity Range 10% to 85% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing)

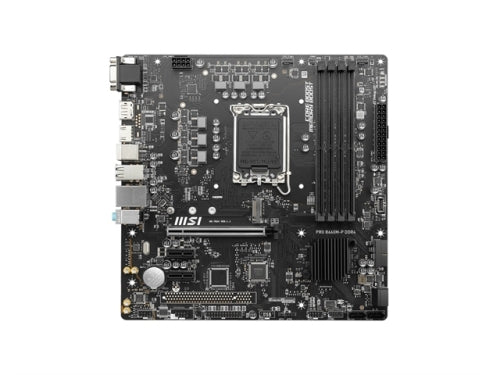

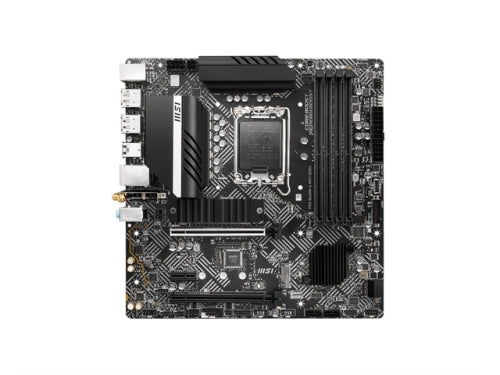

CPU (MAX SUPPORT) i9 SOCKET 1700 CHIPSET Intel B660 Chipset DDR4 MEMORY 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz MEMORY CHANNEL Dual DIMM SLOTS 4 MAX MEMORY (GB) 128 PCI-E X16 1 PCI-E X1 2 SATAIII 4 M.2 SLOT 1 RAID 0/1/5/10 TPM (HEADER) 1 LAN 1x Realtek RTL8111H 1Gbps LAN controller USB 3.2 PORTS (FRONT) 2(Gen 1, Type A), 1(Gen 1, Type C) USB 3.2 PORTS (REAR) 1(Gen 2, Type C), 1(Gen 1, Type A) USB 2.0 PORTS (FRONT) 2 USB 2.0 PORTS (REAR) 4 SERIAL PORTS(FRONT) 1 AUDIO PORTS (REAR) Realtek ALC897 Codec DISPLAYPORT 1 VGA 1 HDMI 1 DIRECTX 12 OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit FORM FACTOR MATX

CPU AMD Ryzen Threadripper Pro Processors Refer to www.asus.com for CPU support list. Chipset AMD WRX80 Chipset Memory Memory Channels:8DDR4 (Eight Channel) Max Memory Size:2048GB 8 x DIMM, Max. 2048GB, DDR4 3200/3000/2933/2800/2666/2400/2133 MHz ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM and 3DS R-DIMM Memory 8 Channel Memory Architecture Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Expansion Slots AMD Ryzen Threadripper PRO Series Processors 7 x PCIe 4.0/3.0 x16 slot(s) Support PCIe bandwidth bifurcation for RAID on CPU function. Multi-GPU Support Supports NVIDIA 4-Way/3-Way/2-Way SLI Technology Storage Supports 3 x M.2 slots and 8 x SATA 6Gb/s ports AMD Ryzen Threadripper PRO Series Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 and SATA modes) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 and SATA modes) U.2_1 slot supports U.2 NVMe device and up to 4 SATA devices AMD WRX80 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 and SATA modes) U.2_2 slot supports U.2 NVMe device and up to 4 SATA devices 4 x SATA 6Gb/s ports ASMedia ASM1061 Controller 4 x SATA 6Gb/s ports Supports NVMe RAID configurations via M.2 storages The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled. Each U.2 slots can support up to 4 SATA devices via a transfer cable. the cable is perchased seperately. Ethernet 1 x Intel X550-AT2 dual 10Gb Ethernet Wireless and Bluetooth Intel Wi-Fi 6 AX200 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports 2.4/5GHz Dual-Band Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports PCIe interface Bluetooth v5.1 Bluetooth v5.1 function will be ready in Windows 10 build 19041 or later. USB 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C) Front USB:Total 7 ports 1 x USB 3.2 Gen 2 connector(s) (suppport(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Audio Relatek ALC4080 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback" Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 9 x USB 3.2 Gen 2 port(s) (8 x Type-A+ 1 x USB Type-C) 1 x ASUS Wi-Fi Module 2 x Intel X550-AT2 dual 10Gb Ethernet ports 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button Intrernal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 6 x 4-pin Chassis Fan header(s) 1 x VRM heatsink Fan header 1 x Chipset Fan header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 2 x 6-pin PCIe Graphics Card connector 1 x 8-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 8 x SATA 6Gb/s ports 2 x U.2 slots USB 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports BMC Related 1 x BMC switch 1 x IPMI switch 1 x Messange LED header 1 x Micro SD card socket 2 x LAN LED header(s) 1 x Location LED header 1 x Location button header 1 x PSU_SMB header 1 x SMART_PSU switch 1 x VGA switch 1 x VGA header 1 x VPP_I2C header Miscellaneous 1 x COM Port header 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x Start button 1 x 20-3 pin System Panel header with Chassis intrude function 1 x RTC Battery header 1 x Thermal Sensor header Special Features ASUS Q-Design - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU red, DRAM yellow, VGA white, Boot Device yellow green) - Q-Slot ASUS Thermal Solution - M.2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot Bespoke Motherboard Design and Business Focused Features - Event Log in ASMB9-iKVM - 24/7 Reliability - Overcurrent Protection ASMB9-iKVM for KVM-over-Internet Software Features ASUS Exclusive Software Armoury Crate ASUS CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS:X Ultra Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 6 x SATA 6Gb/s cables 1 x VGA cable Miscellaneous 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas 1 x Hyper M.2 X16 Gen 4 Card 3 x M.2 Rubber Package(s) 3 x M.2 SSD screw package(s) 1 x Q-connector Installation Media 1 x Support DVD Documentation 1 x User manual Form Factor 30.98cm x 33.02cm

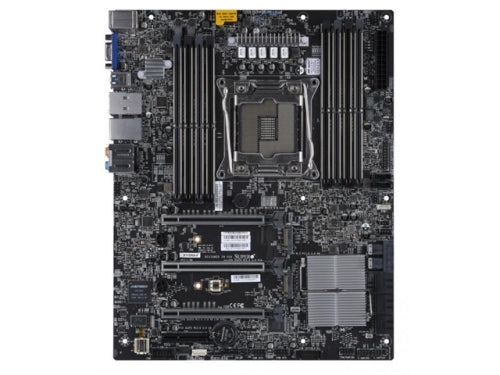

Physical Stats Form Factor ATX Processor/Cache CPU Intel Xeon W-2100 Processors, Intel Xeon W-2200 Processors Single Socket LGA-2066 (Socket R4) supported, CPU TDP support Up to 165W TDP Cores / Cache 18 cores, 36 threads Note W-2200 CPU is supported on the motherboards with BIOS 2.0 or newer upon receiving from Supermicro Note To support 165W W-2200 CPUs, BIOS 2.0 and VRM update by Supermicro are required System Memory Memory Capacity Up to 512GB ECC RDIMM, DDR4-2933MHz Up to 1TB Registered ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots Memory Type 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM DIMM Sizes 4GB, 8GB, 16GB, 32GB, 64GB, 128GB Memory Voltage 1.2V Error Detection Corrects single-bit errors On-Board Devices Chipset Intel C422 SATA Intel C422 controller for 8 SATA3 (6 Gbps) ports RAID 0,1,5,10 IPMI ASPEED AST2500 Network Controllers Dual LAN with Intel i210 Gigabit Ethernet Controller Graphics Aspeed AST2500 BMC Input / Output SATA 8 SATA3 (6Gbps) ports LAN 2 RJ45 Gigabit Ethernet LAN ports USB 6 USB 2.0 ports (2 rear + 4 via headers) 5 USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A) Video Output 1 VGA port Serial Port / Header 2 COM Ports (1 rear, 1 header) TPM TPM Header Expansion Slots PCI-E 3 PCI-E 3.0 x8, 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 (in x16 slot), 1 PCI-E 3.0 x4 (in x8 slot) M.2 M.2 Interface: 1 PCI-E 3.0 x4 Form Factor: 2280/22110 Key: M-Key Double Height Connector System BIOS BIOS Type AMI UEFI BIOS Features ACPI 6.2 SMBIOS 3.0 or later UEFI 2.7 Management Software IPMI2.0, KVM with dedicated LAN, SUM, SuperDoctor 5, Watchdog Power Configurations ACPI Power Management CPU thermal trip support for processor protection Power-on mode for AC power recovery PC Health Monitoring Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 7-fan status, Chassis intrusion header, HT, Monitors CPU voltages, System temperature, VBAT FAN 7x 4-pin fan headers (up to 7 fans), Fan speed control, Overheat LED indication, PWM fan speed control, System level control Temperature PECI, CPU thermal trip support, Thermal Control for 6 Fan Connectors LED CPU / System Overheat LED, UID/Remote UID, Suspend static indicator LED Other Features ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, RoHS, UID Operating Environment Operating Temperature Range 0 o C - 50 o C (32 o F - 122 o F) Non-Operating Temperature Range -20 o C - 60 o C (-4 o F - 140 o F) Operating Relative Humidity Range 10% - 85% (non-condensing) Non-Operating Relative Humidity Range 10% - 95% (non-condensing)

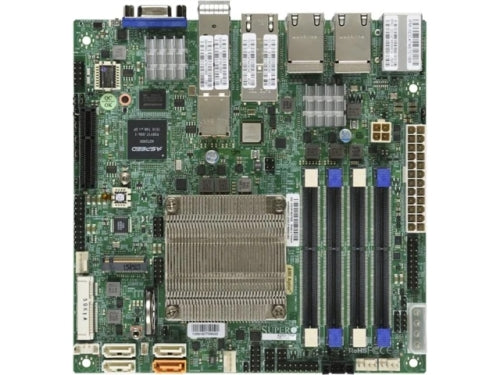

Physical Stats Form Factor Mini-ITX Processor CPU Intel Atom Processor C3958 Single Socket FCBGA-1310 supported, CPU TDP supports Up to 31W TDP Core Up to 16 cores, 16 threads / 16MB Cache System Memory Memory Capacity 4 DIMM slots Up to 64GB ECC/non-ECC SODIMM, DDR4-2400MHz Memory Type 2400/2133/1866/1600MHz ECC/non-ECC DDR4 SODIMM DIMM Sizes 4GB, 8GB, 16GB Memory Voltage 1.2V Error Detection Corrects single-bit errors On-Board Devices Chipset System on Chip SATA SoC controller for 4 SATA3 (6 Gbps) ports IPMI ASPEED AST2400 BMC Graphics ASPEED AST2400 BMC Network Controllers Quad LAN with Intel C3000 SoC, 2 10GBaseT, 2 10Gb SFP+ Quad LAN with Intel Ethernet Controller I350-AM4, 1GbE Input / Output SATA 4 SATA3 (6Gbps) port(s) LAN 4 RJ45 Gigabit Ethernet LAN ports 2 10G SFP+ LAN ports 2 RJ45 10GBase-T ports USB 4 USB 2.0 port(s) (4 via header) 2 USB 3.0 port(s) (2 rear) Video Output 1 VGA port(s) Serial Port 1 COM Port(s) (1 header) DOM 1 SuperDOM (Disk on Module) ports TPM 1 TPM Header Expansion Slots PCI-E 1 PCI-E 3.0 x4 1 miniPCI-E with mSATA supports (half card only) M.2 M.2 Interface: PCI-E 3.0 x4 SATA Form Factor: 2242, 2280 Key: M-Key System BIOS BIOS Type AMI UEFI BIOS Features UEFI 2.4 SMBIOS 2.7.1 Management Software SuperDoctor 5, NMI, SUM, KVM with dedicated LAN, IPMI2.0, Watchdog System Management Software SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support Power Configurations Power-on mode for AC power recovery, ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection PC Health Monitoring Voltage VBAT, System temperature, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 4 fans with tachometer monitoring, 4 -fan status, 1.2V (VDIMM), 1.05 (PCH), +5V, +12V, +1.8V, VCGI LED UID/Remote UID Temperature CPU thermal trip support FAN 4x 4-pin fan headers (up to 4 fans) Thermal control tachometer fan connectors, System level control, Fan speed control, Dual Cooling Zone, 4 fans with tachometer monitoring, Status monitoring for speed control, Pulse Width Modulated (PWM) fan connectors, Overheat LED indication, Support 3-pin fans (w/o speed control) Other Features WOL, UID, System level control, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, 12V DC or ATX Power Source, SDDC, Innovation Engine, 4-pin 12v DC power connector Operating Environment Operating Temperature Range 0 o C - 60 o C (32 o F - 140 o F) Non-Operating Temperature Range -40 o C - 85 o C (-40 o F - 185 o F) Operating Relative Humidity Range 10% - 85% (non-condensing) Non Operating Relative Humidity Range 10% - 95% (non-condensing)

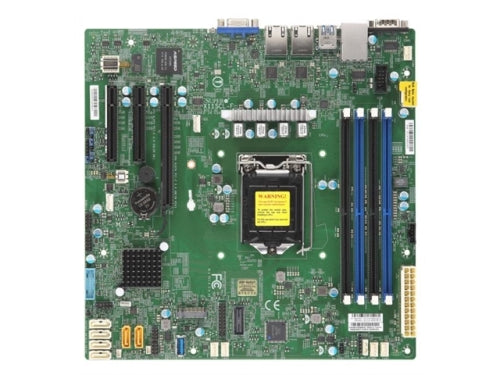

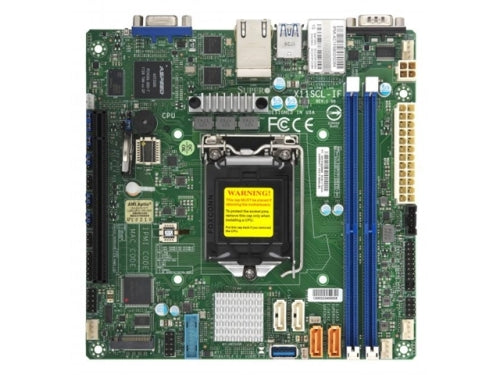

Physical Stats Form Factor microATX Processor/Cache CPU 8th/9th Generation Intel Corei3/Pentium/Celeron Processor, Intel Xeon E-2100 Processor, Intel Xeon E-2200 Processor. Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP Cores / Cache 6 cores, 12 threads Note BIOS version 1.0b or above is required to support Intel Xeon E-2200 and 9th Generation Intel Core i3/Pentium/Celeron Processors System Memory Memory Capacity Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots Memory Type 2667/2400/2133MHz ECC DDR4 SDRAM 72-bit DIMM Sizes 4GB, 8GB, 16GB, 32GB Memory Voltage 1.2V Error Detection Corrects single-bit errors On-Board Devices Chipset Intel C242 SATA Intel C242 controller for 6 SATA3 (6 Gbps) ports RAID 0,1,5,10 IPMI ASPEED AST2500 Network Controllers Dual LAN with 1GbE with Intel I210 Graphics Aspeed AST2500 BMC Input / Output USB 6 USB 2.0 ports (2 rear + 4 via headers) 5 USB 3.1 Gen1 ports (2 Rears Type A, 2 via headers, 1 Type A) Video Output 1 VGA port Serial Port / Header 2 COM Ports (1 rear, 1 header) TPM 1 TPM Header Expansion Slots PCI-E 1 PCI-E 3.0 x8 (in x16 slot), 2 PCI-E 3.0 x4 (in x8 slot) M.2 M.2 Interface: 1 PCI-E 3.0 x4 Form Factor: 2280/22110 Key: M-Key Double Height Connector System BIOS BIOS Type UEFI 256Mb BIOS Features ACPI 6.0 SMBIOS 2.7 Plug and Play (PnP) RTC (Real Time Clock) Wakeup UEFI 2.7 USB Keyboard support PCI 3.0 Management Software IPMI2.0, KVM with dedicated LAN, SSM, SUM, SuperDoctor 5 Power Configurations ACPI Power Management Power-on mode for AC power recovery PC Health Monitoring Voltage +12V, +3.3V, +5V, +5V standby, 5 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, VBAT FAN 5x 4-pin fan headers (up to 5 fans), 5 fans with tachometer status monitoring, Overheat LED indication, PWM fan speed control, Thermal control tachometer fan connectors Temperature Thermal Monitor 2 (TM2) support, CPU thermal trip support, PECI, Monitoring for CPU and chassis environment LED CPU / System Overheat LED, UID/Remote UID Other Features ACPI power management, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, UID, WOL Operating Environment Operating Temperature Range 0 o C - 50 o C (32 o F - 122 o F) Non-Operating Temperature Range -40 o C - 70 o C (-40 o F - 158 o F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing)

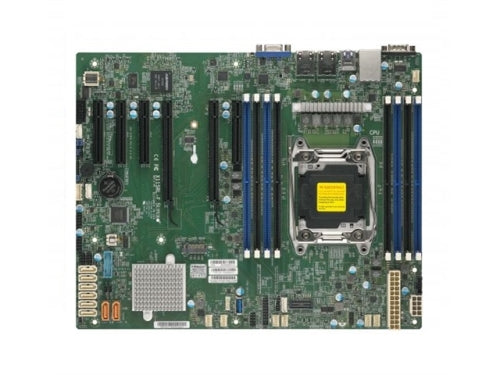

Physical Stats Form Factor:ATX Dimensions:12" x 9.6" (30.48cm x 24.38cm) Processor/Cache CPU:Intel Xeon Processor Skylake-W , Intel Xeon Processor W Family. Single Socket R4 (LGA 2066) supported, CPU TDP support Up to 140W System Memory Memory Capacity:Up to 256GB Registered ECC RDIMM, DDR4-2666MHz Up to 512GB Registered ECC LRDIMM, in 8 DIMM slots Memory Type:2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM DIMM Sizes:4GB, 8GB, 16GB, 32GB, 64GB Memory Voltage:1.2V On-Board Devices Chipset:Intel C422 SATA:Intel C422 controller for 6 SATA3 (6 Gbps) ports RAID 0,1,5,10 iRST enabled, only SATA2 to SATA5 support RAID. IPMI:ASPEED AST2500 Network Controllers:Single LAN with Intel Ethernet Controller I210-AT Single LAN with Aquantia 5G LAN chip AQC108 Audio:ALC 1220 7.1 HD Audio Input / Output LAN:RJ45 Shared IPMI LAN port USB:6 USB 2.0 ports (2 rear + 4 headers), 6 USB 3.0 ports (4 rear + 2 headers), 2 USB 3.1 ports ( + 2 Type A) Serial Port / Header:1 COM Port (1 header) TPM:1 TPM Header Expansion Slots PCI-E:3 PCI-E 3.0 x16, 1 PCI-E 3.0 x4 3xPCI-E3.0 x16 Slots(8/16/16 (Skylake-W 48 lanes), 1xPCI-E3.0x4 slots M.2:M.2 Interface: 2 PCI-E 3.0 x4 Form Factor: M-Key 22110 (RAID 0,1 support) M-Key for SSD and Optane(up to Intel POR). Intel VROC licence kit is needed to enable RAID. System BIOS BIOS Type:UEFI 128Mb Management Software:AMT, IPMI2.0, SuperDoctor 5, Watchdog PC Health Monitoring Voltage:+1.8V, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, 5 (4-pin), Chassis intrusion header, Monitors CPU voltages, Monitors for CPU Cores, System temperature, VBAT FAN:5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication, PWM fan speed control Temperature:CPU thermal trip support Monitoring for CPU and chassis environment PECI Support to monitor Supermicro AOC temperatures from IPMI or SD 5 LED:CPU / System Overheat LED Other Features:ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, RoHS, Voltage and Frequency Overclocking, WOL Operating Environment Operating Temperature Range:0 o C - 50 o C (32 o F - 122 o F) Non-Operating Temperature Range:-20 o C - 60 o C (-4 o F - 140 o F) Operating Relative Humidity Range:10% - 85% (non-condensing) Non-Operating Relative Humidity Range:10% - 95% (non-condensing) Item Dimension (L inchxW inchxH inch) 12 x 10 x 1 Weight 3.00lb

Form Factor ATX CPU Intel Xeon Processor Scalable Family. Single Socket P (LGA 3647) supported, CPU TDP support 165W Cores / Cache Up to 28 cores Memory Capacity 8x 288-pin DDR4 DIMM slots Up to 1TB ECC 3DS LRDIMM Up to 512GB ECC LRDIMM Up to 256GB ECC RDIMM Memory Type 2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM DIMM Sizes RDIMM: 4GB, 8GB, 16GB, 32GB LRDIMM: 32GB, 64GB 3DS LRDIMM: 64GB, 128GB Memory Voltage 1.2V Error Detection Corrects single-bit errors Chipset Intel C621 SATA Intel C621 controller for 8 SATA3 (6 Gbps) ports RAID 0,1,5,10 IPMI ASPEED AST2500 Network Controllers Dual LAN with 1GbE with Intel I210 Graphics Aspeed AST2500 BMC USB 8 USB 2.0 ports (2 rear + 6 via header(s)), 5 USB 3.0 ports (2 rear + 2 via header(s) + 1 Type A) Video Output 1 VGA port(s) Serial Port / Header 2 COM Ports (1 rear, 1 header(s)) TPM TPM Header PCI-E 2 PCI-E 3.0 x8 (in x16 slot), 4 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8 slot) M.2 Interface: PCIe 3.0 x4 and SATA Form Factor: 2280, 22110 BIOS Type AMI UEFI BIOS Features ACPI 6.0 RTC (Real Time Clock) Wakeup SMBIOS 3.0 or late Software Intel Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor 5, Watchdog Power Configurations ACPI Power Management Power-on mode for AC power recovery Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 7-fan status, Chassis intrusion header, HT, Monitors CPU voltages, Supports system management utility, VBAT FAN 7x 4-pin fan headers (up to 7 fans), Fan speed control, Overheat LED indication, PWM fan speed control, System level control Temperature CPU thermal trip support PECI LED CPU / System Overheat LED UID/Remote UID Suspend static indicator LED Other Features ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, UID, WOL Item Dimension (L inchxW inchxH inch) 14 x 11 x 3 Weight 3.00lb

MPN IMB-V2000M Form Factor Mini-ITX Processor System CPU AMD Ryzen Embedded V2000 SoC processors, up to 54W V2718, 1.7GHz, 10-25W Chipset SoC BIOS AMI SPI 256 Mbit Memory Technology Dual Channel ECC/non-ECC DDR4 3200 MHz Capacity 64GB (32GB per DIMM) Socket 2 x 260-pin SO-DIMM Graphics Controller AMD Radeon Graphics DisplayPort 3 x DP 1.2a, Max resolution up to 3840x2160 at 60Hz 1 x DP 1.4, Max resolution up to 5120x2880 at 120Hz LVDS LVDS shared with DP_1 Dual channel 24 bit up to 1920 x 1200 at 60Hz eDP eDP shared with DP_0 Max resolution up to 3840x2160 at 60Hz MultiDisplay Quad Display Expansion Slot PCIe 1 x PCIe x8 (Gen3) SIM Socket 1x SIM socket connected to M.2 key B M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 for Wireless 1 x M.2 (Key B, 3042/3052) with PCIe x2/USB 3.2 and SIM for 4G/5G Audio Interface Realtek ALC897 HD , High Definition Audio. Mic-In / Line-Out Ethernet Controller/ Speed LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps LAN2: Realtek R8111EPV with 10/100/1000 Mbps Support DASH, Teaming function Connector 2 x RJ-45 Rear I/O DisplayPort 3 x DP 1.2a, 1 x DP 1.4 Ethernet 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN USB 2 x USB 3.2 (Gen1), 2 x USB 2.0 Audio 2 (Mic-in, Line-out) COM 1 x COM (RS-232) 1 x COM (RS-232/422/485) DC Jack 1 (Screw Type) Internal Connector USB 2 x USB 3.2 Gen1 (1 x USB 3.2 Gen1 header) 2 x USB 2.0 (1 x 2.54 pitch header) COM 3 x COM (RS-232) GPIO 8 x GPI, 8 x GPO TPM TPM 2.0 header LVDS 1 eDP 1 SATA PWR Output 1 Speaker Header 1 Storage M.2 1 x M.2 (Key M, 2242/2260/2280) with SATA3 and PCIe x4 for SSD SATA 2 x SATA3 (6Gb/s) Watchdog Timer Output From Super I/O to drag RESETCON NUMBER Interval 256 Segments, 0, 1, 2, ...255sec Power Requirements Input PWR 12-28V DC-In with 4-pin plug PWR cable or DC Jack (Screw Type) Power On AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready Environment Operating Temp 0 o C - 60 o C Storage Temp -40 o C - 85 o C Operating Humidity 5% - 90% Storage Humidity 5% - 90% Accessories Gift Package 1 x I/O Shield (13G020713000AK) 3 x SCREW M2x2,D equal 5 (13G020302031AK) 2 x COM Cable (14G000000310AK) 1 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK) Bulk Package 1 x I/O Shield (13G020713000AK) 3 x SCREW M2x2,D equal 5 (13G020302031AK)

Unique Feature ASRock USB 3.2 Gen2 - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) ASRock Super Alloy - Premium Power Choke - 50A Dr.MOS - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Steel Slot ASRock Hyper M.2/b> (PCIe Gen4x4) ASRock POST Status Checker/b> (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update and APP Shop CPU - Supports 12th Gen Intel Core Processors (LGA1700) - Digi Power design - 7 Power Phase design - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology Chipset - Intel Z690 Memory - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC) - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 128GB - Supports Intel Extreme Memory Profile (XMP) 2.0 Supports DDR4 3200 natively. BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment Graphics - Intel Xe Graphics Architecture (Gen 12) - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) at 60Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection - Nahimic Audio LAN - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports UEFI PXE Slots CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode Chipset: - 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode - 1 x PCIe 3.0 x1 Slot (PCIE2) - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire Supports NVMe SSD as boot disks Storage CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s and PCIe Gen4x4 (64 Gb/s) modes - 4 x SATA3 6.0 Gb/s Connectors Supports Intel Optane Memory H Series (M2_2 only) Supports Intel Volume Management Device (VMD) Supports NVMe SSD as boot disks Supports ASRock U.2 Kit RAID - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices Requires additional M.2 NVMe expansion cards to support RAID 5 Connector - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) Supports in total up to 12V/3A, 36W LED Strip Support in total up to 5V/3A, 15W LED Strip The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP and CHA_FAN1-4/WP can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O - 3 x Antenna Mounting Points - 1 x HDMI Port - 2 x USB 3.2 Gen2 Ports (10 Gb/s) (ReDriver) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Polychrome SYNC - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Easy RAID Installer These utilities can be downloaded from ASRock Live Update and APP Shop. Support CD - Drivers, Utilities, AntiVirus Software (Trial Version) Accessories - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 3 x Screws for M.2 Sockets Hardware Monitor - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans - CASE OPEN detection - Voltage monitoring: CPU Vcore, DRAM, VCCIN AUX, +1.05V PROC, +1.05V PCH, +0.82V PCH, +12V, +5V, +3.3V Form Factor - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - Solid Capacitor design OS - Microsoft Windows 10 64-bit / 11 64-bit Certifications - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
