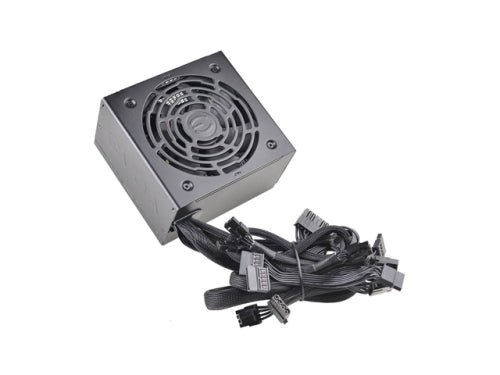

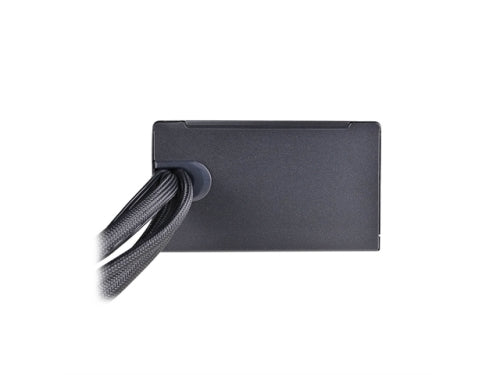

EVGA Power Supply 100-BR-0700-K1 700 BR 700W 80+BRONZE 12V PCI Express 120mm Long SleeveBearing Retail

CABLE LENGTH
ATX CABLE
1x 550mm
EPS CABLE
1x 600mm (m)
PCIE CABLE
2x 550mm, 670mm
SATA CABLE
3x 450mm, 570mm, 690mm
FOUR-PIN PERIPHERAL CABLE
1x 450mm, 570mm, 690mm + 810mm (Floppy)
AC POWER
1x 1200mm (m)
MODULAR CABLE TYPE
No
CONNECTOR QUANTITY
24 PIN ATX
1x
EPS (CPU)
1x 8pin (4+4)
PCIE
4x 8pin (6+2)
SATA
9x
FOUR-PIN PERIPHERAL
3x
FLOPPY
1x
POWER SPECS
AC Input
100 - 240 VAC, 10/5A, 50 - 60 Hz
Rail: +3.3V/Max Output: 24A/150W
Rail: +5V/Max Output: 20A/150W
Rail: +12V/Max Output: 58.3/ 699.6W/ 699.6W
Rail: +5Vsb/Max Output: 3A/ 15W
Rail: -12V/Max Output: 0.3A/3.6W
Total
700W at +30C
OPERATING TEMPERATURE
0^o to 30^o C
JAPANESE CAPACITORS
NO
ECO MODE
NO
MTBF
100,000 Hours
APPROVALS
TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement
FAN SIZE / BEARING
120mm Fluid Dynamic Bearing
