Barebones/Complete Systems

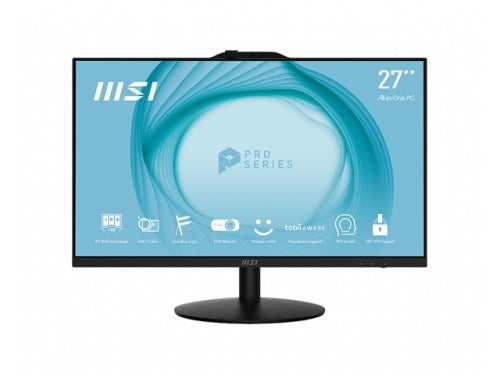

Color BLK Operating System Windows 11 Home Processor Intel Core i7-12700 8P+4EC/20T 25MB Cache Chipset H610 Display 27" LED FHD (1920x1080) IPS-Grade, LED, Matte Display Type Non-touch Graphics Intel Iris Xe Memory 16GB DDR4 (2 x 8GB) 3200 MHz Memory Slots 2x DDR4 2666/3200MHz SO-DIMM, up to 64GB Storage 500GB M.2 NVMe SSD Optical Drive Type N/A LAN 1 x RJ45 (1GbE) Realtek RTL8111H WLAN WiFi 6 (802.11ax) 2.4Gbps Dual Band 2.4GHz, 5GHz Bluetooth BT 5.2 Included Peripherals Wireless Keyboard and Mouse Audio 2 x 3W Speakers HD Audio (Realtek ALC897) VGA N/A Video I/O 1 x DP-out (1.2) 1 x HDMI-out (1.4) USB 2.0 2 x USB 2.0 (side) USB 3.1/3.2 1 x USB 3.2 Gen2 Type-C (rear) 1 x USB 3.2 Gen2 Type-A (rear) 2 x USB 3.2 Gen1 Type-A (rear) Mic in / Headphone out N/A Card Reader N/A Webcam 1080p (FHD) w/Dual-array Mic Stand Fixed Power Adapter 120W VESA N/A

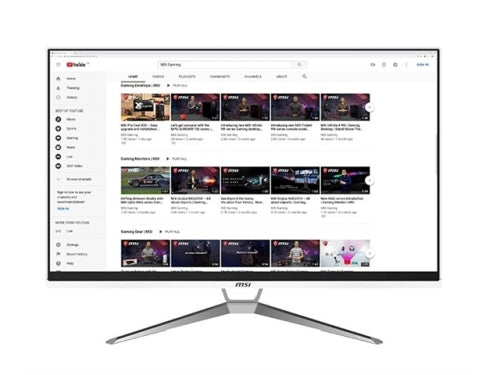

Color M AM242TP (WHT) Screen Size /Type 23.8" FHD IPS-Grade, LED, Matte Resolution/Ratio 1920x1080 16:9 Touch Option Multi-touch (10) CPU Intel Core i5-1240P 4P+8EC/16T 12MB Cache CPU Frequency 3.3-4.4 GH Chipset Intel SoC Graphic Intel Iris Xe System Memory 8GB DDR4 (1 x 8GB) 3200 MHz Memory Type 2x DDR4 2666/3200MHz SO-DIMM, up to 64GB Storage 256GB M.2 NVMe LAN 1 x RJ45 (1GbE) Wireless WiFi 6 (802.11ax) 2.4Gbps Dual Band 2.4GHz, 5GHz TPM fTPM 2.0 BT BT 5.2 HDMI-out 1 x HDMI-out 1 x HDMI-in USB 3.1/3.2 Type A/C 2 x USB 3.2 Gen2 Type-C (side) 2 x USB 3.2 Gen2 Type-A (side) USB 2.0 2 x USB 2.0 (rear) Keyboard+Mouse Wireless Expansion 1 x M.2 2280 (PCIe/SATA) 1 x 2.5" (hot-swappable) Mic-in/Headphone-out 1 x combo Speaker 2 x 2.5W Speakers HD Audio (Realtek ALC256) Webcam 2M Built-in 720p (HD) w/IR and Dual-array Mic PSU 120W O/S W11H Stand Adjustable Stand VESA Mount 75x75mm

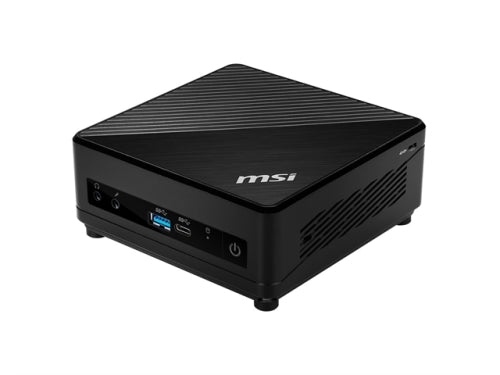

Manufacturer Part Number Cu510M668 OS Windows 11 Home CPU Intel Core i3-10110U 2C/4T 4MB Cache Chipset Intel SoC Motherboard Proprietary CPU Cooler silent fan heatsink VGA Intel UHD Memory (GB) 8GB DDR4 (2 x 4GB) 2666 MHz LAN 1 x RJ45 (1GbE) Intel WGI219V Wireless Communication WiFi 6 (802.11ax) 2.4Gbps Dual Band 2.4GHz, 5GHz Audio 1/1, HD Audio(Realtek ALC887) Video Port 1 x HDMI-out (1.4) 1 x DP-out (1.2) I/O Front: 1 x USB 3.2 Gen1 Type-C Rear: 2 x USB 2.0 Expansion Slots 1 x M.2 2280 (PCIe/SATA) 1 x 2.5 fTPM 2.0 USB Rear: 2 x USB 2.0 HDD/SSD 256GB M.2 NVMe Power Supply 65W Chassis Size 0.66L Note Upgrade timing may vary by device. Features and app availability may vary by region. Certain features require specific hardware (see https://www.microsoft.com/en-us/windows/windows-11-specifications).

CPU Intel Core i5-1240P 4P+8EC/16T 1.7-4.4 GHz 12MB Cache CPU Cooler Non-touch GPU Intel Iris Xe System Memory 8GB DDR4 (1 x 8GB) 3200 MHz Max. System Memory 2x DDR4 3200MHz SO-DIMM, up to 64GB SSD 512GB M.2 NVMe HDD 0 OS W11H+ Chipset Intel SoC Mthrbrd Proprietary (AM272-12) Expansion and TPM 1 x M.2 2280 (PCIe/SATA) 1 x 2.5" (hot-swappable) fTPM 2.0 Wireless LAN WiFi 6 (802.11ax) 2.4Gbps Dual Band 2.4GHz, 5GHz Bluetooth BT 5.2 LAN 1 x RJ45 (1GbE) PSU (W) 120 Display 27" FHD 16:9 (1920x1080) IPS-Grade, LED, Matte Audio 2 x 2.5W Speakers HD Audio (Realtek ALC256) Video I/O 1 x HDMI-out 1 x HDMI-in Mic/Headphone I/O 1 x combo USB 3.1/3.2 2 x USB 3.2 Gen2 Type-C (side) 2 x USB 3.2 Gen2 Type-A (side) USB 2.0 2 x USB 2.0 (rear) Webcam 1080p (FHD) w/IR and Dual-array Mic VESA Mount 75x75mm Energy Star Yes ID Color M AM272P (WHT) Bundle Adjustable Stand KB + Mouse Wireless

CPU Intel Core i7-12700F 8P+4EC/20T 2.1-4.9 GHz 25MB Cache CPU Cooler Air GPU NVIDIA GeForce RTX 3050 (ITX) GPU Memory 8GB GDDR6 128-bit System Memory 32GB DDR4 (2 x 16GB) 3200 MHz Max. System Memory 2x DDR4 3200MHz SO-DIMM, up to 64GB SSD 1TB M.2 NVMe OS W11P Chipset Intel H610 Mthrbrd Proprietary (P50-12) Expansion and TPM 1 x M.2 2280 (PCIe/SATA) dTPM 2.0 1 x 2.5" Wireless LAN WiFi 6E (802.11ax) 2.4Gbps Tri Band 2.4GHz, 5GHz, 6GHz Bluetooth BT 5.2 LAN 1 x RJ45 (2.5GbE) Intel I225-V PSU (W) 330_AC Adapter Audio 7.1 HD Audio (Realtek ALC1220P-VB2) Video I/O 1 x HDMI-out (2.1) 3 x DP-out (1.4a) Mic/Headphone I/O 1/1 USB 3.1/3.2 2 x USB 3.2 Gen1 Type-A (front) 1 x USB 3.2 Gen2x2 Type-C (rear) 2 x USB 3.2 Gen2 Type-A (rear) ID Color Creator P50 (WHT) Bundle Creator Center KB + Mouse Wired (WHT)

CPU Intel Core i7-12700F 8P+4EC/20T 2.1-4.9 GHz 25MB Cache CPU Cooler Air ARGB GPU NVIDIA GeForce RTX 3060 Ti GPU Memory 8GB GDDR6 256-bit System Memory 16GB DDR4 (2 x 8GB) 3200 MHz Max. System Memory 2x DDR5 4800MHz U-DIMM, up to 64GB SSD 1TB M.2 NVMe OS W11HA Chipset Intel B660 Mthrbrd Proprietary (TAS10) Expansion and TPM 2 x M.2 2280 (1 x PCIe/SATA, 1 x PCIe) 2 x 2.5" 1 x TPM connector Wireless LAN WiFi 6E (802.11ax) 2.4Gbps Tri Band 2.4GHz, 5GHz, 6GHz Bluetooth BT 5.2 LAN 1 x RJ45 (2.5GbE) Realtek RTL8125B PSU (W) 500_80+G (SFX) Audio 7.1 HD Audio (Realtek ALC897) Video I/O 1 x HDMI-out (2.1) 3 x DP-out (1.4a) Mic/Headphone I/O 1/1 USB 3.1/3.2 1 x USB 3.2 Gen1 Type-C (front) 1 x USB 3.2 Gen1 Type-A (front) 1 x USB 3.2 Gen2 Type-C (rear) 3 x USB 3.2 Gen2 Type-A (rear) USB 2.0 1 x USB 2.0 (front) 2 x USB 2.0 (rear) ID Color Trident AS (BLK) w/ARGB Bundle Mystic Light RGB, Silent Storm Cooling 3, Glass Panel KB + Mouse MSI Gaming KBMS Cooling RGB Fan Cooling

CPU Intel Core i7-12700F 8P+4EC/20T 2.1-4.9 GHz 25MB Cache Cooling RGB Fan Cooling GPU NVIDIA GeForce RTX 3070 GPU Memory 8GB GDDR6 256-bit System Memory 16GB DDR4 (2 x 8GB) 4800 MHz Max. System Memory 2x DDR5 4800MHz U-DIMM, up to 64GB SSD 1TB M.2 NVMe OS W11HA Chipset Intel B660 Mthrbrd Proprietary (TAS10) Expansion and TPM 2 x M.2 2280 (1 x PCIe/SATA, 1 x PCIe) 2 x 2.5" 1 x TPM connector Wireless LAN WiFi 6E (802.11ax) 2.4Gbps Tri Band 2.4GHz, 5GHz, 6GHz Bluetooth BT 5.2 LAN 1 x RJ45 (2.5GbE) Realtek RTL8125B PSU (W) 750_80+G (SFX) Audio 7.1 HD Audio (Realtek ALC1200-VD1) + S/PDIF Video I/O 1 x HDMI-out (2.1) 3 x DP-out (1.4a) Mic/Headphone I/O 1/1 USB 3.1/3.2 1 x USB 3.2 Gen1 Type-C (front) 1 x USB 3.2 Gen1 Type-A (front) 1 x USB 3.2 Gen1 Type-C (rear) 3 x USB 3.2 Gen1 Type-A (rear) USB 2.0 1 x USB 2.0 (front) 2 x USB 2.0 (rear) ID Color Trident AS (BLK) w/ARGB Bundle Mystic Light RGB, Silent Storm Cooling 3, Glass Panel KB + Mouse MSI Gaming KBMS

CPU AMD Ryzen R5-5600X 6C/12T 3.7-4.6 GHz 32MB Cache CPU Cooler RGB Fan Cooling GPU NVIDIA GeForce RTX 3050 GPU Memory 8GB GDDR6 128-bit System Memory 16GB DDR4 (2 x 8GB) 3200 MHz Max. System Memory 4x DDR4 3200MHz U-DIMM, up to 128GB SSD 500GB M.2 NVMe HDD 0 OS W11H+ Chipset AMD B550 Mthrbrd MSI mATX (PRO) Expansion and TPM 1 x PCIe 4.0 x16, 3 x PCIe 3.0 x16 (x1) 2 x M.2 (1x PCIe 4.0 x4/SATA, 1x PCIe 3.0 x4) 8 x SATA 6Gb/s 1 x TPM connector 2 x 2.5", 2 x 3.5" or 2.5" Wireless LAN WiFi 6 (802.11ax) 2.4Gbps Dual Band 2.4GHz, 5GHz Bluetooth BT 5.2 LAN 1 x RJ45 (1GbE) Realtek 8111HN PSU (W) 550_80+B Audio 7.1 HD Audio (Realtek ALC892/897) Video I/O 1 x HDMI-out (2.1) 3 x DP-out (1.4a) Mic/Headphone I/O 1/1 USB 3.1/3.2 1 x USB 3.2 Gen1 Type-C (front) 2 x USB 3.2 Gen1 Type-A (front) 4 x USB 3.2 Gen1 Type-A (rear) USB 2.0 2 x USB 2.0 (rear) ID Color Sekira 100R (BLK) w/ARGB Bundle Glass Panel KB + Mouse MSI Gaming KBMS Cooling RGB Fan Cooling

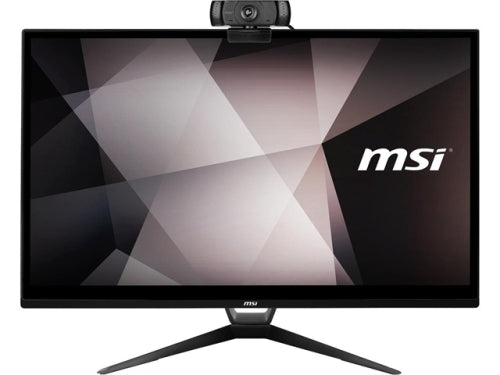

Color BLK Operating System Windows 11 Pro Processor Intel Core TM i3-10100 4C/8T 3.60-4.30 GHz 6MB Cache Chipset H410 Display 21.5" FHD 16:9 (1920x1080) IPS-Grade, LED, Glossy, 10-point Touch Display Type Multi-Touch (10) Graphics Intel UHD 630 Memory 8GB DDR4 (1 x 8GB) Memory Slots 2x DDR4 2666MHz SO-DIMM, up to 32GB Storage 256GB M.2 NVMe SDD, 1 x 2.5" (hot-swappable) available Optical Drive Type N/A LAN 2 x RJ45/NIC (1GbE) WLAN WiFi 5 (802.11ac) 433Mbps Dual Band 2.4GHz, 5GHz Bluetooth BT 4.2 Included Peripherals USB Keyboard and Mouse Audio 2 x 2W Speakers VGA N/A Video I/O 1 x HDMI-out/ 1 x HDMI-In USB 2.0 2 x USB 2.0 ( Rear) USB 3.1/3.2 1 x USB 3.1 Gen1 Type-C (side) 3 x USB 3.1 Gen1 Type-A (1 x side, 2 x rear) COM Port 1 x COM rear Mic in / Headphone out 1 x Mic-In/1 x Headphone-Out Card Reader 3-in-1 (SD, MS, MMC) Webcam External 1080p (FHD) Stand Fixed Power Adapter 120W VESA 100x100mm

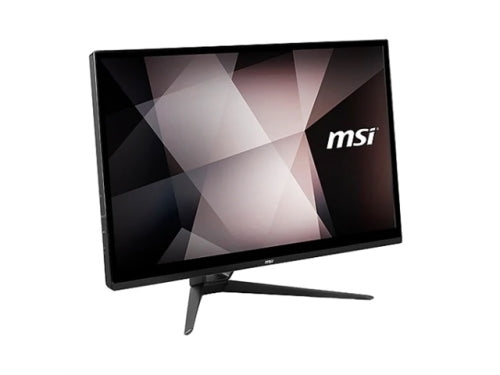

Color BLK Operating System Windows 11 Home Processor Intel Core TM i3-10100 4C/8T 3.60-4.30 GHz 6MB Cache Chipset H410 Display 21.5" FHD 16:9 (1920x1080) IPS-Grade, LED, Glossy, 10-point Touch Display Type Multi-Touch (10) Graphics Intel UHD 630 Memory 8GB DDR4 (1 x 8GB) Memory Slots 2x DDR4 2666MHz SO-DIMM, up to 32GB Storage 256GB M.2 NVMe SDD, 1 x 2.5" (hot-swappable) available Optical Drive Type N/A LAN 2 x RJ45/NIC (1GbE) WLAN WiFi 5 (802.11ac) 433Mbps Dual Band 2.4GHz, 5GHz Bluetooth BT 4.2 Included Peripherals USB Keyboard and Mouse Audio 2 x 2W Speakers VGA N/A Video I/O 1 x HDMI-out/ 1 x HDMI-In USB 2.0 2 x USB 2.0 ( Rear) USB 3.1/3.2 1 x USB 3.1 Gen1 Type-C (side) 3 x USB 3.1 Gen1 Type-A (1 x side, 2 x rear) COM Port 1 x COM rear Mic in / Headphone out 1 x Mic-In/1 x Headphone-Out Card Reader 3-in-1 (SD, MS, MMC) Webcam External 1080p (FHD) Stand Fixed Power Adapter 120W VESA 100x100mm

Color M AM242TP (WHT) Screen Size /Type 23.8" FHD IPS-Grade, LED, Matte Resolution/Ratio 1920x1080 16:9 Touch Option Multi-touch (10) CPU Intel Core i7-1260P 4P+8EC/16T 18MB Cache CPU Frequency 3.4-4.7 GH Chipset Intel SoC Graphic Intel Iris Xe System Memory 16GB DDR4 (2 x 8GB) 3200 MHz Memory Type 2x DDR4 2666/3200MHz SO-DIMM, up to 64GB Storage 512GB M.2 NVMe LAN 1 x RJ45 (1GbE) Wireless WiFi 6 (802.11ax) 2.4Gbps Dual Band 2.4GHz, 5GHz TPM fTPM 2.0 BT BT 5.2 HDMI-out 1 x HDMI-out 1 x HDMI-in USB 3.1/3.2 Type A/C 2 x USB 3.2 Gen2 Type-C (side) 2 x USB 3.2 Gen2 Type-A (side) USB 2.0 2 x USB 2.0 (rear) Keyboard+Mouse Wireless COM Port Expansion 1 x M.2 2280 (PCIe/SATA) 1 x 2.5" (hot-swappable) Mic-in/Headphone-out 1 x combo Speaker 2 x 2.5W Speakers HD Audio (Realtek ALC256) Webcam 2M Built-in 720p (HD) w/IR and Dual-array Mic PSU 120W O/S W11H+ Stand Adjustable Stand VESA Mount 75x75mm

OS Windows 11 Home CPU Intel Core TM i5-10210U 4C/8T 6MB Cache Chipset Intel SoC Motherboard Proprietary CPU Cooler silent fan heatsink VGA Intel UHD Memory (GB) 8GB DDR4 (2 x 4GB) 2666 MHz LAN 1 x RJ45 (1GbE) Intel WGI219V Wireless Communication WiFi 6 (802.11ax) 2.4Gbps Dual Band 2.4GHz, 5GHz Audio 1/1, HD Audio(Realtek ALC887) Video Port 1 x HDMI-out (1.4) 1 x DP-out (1.2) I/O Front: 1 x USB 3.2 Gen1 Type-C Rear: 2 x USB 2.0 Expansion Slots 1 x M.2 2280 (PCIe/SATA) 1 x 2.5" fTPM 2.0 USB Rear: 2 x USB 2.0 HDD/SSD 256GB M.2 NVMe Power Supply 65W Chassis Size 0.66L

Essentials Product Collection Intel NUC Kit with 10th Generation Intel Core Processors Code Name Products formerly Frost Canyon Supported Operating Systems Windows 10, 64-bit Board Number NUC10i7FNBN Board Form Factor UCFF (4" x 4") Socket Soldered-down BGA Internal Drive Form Factor M.2 and 2.5" Drive Number of Internal Drives Supported 2 Lithography 14 nm TDP 25 W DC Input Voltage Supported 19 VDC Processor Included Intel Core i7-10710U Processor (12M Cache, up to 4.70 GHz) Intel vPro Platform Eligibility No Number of Cores 6 Number of Threads 12 Processor Base Frequency 1.10 GHz Max Turbo Frequency 4.70 GHz Supplemental Information Embedded Options Available No Description Does not include 3.5mm audio capabilities, Digital Microphones. Memory and Storage Max Memory Size (dependent on memory type) 64 GB Memory Types DDR4-2666 1.2V SO-DIMM Max Number of Memory Channels 2 Max Memory Bandwidth 42.6 GB/s Max Number of DIMMs 2 ECC Memory Supported No Processor Graphics Integrated Graphics Yes Graphics Output HDMI 2.0b USB-C (DP1.2) Number of Displays Supported 3 Expansion Options PCI Express Revision Gen3 PCI Express Configurations M.2 slot with PCIe X4 lanes Removable Memory Card Slot SDXC with UHS-II support M.2 Card Slot (storage) 22x42/80 I/O Specifications Number of USB Ports 7 USB Configuration 2x front (Type-A, Type-C) and 3x rear USB 3.1 Gen2 (2x Type-A, Type-C) 2x USB 2.0 via internal headers USB Revision 2.0, 3.1 Gen2 USB 2.0 Configuration (External + Internal) 0 + 2 USB 3.0 Configuration (External + Internal) 2B 2F + 0 Total Number of SATA Ports 2 Max Number of SATA 6.0 Gb/s Ports 2 RAID Configuration 2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1) Audio (back channel + front channel) 7.1 digital (HDMI mDP) Integrated LAN Intel Ethernet Connection I219-V Integrated Wireless Intel Wi-Fi 6 AX201 Integrated Bluetooth Yes Consumer Infrared Rx Sensor Yes Additional Headers CEC, 2x USB2.0, FRONT_PANEL, RGB Number of Thunderbolt Ports 1x Thunderbolt 3 Package Specifications Chassis Dimensions 117 x 112 x 51mm Advanced Technologies Intel Optane Memory Supported Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel vPro Platform Eligibility No TPM No Intel HD Audio Technology No Intel Rapid Storage Technology Yes Intel Rapid Storage Technology enterprise No Intel Virtualization Technology (VT-x) Yes Intel Platform Trust Technology (Intel PTT) Yes Security and Reliability Intel AES New Instructions Yes

Color M AM242TP (BLK) Screen Size /Type 23.8" FHD IPS-Grade, LED, Matte Resolution/Ratio 1920x1080 16:9 Touch Option Multi-touch (10) CPU Intel Core i7-1260P 4P+8EC/16T 18MB Cache CPU Frequency 3.4-4.7 GH Chipset Intel SoC Graphic Intel Iris Xe System Memory 16GB DDR4 (2 x 8GB) 3200 MHz Memory Type 2x DDR4 2666/3200MHz SO-DIMM, up to 64GB Storage 512GB M.2 NVMe LAN 1 x RJ45 (1GbE) Wireless WiFi 6 (802.11ax) 2.4Gbps Dual Band 2.4GHz, 5GHz TPM fTPM 2.0 BT BT 5.2 HDMI-out 1 x HDMI-out 1 x HDMI-in USB 3.1/3.2 Type A/C 2 x USB 3.2 Gen2 Type-C (side) 2 x USB 3.2 Gen2 Type-A (side) USB 2.0 2 x USB 2.0 (rear) Keyboard+Mouse Wireless Expansion 1 x M.2 2280 (PCIe/SATA) 1 x 2.5" (hot-swappable) Mic-in/Headphone-out 1 x combo Speaker 2 x 2.5W Speakers HD Audio (Realtek ALC256) Webcam 2M Built-in 720p (HD) w/IR and Dual-array Mic PSU 120W O/S W11H+ Stand Adjustable Stand VESA Mount 75x75mm

Color WHT Operating System Windows 11 Pro Processor Intel Pentium Gold G6405 2C/4T 4MB Cache Chipset H410 Display 21.5" LED FHD (1920x1080) 16:9 Glossy IPS-Grade Multi-Touch Display Type Multi-Touch (10) Graphics Intel UHD 630 Memory 4GB DDR4 (1 x 4GB) Memory Slots 2 x DDR4 2666MHz SO-DIMM, up to 32GB Storage 128GB M.2 SATA SSD Optical Drive Type N/A LAN 2 x RJ45 WLAN Intel Dual Band Wireless-AC 9462 1x1 802.11ac (433 Mbps) Included Peripherals USB Keyboard and Mouse Audio 2 x 2W Speakers VGA N/A Video I/O 1 x HDMI-out/ 1 x HDMI-In USB 2.0 2 x USB 2.0 ( Rear) USB 3.1/3.2 1 x USB 3.1 Gen1 Type-C (side) 3 x USB 3.1 Gen1 Type-A (1 x side, 2 x rear) COM Port 1 x rear Mic in / Headphone out 1/1 Card Reader 3-in-1 (SD, MS, MMC) Webcam External 1080p (FHD) Stand Fixed Power Adapter 120W VESA 100x100mm

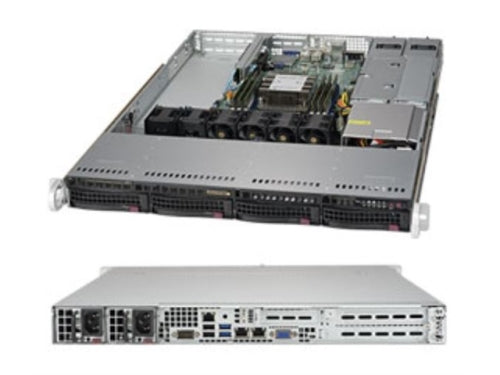

Processor/Cache CPU: - Single Socket P (LGA 3647) - Intel Xeon Scalable Processors - Support CPU TDP 70-205W Cores: Up to 28 Cores with Intel HT Technology System Memory Memory Capacity: - 6 DIMM slots - Up to 768GB ECC 3DS LRDIMM, 192GB ECC RDIMM, DDR4 up to 2666MHz Memory Type: 2666/2400/2133MHz ECC DDR4 SDRAM On-Board Devices Chipset: Intel C622 chipset SATA: SATA3 (6Gbps) RAID 0, 1, 5, 10 Network Controllers: Dual 10GBase-T LAN with Intel X772 + X557 IPMI: - Support for Intelligent Platform Management Interface v.2.0 - IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Video: ASPEED AST2500 BMC Input / Output SATA: 10 SATA3 (6Gbps) ports LAN: - 2 RJ45 10GBase-T LAN ports - 1 RJ45 dedicated IPMI LAN port USB: - 2 USB 3.0 ports (rear) - 2 USB 2.0 ports (rear) Video: 1 VGA port Serial Port / Header: 2 COM ports (1 rear, 1 header) SuperDOM: 2 SuperDOM (Disk on Module) ports with built-in power System BIOS BIOS Type: AMI 32Mb SPI Flash ROM Management Software: - Intel Node Manager - IPMI 2.0 - KVM with dedicated LAN - NMI - SPM, SUM - SuperDoctor 5 - Watch Dog Power Configurations: ACPI / APM Power Management PC Health Monitoring CPU: - Monitors for CPU Cores, Chipset Voltages, Memory. - 4+1 Phase-switching voltage regulator FAN: - Fans with tachometer monitoring - Status monitor for speed control - Pulse Width Modulated (PWM) fan connectors Temperature: - Monitoring for CPU and chassis environment - Thermal Control for fan connectors Form Factor 1U Rackmount Available Colors Black Front Panel Buttons: - Power On/Off button - System Reset button LEDs: - Power LED - Hard drive activity LED - Network activity LEDs - System Overheat LED - Information LED (temp., status) Expansion Slots PCI-Express: - 2 PCI-E 3.0 x16 (FHFL) slots - 1 PCI-E 3.0 x8 (LP) slot Drive Bays Hot-swap: 4 Hot-swap 3.5" SATA3 drive bays M.2: M.2 mini-PCI-e support System Cooling Fans: - 5 Counter-rotation 40x56mm PWM fans - 1 fan for AOC cooling (option) Power Supply 500W Redundant Power Supplies with PMBus Total Output Power: 500W Input: 100-240Vac, 50-60Hz, 6.1-2.6A +12V: Max: 42A / Min: 0.5A +5Vsb: Max: 4A / Min: 0A Output Type: Gold Finger Connector Mating with Molex 45984-4343 With Power Distributor: - +5V: 25A - +3.3V: 12A - -12V: 0.6A Certification: UL/cUL/CB/CE/BSMI/CCC Operating Environment RoHS: RoHS Compliant Environmental Spec.: - Operating Temperature: 10 o C to 35 o C (50 o F to 95 o F) - Non-operating Temperature: -40 o C to 60 o C (-40 o F to 140 o F) - Operating Relative Humidity: 8% to 90% (non-condensing) - Non-operating Relative Humidity: 5% to 95% (non-condensing) Item Dimension ( L inch x W inch x H inch) 34 x 24 x 9 Weight 48.00 lb

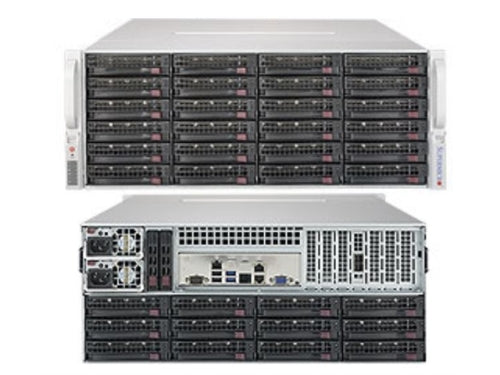

Processor/Cache CPU: - Single Socket P (LGA 3647) - Intel Xeon Scalable Processors - Support CPU TDP 70-205W Cores: Up to 28 Cores with Intel HT Technology System Memory Memory Capacity - 8 DIMM slots - Up to 1TB ECC 3DS LRDIMM, 192GB ECC RDIMM, DDR4 up to 2666MHz Memory Type: 2666/2400/2133MHz ECC DDR4 SDRAM On-Board Devices Chipset: Intel C622 chipset SATA: - SATA3 (6Gbps) via C622 controller - RAID 0, 1, 5, 10 support SAS: - SAS3 (12Gbps) via Broadcom 3008 - SW RAID 0, 1, 10 Network Controllers: Dual LAN with 10GBase-T with Intel X722 + X557 IPMI: - Support for Intelligent Platform Management Interface v.2.0 - IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Graphics: ASPEED AST2500 BMC Input / Output LAN: - 2 RJ45 10GBase-T LAN ports - 1 RJ45 Dedicated IPMI LAN port USB: - 2x USB 3.0 ports (rear) - 2x USB 2.0 ports (rear) VGA: 1x VGA port Serial Port / Header: 2 COM Ports (1 rear, 1 header) System BIOS BIOS Type: AMI UEFI Management Software: - Intel Node Manager - IPMI 2.0 - KVM with dedicated LAN - NMI - SPM, SUM - SuperDoctor 5 - Watch Dog Power Configurations: ACPI Power Management PC Health Monitoring CPU: - Monitors for CPU Cores, Chipset Voltages, Memory. - 4+1 Phase-switching voltage regulator FAN: - Fans with tachometer monitoring - Status monitor for speed control - Pulse Width Modulated (PWM) fan connectors Temperature: - Monitoring for CPU and chassis environment - Thermal Control for fan connectors Form Factor 4U Rackmount Available Colors Black Front Panel Buttons: - Power On/Off button - System Reset button LEDs: - Power status LED - Hard drive activity LED - Network activity LEDs - System Overheat LED - Power fail LED Expansion Slots PCI-Express: - 1 PCI-E 3.0 x16 - 1 PCI-E 3.0 x8 - 1 PCI-E 3.0 x8 - 1 PCI-E 2.0 x4 (in x8) Drive Bays / Storage Hot-swap: 36 Hot-swap 3.5" SAS/SATA drive bays (24 front + 12 rear drive bays) Fixed: 4 Internal fixed 2.5" drive bays Optional: 2 Hot-swap 2.5" NVMe/SATA drive bays (rear) M.2: - Interface: PCIe 3.0 x4 - Form Factor: 2280 Backplane SAS3 / SATA3 single expander per backplane System Cooling Fans: 7 High-performance 80mm cooling fans Power Supply (76mm Width) 1200W Redundant Power Supplies with PMBus Total Output Power: 1000W/1200W Input: - 100-127Vac / 15-12A / 50-60Hz - 200-240Vac / 8.5-7A / 50-60Hz +12V: - Max: 83A / Min: 0A (100-127Vac) - Max: 100A / Min: 0A (200-240Vac) +5Vsb: Max: 4A / Min: 0A Output Type: 19 Pairs Gold Finger Connector Certification: UL/cUL/CB/BSMI/CE/CCC Operating Environment RoHS: RoHS Compliant Environmental Spec. : - Operating Temperature: 10 o C to 35 o C (50 o F to 95 o F) - Non-operating Temperature: -40 o C to 60 o C (-40 o F to 140 o F) - Operating Relative Humidity: 8% to 90% (non-condensing) - Non-operating Relative Humidity: 5% to 95% (non-condensing) Item Dimension ( L inch x W inch x H inch) 40 x 27 x 18 Weight 140.00 lb

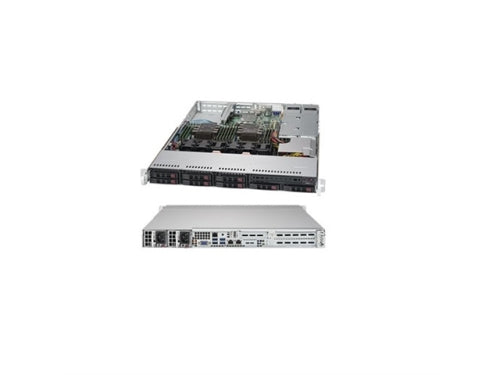

Motherboard Super X11DDW-L Processor/Cache CPU: Dual Socket P (LGA 3647) Intel Xeon Scalable Processors,Dual UPI up to 10.4GT/s Support CPU TDP 70-165W with IVR Cores: Up to 28 Cores with Intel HT Technology System Memory Memory Capacity: 12 DIMM slots Up to 1.5TB ECC 3DS LRDIMM, 768GB ECC RDIMM, DDR4 up to 2666MHz Memory Type: 2666/2400/2133MHz ECC DDR4 SDRAM On-Board Devices Chipset: Intel C621 chipset SATA: SATA3 (6Gbps) RAID 0, 1, 5, 10 Network Controllers: Dual LAN with Gigabit Ethernet from C621 IPMI: Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Video: ASPEED AST2500 BMC Input / Output SATA: 8 SATA3 (6 Gbps) ports LAN: 2 RJ45 Gigabit Ethernet ports 1 RJ45 Dedicated IPMI LAN port USB: 4 USB 3.0 ports (rear) Video: 1 VGA port DOM: 2 SuperDOM (Disk on Module) ports System BIOS BIOS Type: AMI 32Mb SPI Flash ROM Management Software: Intel Node Manager IPMI 2.0 KVM with dedicated LAN SSM, SPM, SUM SuperDoctor 5 Watch Dog Power Configurations: ACPI / APM Power Management PC Health Monitoring CPU: Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator FAN: Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature: Monitoring for CPU and chassis environment Thermal Control for 8x fan connectors Chassis Form Factor 1U Rackmount Model CSE-113AC2-R706WB2 Dimensions and Weight Available Colors Black Front Panel Buttons Power On/Off button UID button LEDs Power status LED HDD activity LEDNetwork activity LEDs Universal Information (UID) LED Expansion Slots PCI-Express 2 PCI-E 3.0 x16 (FHHL) slots 1 PCI-E 3.0 x8 (LP) slot 1 PCI-E 3.0 x16 for Add-on-Module (AOM) 1 PCI-E M.2 SSD slot Drive Bays Hot-swap 8 Hot-swap 2.5" SAS/SATA drive bays Peripheral 1 Slim DVD-ROM drive bay (optional) Backplane SAS/SATA HDD Backplane System Cooling Fans 4 Counter-rotating 4cm PWM fans, 2 fans for cooling AOC AC/DC240V Input Redundant Power Supply 700W/750W Redundant Power Supplies with PMBus Total Output Power 700W/750W Dimension(W x H x L) 54.5 x 40.25 x 320 mm Input 100 - 140Vac / 8 - 6A / 50-60Hz 200 - 240Vac / 4.5 - 3.8A / 50-60Hz 200 - 240Vdc / 4.5 - 3.8A (CCC Only) +12V Max: 58A / Min: 0.5A (100 - 140Vac) Max: 62A / Min: 0.5A (200 - 240Vac) Max: 62A / Min: 0.5A (200 - 240Vdc) (CB/CCC Only) +5V sb Max: 3A / Min: 0A Output Type Gold Finger Connector Mating with Molex 45984-4343 Certification UL/cUL/CB/BSMI/CE/CCC Platinum Certified Test Report Operating Environment RoHS RoHS Compliant Environmental Spec. Operating Temperature: 10 o to 35 o C (50 o to 95 o F) Non-operating Temperature: -40 o to 60 o CC (-40 o to 140 o F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) Item Dimension (L inchxW inchxH inch) 24 x 18 x 2 Weight 46.00lb

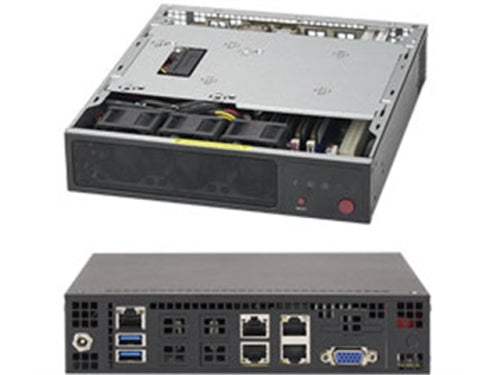

Processor/Cache CPU : Intel Xeon processor D-1518, 2.2GHz CPU TDP support 35W FCBGA 1667 Cores / Cache : 4 Cores, 8 Threads / 6MB System Memory Memory Capacity : 4x DDR4 DIMM sockets Supports up to 128GB DDR4 ECC RDIMM Supports up to 64GB DDR4 ECC/non-ECC UDIMM Memory Type : 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM DIMM Sizes : 32GB, 16GB, 8GB, 4GB Memory Voltage : 1.2 V Error Detection : Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices SATA : SoC controller for SATA3 (6Gbps) ports Network Controllers : Dual 10G SFP+ from D-1500 SoC Quad 1GbE with Intel I350-AM4 Dual 1GbE with Intel I210 IPMI : IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Dedicated RJ45 IPMI LAN port Graphics : BMC integrated ASPEED AST2400 Input / Output SATA : 4x SATA3 (6Gbps) ports LAN : 2x 10G SFP+ ports, 6x RJ45 Gigabit Ethernet LAN ports, 1x RJ45 Dedicated IPMI LAN port USB : 2x USB 3.0 ports (rear) DOM : 1x SATA DOM (Disk on Module) power connector VGA : 1x VGA Port Others : TPM 1.2 header Chassis Form Factor : 1U Rackmount Model : CSE-505-203B Front Panel Buttons : Power On/Off button System Reset button LEDs : Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Information LED (temp., status) Expansion Slots PCI-E : 1x PCIe 3.0 x8 slots M.2 PCIe 3.0 x4, M Key 2242/2280/22110 Mini-PCIe with mSATA support Drive Bays HDD : 1x 3.5 inch or 4x 2.5 inch fixed drive bays with bracket Power Supply 200W Low Noise AC-DC power supply with PFC AC Voltage : 100 - 240V, 50-60Hz, 2.6 Amp Max +5V : 8.0 Amp (max.) +5V : standby 2.0 Amp (max.) +12V : 16 Amp (max.) -12V : 0.5 Amp (max.) +3.3V : 8.0 Amp (max.) BIOS Type 128Mb SPI Flash with AMI BIOS BIOS Features PCI 3.0 ACPI 5.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 2.8 UEFI 2.4 RTC (Real Time Clock) Wakeup RoHS RoHS Compliant Environmental Spec. Operating Temperature : 10 o C to 40 o C (50 o F to 104 o F) Non-operating Temperature : -40 o C to 70 o C (-40 o F to 158 o F) Operating Relative Humidity : 8 percent to 90 percent (non-condensing) Non-operating Relative Humidity : 5 percent to 95 percent (non-condensing)

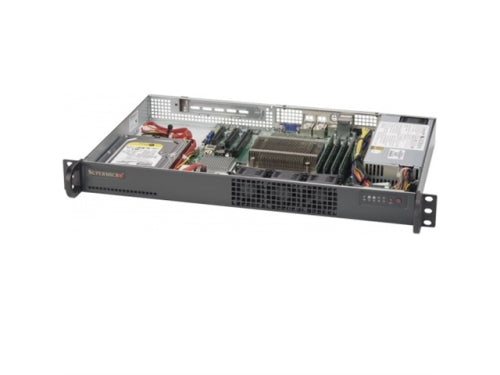

Processor/Cache CPU : Single Socket H4 (LGA 1151) supports: Intel Xeon processor E3-1200 v5, Intel 6th Gen Core i3 CPU TDP up to 45W, 80W option fan System Memory Memory Capacity : 4x 288-pin DDR4 DIMM slots Up to 64GB DDR4 ECC UDIMM Memory Type : 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs DIMM Sizes : 16GB, 8GB, 4GB Memory Voltage : 1.2 V Error Detection : Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset : Intel C232 chipset SATA : SATA3 (6Gbps) via C232 controller RAID 0, 1, 5, 10 support IPMI : Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC Network Controllers : Dual Intel I210-AT Gigabit Ethernet LAN ports Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Video : ASPEED AST2400 BMC Input / Output SATA : 2x SATA3 (6Gbps) ports LAN : 2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Shared IPMI LAN port USB : USB 3.0 2x USB 2.0 ports Video : 1x VGA port Serial Port / Header : 1x COM ports (1 rear) SuperDOM : 2x SuperDOM (Disk on Module) ports with built-in power PC Health Monitoring Voltage : Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. FAN : Total of 4 fan headers supporting up to 4 fans 4 fans with tachometer status monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors Temperature : Monitoring for CPU and chassis environment CPU thermal trip support I2C temperature sensing logic Thermal Monitor 2 (TM2) support PECI LED : CPU / System Overheat LED Suspend static indicator LED UID/Remote UID Other Features : Chassis intrusion detection Chassis intrusion header Chipkill support RoHS, Halogen Free Chassis Form Factor : 1U Rackmount Model : CSE-510-203B Front Panel Buttons : Power On/Off button System Reset button LEDs : Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Information LED (temp., status) Expansion Slots PCI-Express : 1x PCI-E 3.0 x8 AOC slot Drive Bays Optional : 1x 3.5" or 2x 2.5" internal drive bays (fixed) System Cooling Fans : 2x 40x28mm 4-pin PWM Cooling Fans 1x FAN-0147L4 option for 80W CPU Power Supply 200W Low Noise AC-DC power supply with PFC AC Voltage : 100 - 240V, 50-60Hz, 2.6 Amp Max +5V : 8.0 Amp (max.) +5V standby : 2.0 Amp (max.) +12V : 16 Amp (max.) -12V : 0.5 Amp (max.) +3.3V : 8.0 Amp (max.) System BIOS BIOS Type : 8MB SPI Flash EEPROM with AMI BIOS BIOS Features : DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 USB Keyboard support SMBIOS 2.3 Operating Environment / Compliance RoHS : RoHS Compliant Environmental Spec. : Operating Temperature : 10 o C to 35 o C (50 o F to 95 o F) Non-operating Temperature : -40 o C to 70 o C (-40 o F to 158 o F) Operating Relative Humidity : 8% to 90% (non-condensing) Non-operating Relative Humidity : 5% to 95% (non-condensing)

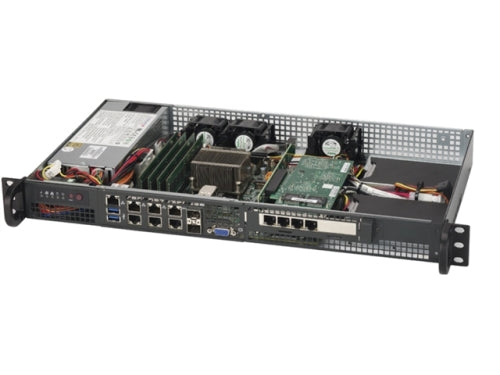

Form Factor Mini-1U Processor/Cache CPU: - Intel Xeon Processor D-1528 - FCBGA 1667 - CPU TDP Support 35W, 9MB, 6-Cores, 12-Threads, 1.9 to 2.2GHz System Memory Memory Capacity: - 4 x DDR4 DIMM Sockets - Supports up to 128GB DDR4 ECC RDIMM - Supports up to 64GB DDR4 ECC/Non-ECC UDIMM Memory Type: 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM DIMM Sizes: 32GB, 16GB, 8GB, 4GB Memory Voltage: 1.2V Error Detection: - Corrects Single Bit Errors - Detects Double Bit Errors (Using ECC Memory) On-Board Devices Chipset: System on Chip SATA: SoC Controller for 6 SATA 3 (6Gbps) Ports Network Controllers: - Dual Lan via Intel i350-AM2 Gigabit Ethernet - Dual LAN via SoC 10GBase-T - Virtual Machine Device Queues reduce I/O Overhead - Supports 10GBASE-T, 100BASE-TX and 1000BASE-T RJ45 Output - Realtek RTL8201N PHY (Dedicated IPMI) IPMI: - Support for Intelligent Platform management Interface 2.0 - IPMI 2.0 with Virtual media over LAN and KVM-Over-LAN Support Graphics: Aspeed AST2400 Input/Output SATA: 6 SATA3 (6Gbps) Ports LAN: - 2 RJ45 Gigabit Ethernet LAN Ports - 2 RJ45 10GBase-T Ports - 1 RJ45 Dedicated IPMI LAN Ports USB: 2 x USB 3.0 Ports (Rear) Display: 1 x VGA Ports DOM: 2 x SuperDOM (Disk on Module) Power Connections TPM: TPM 2.0 Header Front Panel Buttons: Power On/Off Button LEDs: Power LED (Hard Drive Activity LED) Expansion Slots M.2: - Interface: PCI-E 3.0 x4 Form Factor: M Key 2242/2280/22110 Support SATA Devices Drive Bays Internal: 2.5inch Fixed drive bay with bracket (Design for 9.5mm thickness HDD with Low Profile memory) System Cooling Fans: Passive CPU Heat Sink and 2x 40mm Chassis Fan Power Supply DC Power Adapter System BIOs BIOs Type: 128MB SPI Flash with AMI BIOs BIOs Features: - PCI 3.0 - ACPI 5.0 USB Keyboard Support - Hardware BIOs Virus Protection -SMBIOS 2.8 - UEFI 2.4 - RTC (Real Time Clock) Wake up Management Software: - IPMI 2.0 - KVM with Dedicated LAN - NMI - SUM - SuperDoctor5 - WatchDog Power Configuration: - ACPI/APM Power Management - CPU Fan Auto off in Sleep Mode - Power on Mode for AC Power Recovery Fan: - Fans with tachometer status monitoring - Status monitor for speed control - Low noise fan speed control - Pulse Width Modulated (PWM) fan connectors Operating Environment/Compliance RoHS: RoHS Compliant Environment Spec: - Operating Temperature: 0 C to 40 C (32 F to 104 F) - Non-Operating Temperature: -40 C to 70 C (-40 F to 158 F) - Operating Relative Humidity: 8% to 90% (Non-Condensing) - Non-Operating Relative Humidity: 5% to 95% (Non-Condensing)

Processor/Cache CPU: - Intel Xeon processor D-1518, 2.2GHz, CPU TDP support 35W - FCBGA 1667 Cores / Cache: 4 Cores, 8 Threads / 6MB System Memory - Memory Capacity: 4x DDR4 DIMM sockets - Supports up to 128GB DDR4 ECC RDIMM - Supports up to 64GB DDR4 ECC/non-ECC UDIMM Memory Type: 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM DIMM Sizes: 32GB, 16GB, 8GB, 4GB Memory Voltage: 1.2 V Error Detection: - Corrects single-bit errors - Detects double-bit errors (using ECC memory) On-Board Devices Chipset: System on Chip SATA:SoC controller for 4 SATA3 (6Gbps) ports RAID 0,1,5,10 RSTe Network Controllers: - Dual 10G SFP+ from D-1500 SoC - Quad 1GbE with Intel I350-AM4 - Dual 1GbE with Intel I210 IPMI: - Support for Intelligent Platform Management Interface v.2.0 - IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Graphics: Aspeed AST2400 USB 3.0: Intel SoC TPM: TPM 2.0 header Input / Output SATA: 4 SATA3 (6Gbps) ports LAN: - 2 10G SFP+ LAN ports - 6 1GbE LAN ports - 1 Dedicated IPMI LAN port USB: 2 USB 3.0 ports (rear) Display: 1 VGA port DOM: 2 SuperDOM (Disk on Module) power connectors TPM: TPM 2.0 header Chassis Form Factor: Mini-1U Model: CSE-E300 Available Colors Black Front Panel Buttons: Power On/Off button LEDs: Power LED (Hard drive activity LED) Expansion Slots PCI-Express: 1 PCI-E 3.0 x8 slots M.2: - Interface: PCI-E 3.0 x4 - Form Factor: M Key 2242/2280/22110 - Support SATA devices Mini PCI-E: - Interface: PCI-E 2.0 x1 - Support mSATA Drive Bays Internal: 1x 2.5 inch fixed drive bay with bracket (when AOC area is not occupied) System Cooling Fans: Passive CPU heat sink and max. 3x 40mm chassis fans Power Supply DC Power Adapter System BIOS BIOS Type: 128Mb SPI Flash with AMI BIOS BIOS Features: - PCI 3.0 - ACPI 5.0 - USB Keyboard support - Hardware BIOS Virus protection - SMBIOS 2.8 - UEFI 2.4 - RTC (Real Time Clock) Wakeup Management Software: - Intel Node Manager - IPMI 2.0 - KVM with dedicated LAN - NMI - SUM - SuperDoctor 5 - Watch Dog Power Configurations: - ACPI Power Management - +12V DC Power Input - Control of power-on for recovery from AC power loss - CPU thermal trip support for processor protection - M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL Fan: - Fans with tachometer status monitoring - Status monitor for speed control - Low noise fan speed control - Pulse Width Modulated (PWM) fan connectors Operating Environment / Compliance RoHS: RoHS Compliant Environmental Spec. Operating Temperature: 0 o C to 40 o C (32 o F to 104 o F) Non-operating Temperature: -40 o C to 70 o C (-40 o F to 158 o F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

MPN PR22XT10M484 Manufacturer Part Number PR22XT10M484 Color WHT Operating System Windows 11 Home Processor Intel Core i3-10100 4C/8T 3.60-4.30 GHz 6MB Cache Chipset H410 Display 21.5" FHD 16:9 (1920x1080) IPS-Grade, LED, Glossy, 10-point Touch Display Type Multi-Touch (10) Graphics Intel UHD 630 Memory 8GB DDR4 (1 x 8GB) Memory Slots 2x DDR4 2666MHz SO-DIMM, up to 32GB Storage 256GB M.2 NVMe SDD, 1 x 2.5" (hot-swappable) available Optical Drive Type N/A LAN 2 x RJ45/NIC (1GbE) WLAN WiFi 5 (802.11ac) 433Mbps Dual Band 2.4GHz, 5GHz Bluetooth BT 4.2 Included Peripherals USB Keyboard and Mouse Audio 2 x 2W Speakers VGA N/A Video I/O 1 x HDMI-out/ 1 x HDMI-In USB 2.0 2 x USB 2.0 ( Rear) USB 3.1/3.2 1 x USB 3.1 Gen1 Type-C (side) 3 x USB 3.1 Gen1 Type-A (1 x side, 2 x rear) COM Port 1 x COM rear Mic in / Headphone out 1 x Mic-In/1 x Headphone-Out Card Reader 3-in-1 (SD, MS, MMC) Webcam External 1080p (FHD) Stand Fixed Power Adapter 120W VESA 100x100mm

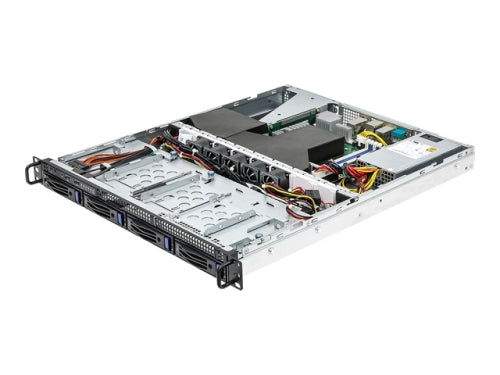

MPN 1U4LW-X570/2L2T System Form Factor 1U Rackmount Support MB X570D4U-2L2T Front Panel Buttons Power button w/ LED, UID w/LED, System reset LEDs LANs, HDD activity, System health I/O Ports 2 Type-A (USB 3.2 Gen1) External Drive Bay / Storage Front Side Drive Bay 4 Hot-swap 3.5" HDD/SSD (SATA 6Gb/s) bays 1 Slim ODD (BTO) Internal Side 3 fixed 2.5" HDD/SSD (SATA 6Gb/s) bays 1 M-key (PCIe4.0 x4 or SATA 6Gb/s), Form factor: 22110/2280/2260/2242 (CPU) 1 M-key (PCIe4.0 x4 or SATA 6Gb/s), Form factor: 2280/2260/2242 (X570) -Supports PCIe3.0 when using AMD Ryzen 3000 Series Processors with Radeon Graphics Power Supply Type Single PSU Output Watts 400W Efficiency 80-Plus Gold AC Input 100-240V, 50-60Hz System Fan Fan 5 PWM Easy-swap 40x28 mm fans Processor System CPU supports: AMD Ryzen 5000 Series Desktop Processors AMD Ryzen TM 4000 G-Series Desktop Processors with Radeon TM Graphics AMD Ryzen TM PRO 4000 and 3000 Series Desktop Processors 3rd Gen AMD Ryzen TM Desktop Processors AMD Ryzen 3000 Series Processors with Radeon Graphics Socket AM4 PGA 1331 Chipset AMD X570 System Memory Capacity 4 DIMM slots (2DPC) Type 288-pin DDR4 ECC and non-ECC UDIMM -For AMD Ryzen Desktop Processors with Radeon Graphics, ECC support is only with Processors with PRO technologies. DIMM Size Per DIMM up to 32GB per DIMM DIMM Frequency up to 3200 MHz - AMD Ryzen 3000 Series Processors with Radeon Graphics support up to 2666 MHz Voltage 1.2V Expansion Slot PCIe x 16 Supports 1 FHHL PCIe4.0 x16 via RB1UX16_G4 -Supports PCIe3.0 x8 when using AMD Ryzen 3000 Series Processors with Radeon Graphics Management BMC Controller ASPEED AST2500 IPMI Dedicated GLAN 1 x Realtek RTL8211E for dedicated management GLAN Graphics Controller ASPEED AST2500: 1 DB15 (VGA) AMD Ryzen Desktop Processors with Radeon Graphics: 1 HDMI VRAM DDR4 16MB Rear Panel I/O VGA Port 1 D-Sub USB 3.2 Gen2 Port2 Type-A Lan Port 2 RJ45(10GbE) by Intel X710-AT2 2 RJ45(1GbE) by Intel i210 Dedicate LAN 1 dedicated IPMI Serial Port 1 UID Button/UID LED 1 System BIOS BIOS Type 32MB AMI UEFI Legal BIOS BIOS Features Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0 Support, ASRock Rack Instant Flash Environment Temperature Operation temperature: 10 o C to 35 o C / Non operation temperature: -40 o C to 70 o C
