Fans, Heatsinks & Cooling

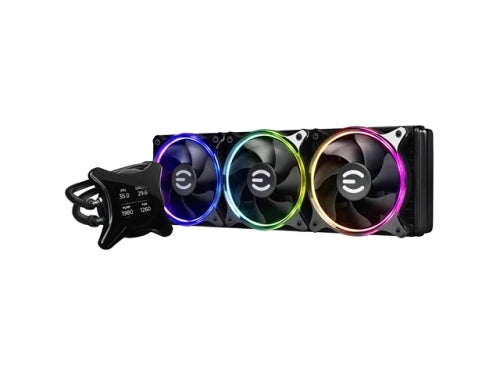

MPN 400-HY-CX36-V1 Waterblock Premium Retention parts for Intel LGA1700/1200/115X AMD retention ring for AM5/AM4/TR4 (bracket not included) Material: 100% Copper LED: Fully-controllable 2.1" 480 x 480 RGB LCD Display Pump Noise Level: 20dB(A) (MAX) LCD Display Size: 2.1 Radiator Material: Aluminum Fan Bearing: Hydro-Dynamic Bearing Speed: 0-2580 RPM Airflow: 73.15 CFM (MAX) Static Pressure: 3.77 mm-H2O (MAX) Noise Level: 35.0 dB(A) (MAX) LED: Fully-customizable ARGB

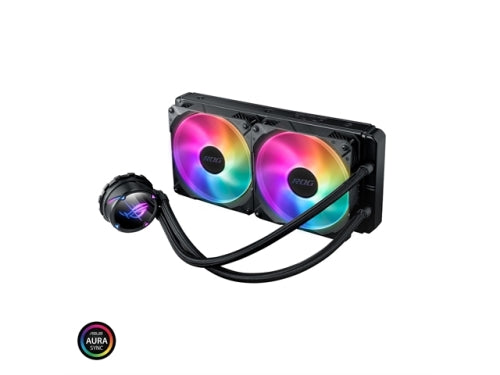

Water Block Block Material (CPU Plate): Copper Radiator Radiator Material: Aluminum Tube: Sleeved Rubber tube Tube Length: 380 mm Fan Fan: ROG Designed Radiator Fan - Size: 2 x Fan Slots (120mm) - Speed: 800 - 2500 RPM +/- 10% - Static Pressure: 5.0 mmH2O - Air Flow: 80.95 CFM / 137.5 m3h - Noise: 37.6 dB(A) - Control Mode: PWM/ DC Special Features AURA Sync Support: Yes Compatibility Intel: LGA 1700, 1200, 115x, 2011, 2011-3, 2066 AMD: AM4, TR4 Note Package Content 1 x Liquid Cooler (pre-applied thermal compound) 2 x 120 mm Radiator Fan 1 x USB cable for software control 1 x 1-to-2 Fan Splitter Cable 1 x Accessory Pack of Screws and Brackets 1 x Quick Start Guide 1 x ROG Sticker Note The mounting bracket is bundled with TR4 CPU Package

Model UNI FAN SL120 Rated Voltage DC 12V(FAN) and 5V(LED) Fan Speed 800 to 1900RPM Max. Air Pressure 2.54mmH2O Max. Air Flow 58.54CFM Acoustical Noise (Min-Max.) 17dB to 31dB Locked Current is more than or equal to 0.5mA Bearing Type Fluid Dynamic Bearing(FDB) Operation Voltage DC 12V and 5V Start-up Voltage DC 6.0V Input Current 0.18A(FAN) / 0.6A (LED) Input Power 3.5Watt

Application X9 2U WIO+ DP Servers Socket Type LGA2011 Supported CPU Intel Xeon E5-2600 Series Mounting Method Screws and Springs for Narrow ILM

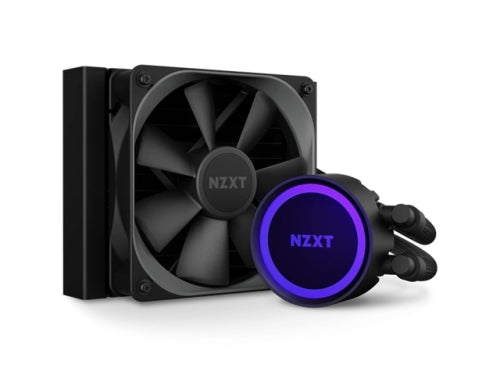

MPN RL-KR120-B1 Water Block Dimensions Diameter: 66mm / H: 43mm Material (Block) Copper Material (Housing) Plastic Connector Cable 1 x 500mm NZXT RGB Connector (Male) / 1 x 500mm NZXT RGB Connector (Female) Pump Motor Speed 4,200 + 420 RPM Power 12VDC, 0.34A Radiator Dimensions 120 x 152 x 32mm Material Aluminum Tube Length 400mm Material Ultra-low Evaporation Rubber with Nylon Braided Sleeve Cap Material Plastic LEDs 9 LEDs RGB Input Voltage 5V DC Lighting Support 5V 3-pin ARGB / 5V 4-pin NZXT RGB Fan Model Aer P120 Quantity 1 Dimension 120 x 120 x 26mm Speed 500-2,000 + 300 RPM Air Flow 18.28 - 73.11 CFM Air Pressure 0.18 - 2.93mm-H2O Noise 21-36dBA Bearing Fluid Dynamic Bearing Power Consumption 12V DC, 0.32A, 3.84W Connector 4-pin PWM Life 60,000 hours / 6 Years Compatible Socket and CPU Intel Socket LGA 1200, 115X, 1366, 2011, 2011-3, 2066 AMD AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2 General Model Number RL-KR120-B1

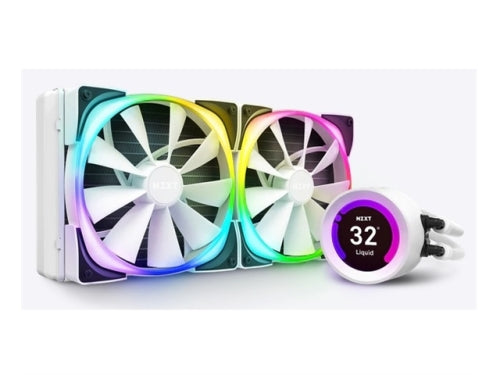

MPN RL-KRZ63-RW Water Block Material (Block) Copper Material (Housing) Plastic Pump Motor Speed 800 - 2,800 +/- 300 RPM Power 12V DC, 0.3A Radiator Material Aluminum Tube Length 400mm Material Ultra-low Evaporation Rubber with Nylon Braided Sleeve Cap Material Aluminum, Plastic Fan Control Yes NZXT RGB Channel Connector 1 Rotation Orientation Software adjustable Default, +90, +180, and -90 Degrees LCD Display Panel Active Area 2.36" (60mm) Diameter Color 24-bit True Color LCD Resolution 320 x 320px Brightness 650 cd/m 2 Fan Specs Model Aer RGB 2 140mm Quantity 2 Speed 500 - 1,500 +/- 300RPM Airflow 30.39 - 91.19 CFM Air Pressure 0.17 - 1.52 mm-H2O Noise 22 - 33 dBA Bearing Fluid Dynamic Bearing Power Consumption 12V DC, 0.32A, 3.8W Fan Connector 4-pin PWM Life 60,000 hours / 6 Years Compatible Socket and CPU Intel Socket LGA 1200, 115X, 1366, 2011, 2011-3, 2066 AMD AMD Socket AM4, sTRX4, TR4 (Threadripper bracket not included)

MPN ROG RYUJIN II 240 Water Block Water block dimention: 78.15 x 87.5 x 81 mm Block Material (CPU Plate): Copper - Speed: 4,800 RPM +/- 10% - Air Pressure: 3.23 mmH2O - Air Flow: 19.41 CFM Pump Pump Solution: 7th gen Asetek pump Motor Speed: 840 - 2,800 +/- 300 RPM Power: 12V DC, 0.3A Radiator Radiator Dimension: 121 x 272 x 27 mm Radiator Material: Aluminum Tube: Sleeved Rubber tube Tube Length: 380 mm Fan Fan: Noctua NF-F12 InductrialPPC 2000 PWM Fan - Size: 2 x Fan Slots (120mm) - Dimension: 120 x 120 x 25 mm - Speed: 450 - 2000 RPM +/- 10% - Static Pressure: 3.94 mmH2O - Air Flow: 71.6 CFM / 121.8 m3h - Noise: 29.7 dB(A) - Control Mode: PWM/ DC Special Features Display: 3.5" Full Color LCD Compatibility Intel: LGA 1700, 1200, 115x, 2011, 2011-3, 2066 AMD: AM4, TR4 Package Content 1 x Liquid Cooler (pre-applied thermal compound) 2 x 120 mm Radiator Fan 1 x ARGB Input Cable 1 x 1-to-2 Fan Splitter Cable 1 x Accessory Pack of Screws and Brackets 1 x Quick Start Guide 1 x ROG Sticker 1 x ROG Fan Controller 3M Mounting Tape Note The mounting bracket is bundled with TR4 CPU Package.

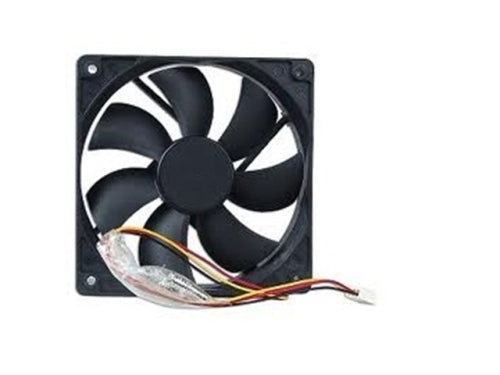

MPN FAN-0124L4 Rated Current: 0.13A Fan Speed: 1850RPM Air Flow: 58.8CFM Static Pressure: 0.09 Noise: 24.0dBA Application: SC732

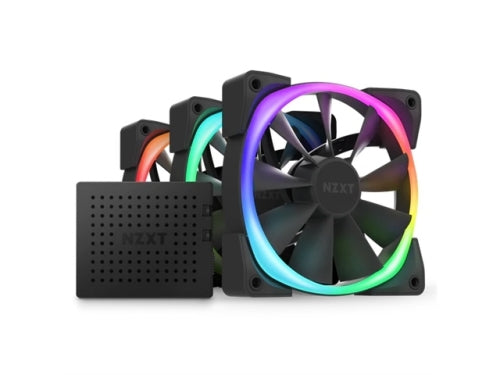

MPN HF-2812C-TW Key Specs Material(s) Plastic, rubber, PCB Fan Rated Voltage 12V DC, 0.18A, 2.16W LED Quantity 8 Bearing Fluid Dynamic Bearing (FDB) Fan Connector 4-pin PWM Mounting Magnet, Velcro Connector 12V DC / 2.6A Cooling Speed 500 - 1,500 +/- 300RPM Airflow 17.48 - 52.44 CFM Static Pressure 0.15 - 1.35 mm-H2O Noise 22 - 33 dBA Fan Life Hours 60,000 Years 6 Output Channel Voltage 5V DC RGB Lighting Channels 2 Fan Channels 3 LED Color RGB

MPN HF-2812C-TB Key Specs Material(s) Plastic, rubber, PCB Fan Rated Voltage 12V DC, 0.18A, 2.16W LED Quantity 8 Bearing Fluid Dynamic Bearing (FDB) Fan Connector 4-pin PWM Mounting Magnet, Velcro Connector 12V DC / 2.6A Cooling Speed 500 - 1,500 +/- 300RPM Airflow 17.48 - 52.44 CFM Static Pressure 0.15 - 1.35 mm-H2O Noise 22 - 33 dBA Fan Life Hours 60,000 Years 6 Output Channel Voltage 5V DC RGB Lighting Channels 2 Fan Channels 3 LED Color RGB

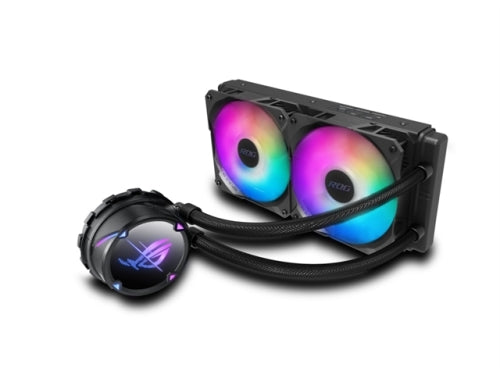

MPN ROG STRIX LC II 240 ARGB Water Block Water block dimention:80 x 80 x 45 mm Block Material (CPU Plate):Copper Radiator Radiator Dimension: 121 x 272 x 27 mm Radiator Material: Aluminum Tube: Sleeved Rubber tube Tube Length: 380 mm Fan Fan:ROG Designed ARGB Radiator Fan - Size: 2 x Fan Slots (120mm) - Speed: 800 - 2500 RPM +/- 10% - Static Pressure:5.0 mmH2O - Air Flow: 80.95 CFM / 137.5 m3h - Noise: 37.6 dB(A) - Control Mode: PWM/ DC Special Features AURA Sync Support:Yes Compatibility Intel: LGA 1700, 1200, 115x, 2011, 2011-3, 2066 AMD: AM4, TR4 Note Package Content 1 x Liquid Cooler (pre-applied thermal compound) 2 x 120 mm ARGB Radiator Fan 1 x USB cable for software control 1 x 1-to-2 Fan Splitter Cable 1 x 1 to 4 ARGB spliter cable 1 x Accessory Pack of Screws and Brackets 1 x Quick Start Guide 1 x ROG Sticker Note - The mounting bracket is bundled with TR4 CPU Package

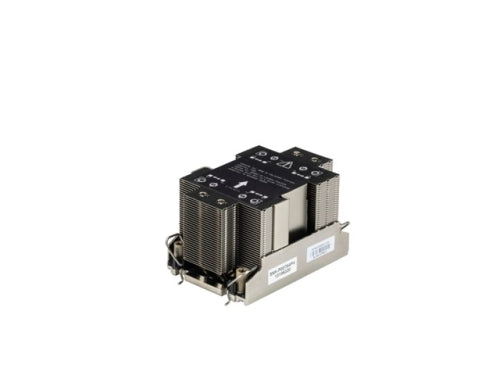

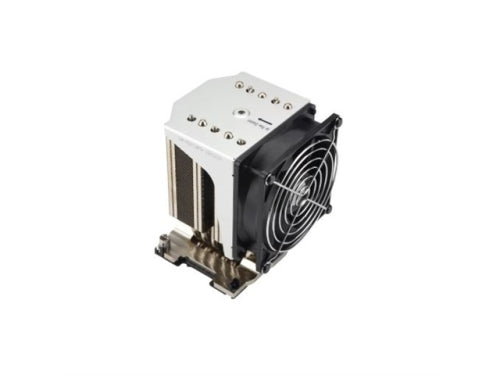

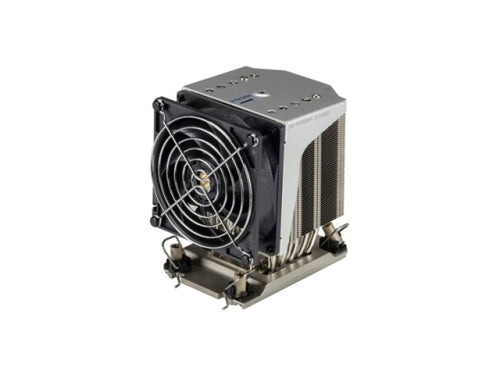

MPN SNK-P0081AP4 Server Form Factor 4U Cooling Type Active CPU Configuration Uni Processor, Dual Processor Supported CPU SKU 3rd Gen Intel Xeon Scalable Processors Supported CPU Socket FCLGA4189 Supported CPU TDP Up to 270 Watts Attached Cooling Fan Speed Control: 4-pin PWM Rated Voltage: 12.0 VDC Rated Speed: 5,000 RPM Acoustic Noise: 43 dB(A) at Rated Speed Position: Front Side MTBF/MTTF: 3,000,000 Hours Product Environmental Compliance RoHS and REACH compliant, details available upon request

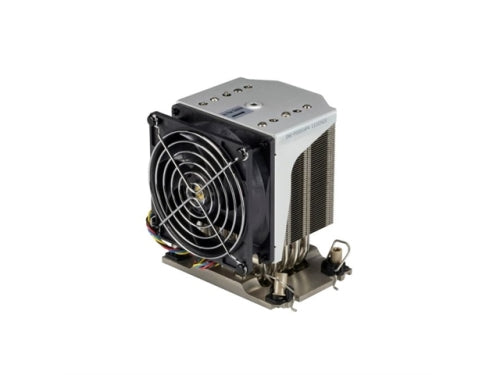

MPN SNK-P0080AP4 Server Form Factor 4U Cooling Type Active CPU Configuration Uni Processor, Dual Processor Supported CPU SKU 3rd Gen Intel Xeon Scalable Processors Supported CPU Socket FCLGA4189 Supported CPU TDP Up to 270 Watts Attached Cooling Fan Speed Control: 4-pin PWM Rated Voltage: 12.0 VDC Rated Speed: 5,000 RPM Acoustic Noise: 43 dB(A) at Rated Speed Position: Front Side MTBF/MTTF: 3,000,000 Hours Product Environmental Compliance RoHS and REACH compliant, details available upon request

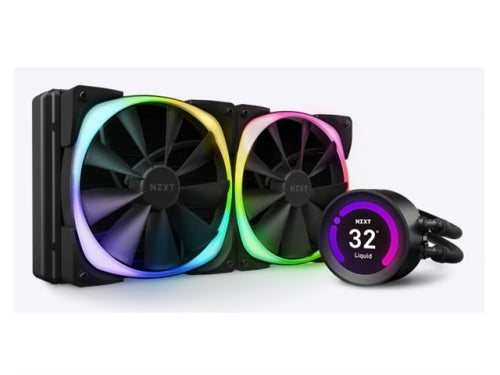

MPN RL-KRZ53-R1 Water Block Material (Block) Copper Material (Housing) Plastic Pump Motor Speed 800 - 2,800 +/- 300 RPM Power 12V DC, 0.3A Radiator Material Aluminum Tube Length 400mm Material Ultra-low Evaporation Rubber with Nylon Braided Sleeve Cap Material Aluminum, Plastic Fan Control Yes NZXT RGB Channel Connector 1 Rotation Orientation Software adjustable Default, +90, +180, and -90 Degrees LCD Display Panel Active Area 2.36" (60mm) Diameter Color 24-bit True Color LCD Resolution 320 x 320px Brightness 650 cd/m 2 Fan Specs Model Aer RGB 2 120mm Quantity 2 Speed 500 - 1,500 +/- 300RPM Airflow 17.48 - 52.44 CFM Air Pressure 0.14 - 1.35 mm-H2O Noise 22 - 33 dBA Bearing Fluid Dynamic Bearing Power Consumption 12V DC, 0.18A, 2.2W Fan Connector 4-pin PWM Life 60,000 hours / 6 Years Compatible Socket and CPU Intel Socket LGA 1200, 115X, 1366, 2011, 2011-3, 2066 AMD AMD Socket AM4, sTRX4, TR4 (Threadripper bracket not included)

MPN RL-KRZ63-R1 Water Block Material (Block) Copper Material (Housing) Plastic Pump Motor Speed 800 - 2,800 +/- 300 RPM Power 12V DC, 0.3A Radiator Material Aluminum Tube Length 400mm Material Ultra-low Evaporation Rubber with Nylon Braided Sleeve Cap Material Aluminum, Plastic Fan Control Yes NZXT RGB Channel Connector 1 Rotation Orientation Software adjustable Default, +90, +180, and -90 Degrees LCD Display Panel Active Area 2.36" (60mm) Diameter Color 24-bit True Color LCD Resolution 320 x 320px Brightness 650 cd/m 2 Fan Specs Model Aer RGB 2 140mm Quantity 2 Speed 500 - 1,500 +/- 300RPM Airflow 30.39 - 91.19 CFM Air Pressure 0.17 - 1.52 mm-H2O Noise 22 - 33 dBA Bearing Fluid Dynamic Bearing Power Consumption 12V DC, 0.32A, 3.8W Fan Connector 4-pin PWM Life 60,000 hours / 6 Years Compatible Socket and CPU Intel Socket LGA 1200, 115X, 1366, 2011, 2011-3, 2066 AMD AMD Socket AM4, sTRX4, TR4 (Threadripper bracket not included)

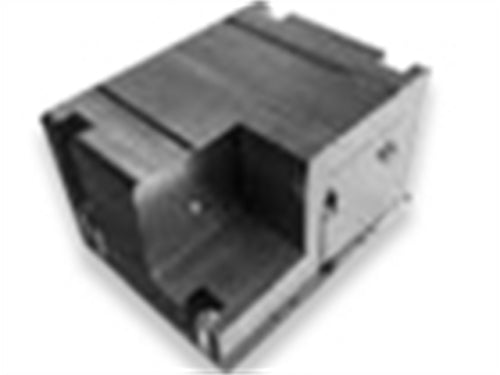

MPN CYP2UHSSTD Essentials Product Collection Heat-Sink Options Code Name Products formerly Coyote Pass Included Items (1) 2U tall heat sink Supplemental Information Description 2U Tall Heat Sink

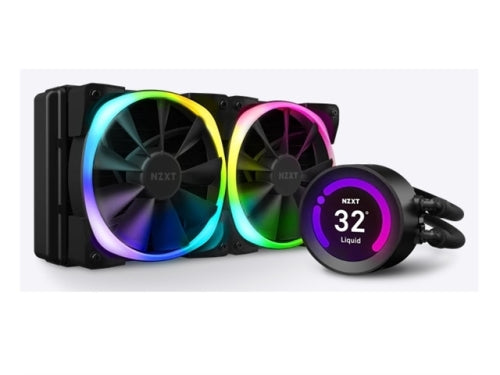

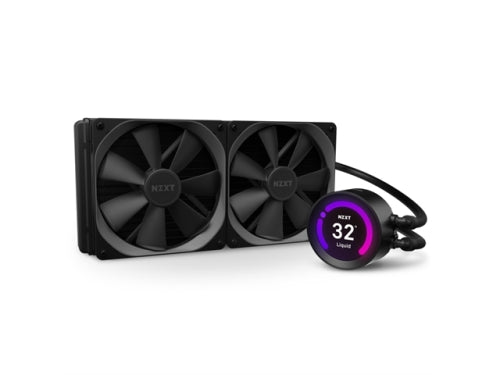

MPN RL-KRZ63-01 Water Block Dimensions(LxWxH): 79 x 79 x 52 mm Material: Block: Copper, Housing: Plastic Pump Motor Speed Power: 800 - 2,800 + 300 RPM, 12V DC, 0.3A Radiator Dimensions: 143 x 315 x 30mm Material: Aluminum Tube Length: 400mm Material: Ultra-low Evaporation Rubber with Nylon Braided Sleeve Cap Display Orientation: Software adjustable Default and -90 o orientation Display Panel Active Area: 2.36 (60mm) diameter Display Color: 24-bit true color LCD Display Resolution: 320 x 320 px Display Brightness: 650 cd/m 2 Fans Quantity: 2 Dimension: 140 x 140 x 26mm Speed: 500-1,800 + 300 RPM Air Flow: 2 7. 2 7 - 9 8 .1 7 C F M Air Pressure: 0.21 - 2.71mm-H2O Noise: 21-38dBA Bearing: Fluid Dynamic Bearing Power Consumption: 12V DC, 0.38A, 4.56W Connector: 4-pin PWM Life: 60,000 hours / 6 Years Compatible Socket and CPU Intel Socket LGA 1151, 1150, 1155, 1156, 1366, 2011, 2011-3, 2066 Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron AMD Socket AM4, sTRX4, TR4(Threadripper bracket not included) AMD Ryzen 7 / Ryzen 5 / Ryzen 3 / Ryzen 9 / Threadripper

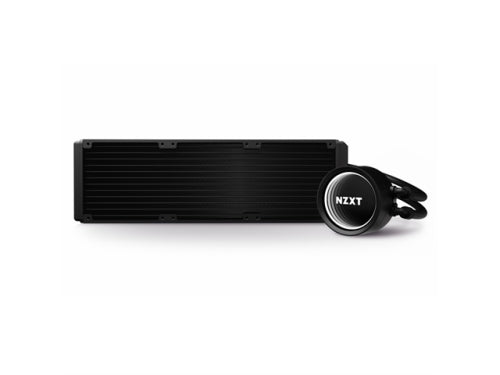

MPN RL-KRX73-01 Water Block Dimensions(LxWxH): 80 x 80 x 55 mm Material: Block: Copper, Housing: Plastic Pump Motor Speed and Power: 800 - 2,800 + 300 RPM, 12V DC, 0.3A Tube Length: 400mm Material: Ultra-low Evaporation Rubber with Nylon Braided Sleeve Radiator Dimensions: 121 x 394 x 27mm Material: Aluminum Cap Material: Plastic and brass Rotation Orientation: 360 o with 30 o increments HUE 2 Channel Output Voltage: 5V DC HUE 2 Channel Output LED Qty.: Up to four LED strips - 10 LEDs per strip, Up to five Aer RGB fans, Up to six HUE 2 accessories Fans Aer P120 Quantity: 3 Dimension: 120 x 120 x 26mm Speed: 500-2,000 + 300 RPM Air Flow: 1 8 . 2 8 - 7 3 .1 1 C F M Air Pressure: 0 .1 8 - 2 . 9 3 m m H2O Noise: 21-36dBA Bearing: Fluid Dynamic Bearing Power Consumption: 12V DC, 0.32A, 3.84W Connector: 4-pin PWM Life: 60,000 hours / 6 Years Compatible Socket and CPU Intel Socket LGA 1151, 1150, 1155, 1156, 1366, 2011, 2011-3, 2066 Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron AMD Socket AM4, sTRX4, TR4(Threadripper bracket not included) AMD Ryzen 7 / Ryzen 5 / Ryzen 3 / Ryzen 9 / Threadripper

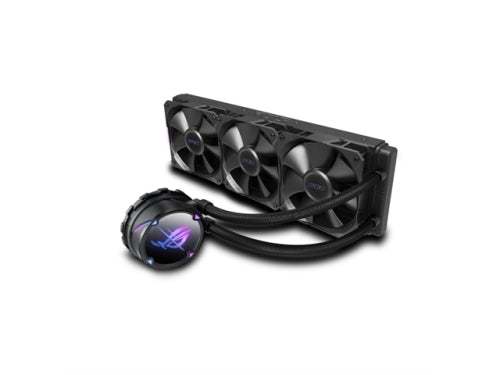

MPN ROG STRIX LC II 360 Water Block Water block dimention:80 x 80 x 45 mm Block Material (CPU Plate):Copper Radiator Radiator Dimension: 121 x 394 x 27 mm Radiator Material: Aluminum Tube: Sleeved Rubber tube Tube Length: 380 mm Fan Fan:ROG Designed Radiator Fan - Size: 3 x Fan Slots (120mm) - Speed: 800 - 2500 RPM +/- 10% - Static Pressure:5.0 mmH2O - Air Flow: 80.95 CFM / 137.5 m3h - Noise: 37.6 dB(A) - Control Mode: PWM/ DC Special Features AURA Sync Support:Yes Compatibility Intel: LGA 1700, 1200, 115x, 2011, 2011-3, 2066 AMD: AM4, TR4 Note Package Content 1 x Liquid Cooler (pre-applied thermal compound) 3 x 120 mm Radiator Fan 1 x USB cable for software control 1 x Accessory Pack of Screws and Brackets 1 x Quick Start Guide 1 x ROG Sticker Note - The mounting bracket is bundled with TR4 CPU Package

MPN SNK-P0071APS4 SERVER FORM FACTOR 4U COOLING TYPE Active CPU CONFIGURATION Uni Processor SUPPORTED CPU SKU Intel Xeon Scalable Processors SUPPORTED CPU SOCKET FCLGA3647-0 (Narrow Mounting Mechanism) SUPPORTED CPU TDP Up to 205 Watts ATTACHED COOLING FAN Speed Control: 4-pin PWM Rated Voltage: 12.0 VDC Rated Speed: 3,800 RPM Acoustic Noise: 38.0 dB(A) at Rated Speed Position: Front Side MTBF/MTTF: 108,798 Hours PRODUCT ENVIRONMENTAL COMPLIANCE RoHS and REACH compliant, details available upon request

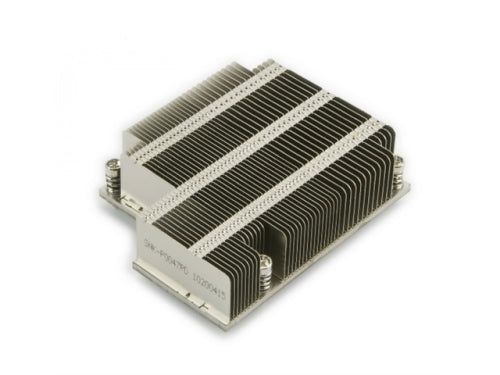

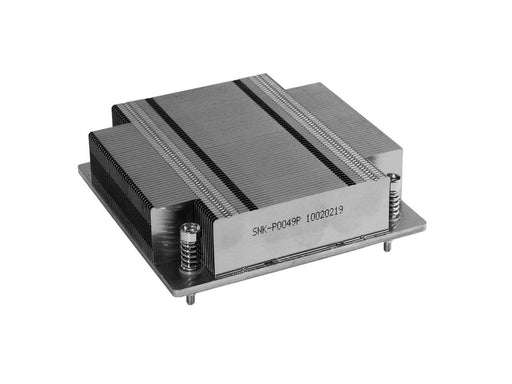

MPN SNK-P0049P

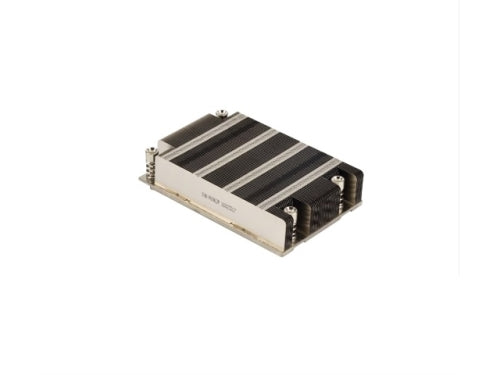

MPN SNK-P0062P Server Form Factor 1U Cooling Type Passive CPU Configuration Uni Processor, Dual Processor Supported CPU SKU AMD EPYC 7000 Series Supported CPU Socket OLGA4094 (Socket SP3) Supported CPU TDP Up to 180 Watts Attached Cooling Fan No Product Environmental Compliance RoHS and REACH compliant, details available upon request

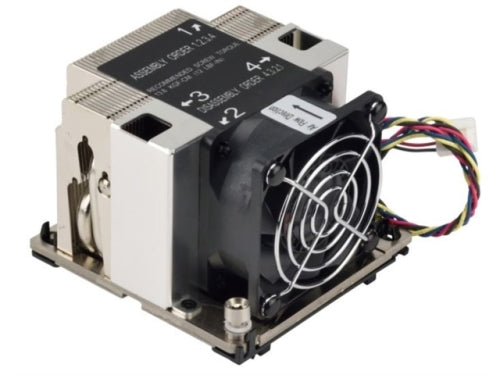

MPN SNK-P0068AP4 Server Form Factor 2U Cooling Type Active CPU Configuration Uni Processor, Dual Processor Supported CPU SKU Intel Xeon Scalable Processors Supported CPU Socket FCLGA3647-0 (Square Mounting Mechanism) Supported CPU TDP Up to 140 Watts Attached Cooling Fan Speed Control: 4-pin PWM Rated Voltage: 12.0 VDC Rated Speed: 8,400 RPM Acoustic Noise: 52.0 dB(A) at Rated Speed Fan Dimensions: 60L x 60H x 25D mm Position: Front Side MTBF/MTTF: 145,190 Hours at 40 C Ambient Product Environmental Compliance RoHS and REACH compliant, details available upon request Item Dimension ( L inch x W inch x H inch) NA Weight 1.50 lb

MPN SNK-P0063AP4 Category (motherboard) H11 AMD EPYC 7000 Series CPU Heat Sink Socket Type Socket SP3 Supported CPU AMD EPYC 7000 Series Mounting Screws / Springs FanSpeed (rpm) 8400 Noise (dBA) 52 Application H11 AMD EPYC 7000 2U and above Series Servers Item Dimension ( L inchxW inchxH inch) NA Weight 1.00 lb
