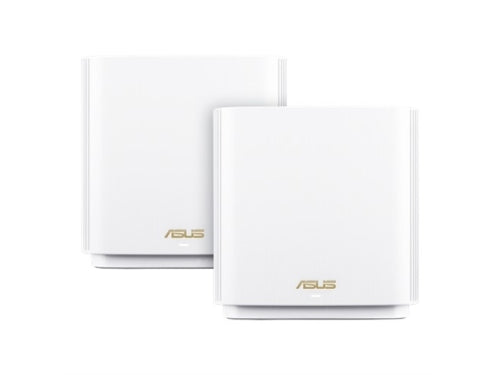

Asus Router ZenWiFi AX 2PK White AX6600 Whole-Home Tri-band Mesh WiFi 6 System Retail

MPN
ZENWIFI AX 2PK WHITE
Network Standard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IPv4, IPv6
Coverage
Very large homes
Data Rate
802.11a : 6,9,12,18,24,36,48,54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6,9,12,18,24,36,48,54 Mbps
802.11n : up to 300 Mbps
802.11ac (5GHZ-1)up to 867 Mbps
802.11ac (5GHZ-2)up to 3466 Mbps
802.11ax (2.4GHz) : up to 574 Mbps
802.11ax (5GHZ-1)up to 1201 Mbps
802.11ax (5GHZ-2)up to 4804 Mbps

Antenna
Internal antenna x 6
Transmit/Receive
2.4 GHz 2 x 2
5 GHz-1 2 x 2
5 GHz-2 4 x 4

Processor
1.5 GHz quad-core processor

Memory
256 MB Flash
512 MB RAM

Wi-Fi Technology
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth

Operating Frequency
2.4G Hz, 5 GHz-1, 5 GHz-2
Encryption
WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
Firewall and Access Control
Firewall: SPI intrusion detection, DoS protection
Access controlParental control, Network service filter, URL filter, Port filter

Management
UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log
VPN Support
IPSec Pass-Through
PPTP Pass-Through
L2TP Pass-Through
PPTP server
OpenVPN server
PPTP client
L2TP client
OpenVPN client

WAN Connection Type
Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP

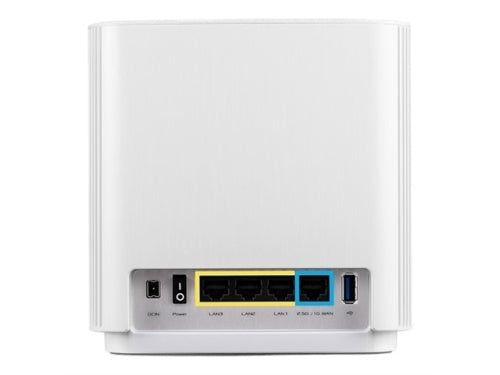

Ports
RJ45 for 2.5G BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3
USB 3.1 Gen 1 x 1

Features
Range Boost
Router app
MU-MIMO
Smart Connect
Traffic Analyzer
Adaptive QoS
AiProtection Pro
Parental Control
Guest Network : 2.4 GHz x 3, 5 GHz-1 x 3, 5 GHz-2 x 3
VPN server : PPTP Server, OpenVPN Server, IPSec server
VPN client : PPTP client, L2TP client, OpenVPN client
NAT Pass-Through :PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
Mac OS Backup
Enhanced media server (AiPlayer app compatible)
- Image : Jpeg
- Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg
- Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
AiCloud personal cloud service
3G/4G data sharing
Printer Server
- Multifunctional printer support (Windows only)
- LPR protocol support
Download Master
- Support bt, nzb, http, ed2k
- Support encryption, DHT, PEX and magnet link
- Upload and download bandwidth control
- Download scheduling
AiDisk file server
- Samba and FTP server with account management
IPTV support
Roaming Assist
OFDMA
Beamforming

Button
WPS Button, Reset Button, Power Switch
Power Supply
AC Input : 110V-240V(50-60Hz)
DC Output : 19 V with max. 1.75 A current

OS Support
Windows 10
Windows 8
Windows 7
Mac OS X 10.6
Mac OS X 10.7
Mac OS X 10.8
