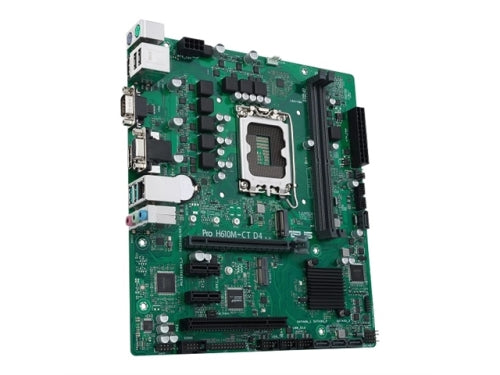

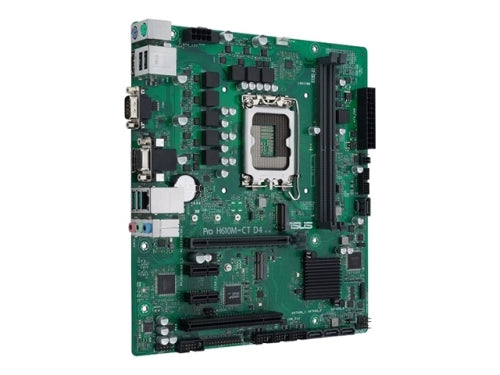

ASUS Motherboard PRO H610M-CT D4-CSM H610 LGA1700 Max.64GB DDR4 mATX Retail

CPU
Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Refer to www.asus.com for CPU support list.
Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel H610 Chipset
Memory
2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
Graphics
1 x DisplayPort
1 x D-Sub port
1 x HDMI port
Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Supports max. 4K at 60Hz as specified in DisplayPort 1.4.
Supports 4K at 60Hz as specified in HDMI 2.1.
Expansion Slots
Intel 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel H610 Chipset
2 x PCIe 3.0 x1 slots
1 x PCI slot
Storage
Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports
Intel H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
4 x SATA 6Gb/s ports
Ethernet
1 x Intel 1Gb Ethernet
ASUS LANGuard
Wireless and Bluetooth
M.2 slot only (Key E, CNVi and PCIe)
Wi-Fi module is sold separately.
USB
Rear USB (Total 4 ports)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 8 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x D-Sub port
1 x HDMI port
1 x Intel 1Gb Ethernet port
3 x Audio jacks
1 x COM port
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrude header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x COM debug header
1 x LPT header
1 x M.2 slot (Key E)
1 x SMBUS header
1 x Speaker header
1 x 10-1 pin System Panel header
Special Features
ASUS EZ DIY
- Box Headers
Bespoke Motherboard Design and Business Focused Features
- Q-LED Core
- ASUS Self Recovering BIOS
- ASUS Event Log
- ASUS Commercial BIOS kit
- Anti-Moisture Coating
- 24/7 Reliability
- Overcurrent Protection
TPM IC Onboard
Software Features
ASUS Exclusive Software
IT Management software supported
- ASUS Control Center Express(ACCE)
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package
1 x M.2 Key E screw package
Installation Media
1 x Support DVD
Documentation
1 x ACC Express Activation Key Card
1 x User guide
Operating System
Windows 11 64-bit, Windows 10 64-bit
Form Factor
mATX Form Factor
9.6 inch x 8.7 inch ( 24.4 cm x 22 cm )
Including below info in 600 series refreshed NPI:
Supports 13th gen Intel Core^TM desktop processors.
BIOS update may be required to boot the 13th gen Intel Core^TM desktop processors
