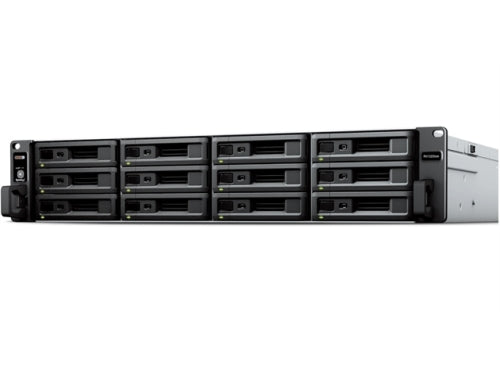

Synology Network Attached Storage RX1222sas RackExpansion 12bay (Diskless) Retail

MPN
RX1222SAS
Applied Models
Supports creating volumes across different units
SA series:SA3600, SA3400
Notes
To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit.
Storage
Drive Bays
12
Compatible Drive Type (See all supported drives: https://www.synology.com/en-global/compatibility)
3.5" SAS HDD
3.5" SATA HDD
2.5" SATA SSD
Maximum Internal Raw Capacity
192 TB (16 TB drive x 12) (Capacity may vary by RAID types)
Hot Swappable Drive
Yes
RAID Management through Synology DSM
Yes
Notes
It is strongly recommended that you only install drives listed on your devices compatibility list. Storage pool and volume creation processes may fail when using unverified drives. Synology is unable to provide technical support for devices using unsupported components.
"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports
SAS IN-port
1
SAS OUT-port
1
Rack Installation Support
4-post 19" rack (Synology Rail Kit - RKS-02)
Notes
The rail kit is sold separately
Power
Power Supply Unit / Adapter
500 W
AC Input Power Voltage
100 V to 240 V AC
Power Frequency
50/60 Hz, Single Phase
Power Consumption
194.4 W (Access)
82.56 W (HDD Hibernation)
British Thermal Unit
663.48 BTU/hr (Access)
281.77 BTU/hr (HDD Hibernation)
Redundant Power Supply (for RP model)
Yes
Notes
Power consumption is measured when it is fully loaded with Synology HAS5300-8T hard drive(s).
Temperature
Operating Temperature
0^oC to 35^oC (32^oF to 95^oF)
Storage Temperature
-20^oC to 60^oC (-5^oF to 140^oF)
Relative Humidity
5% to 95% RH
Others
System Fan
80 mm x 80 mm x 4 pcs
Easy Replacement System Fan
Yes
Noise Level
54.5 dB(A)
Notes
Noise Level Testing Environment: Fully loaded with Synology SAT5200-480G SSD in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A), Temperature: 24.25-25.75^oC, Humidity: 58.2-61.8%
Certification
FCC
CE
BSMI
UKCA
EAC
VCCI
RCM
KC
Environment and Packaging
Environment
RoHS Compliant
Packaging Content
Main Unit X 1
Accessory Pack X 1
AC Power Cord X 2
Expansion Cable: Mini-SAS HD X 2
Quick Installation Guide X 1
Optional Accessories
3.5" SATA HDD: HAT5300
3.5" SAS HDD: HAS5300
2.5" SATA SSD: SAT5210
Rail Kit Sliding: RKS-02
