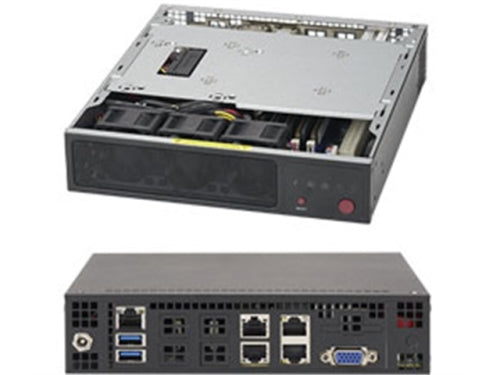

Supermicro System SYS-E200-8D Xeon D-1528 FCBGA1667 2.5inch DDR4 SATA PCI Express Retail

Form Factor
Mini-1U
Processor/Cache
CPU:
- Intel Xeon Processor D-1528
- FCBGA 1667
- CPU TDP Support 35W, 9MB, 6-Cores, 12-Threads, 1.9 to 2.2GHz
System Memory
Memory Capacity:
- 4 x DDR4 DIMM Sockets
- Supports up to 128GB DDR4 ECC RDIMM
- Supports up to 64GB DDR4 ECC/Non-ECC UDIMM
Memory Type: 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes: 32GB, 16GB, 8GB, 4GB
Memory Voltage: 1.2V
Error Detection:
- Corrects Single Bit Errors
- Detects Double Bit Errors (Using ECC Memory)
On-Board Devices
Chipset: System on Chip
SATA: SoC Controller for 6 SATA 3 (6Gbps) Ports
Network Controllers:
- Dual Lan via Intel i350-AM2 Gigabit Ethernet
- Dual LAN via SoC 10GBase-T
- Virtual Machine Device Queues reduce I/O Overhead
- Supports 10GBASE-T, 100BASE-TX and 1000BASE-T RJ45 Output
- Realtek RTL8201N PHY (Dedicated IPMI)
IPMI:
- Support for Intelligent Platform management Interface 2.0
- IPMI 2.0 with Virtual media over LAN and KVM-Over-LAN Support
Graphics: Aspeed AST2400
Input/Output
SATA: 6 SATA3 (6Gbps) Ports
LAN:
- 2 RJ45 Gigabit Ethernet LAN Ports
- 2 RJ45 10GBase-T Ports
- 1 RJ45 Dedicated IPMI LAN Ports
USB: 2 x USB 3.0 Ports (Rear)
Display: 1 x VGA Ports
DOM: 2 x SuperDOM (Disk on Module) Power Connections
TPM: TPM 2.0 Header
Front Panel
Buttons: Power On/Off Button
LEDs: Power LED (Hard Drive Activity LED)
Expansion Slots
M.2:
- Interface: PCI-E 3.0 x4
Form Factor: M Key 2242/2280/22110
Support SATA Devices
Drive Bays
Internal: 2.5inch Fixed drive bay with bracket (Design for 9.5mm thickness HDD with Low Profile memory)
System Cooling
Fans: Passive CPU Heat Sink and 2x 40mm Chassis Fan
Power Supply
DC Power Adapter
System BIOs
BIOs Type: 128MB SPI Flash with AMI BIOs
BIOs Features:
- PCI 3.0
- ACPI 5.0
USB Keyboard Support
- Hardware BIOs Virus Protection
-SMBIOS 2.8
- UEFI 2.4
- RTC (Real Time Clock) Wake up
Management
Software:
- IPMI 2.0
- KVM with Dedicated LAN
- NMI
- SUM
- SuperDoctor5
- WatchDog
Power Configuration:
- ACPI/APM Power Management
- CPU Fan Auto off in Sleep Mode
- Power on Mode for AC Power Recovery
Fan:
- Fans with tachometer status monitoring
- Status monitor for speed control
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connectors
Operating Environment/Compliance
RoHS: RoHS Compliant
Environment Spec:
- Operating Temperature: 0 C to 40 C (32 F to 104 F)
- Non-Operating Temperature: -40 C to 70 C (-40 F to 158 F)
- Operating Relative Humidity: 8% to 90% (Non-Condensing)
- Non-Operating Relative Humidity: 5% to 95% (Non-Condensing)
