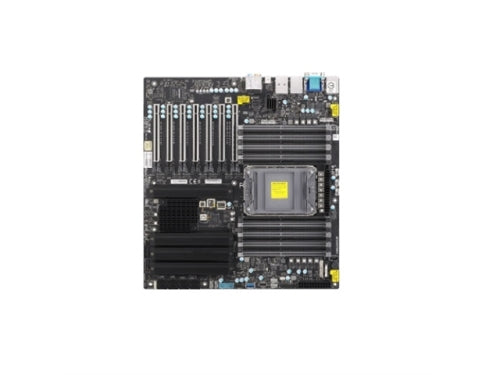

Supermicro Motherboard MBD-X12SPA-TF-O C621A LGA4189 Max4TB DDR4 PCI Express VGA E-ATX Retail

Form Factor
E-ATX
Processor
CPU
3rd Gen Intel Xeon Scalable processors, Intel Xeon W-3300 Processor
Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Core
Up to 40 cores
System Memory
Memory Capacity
16 DIMM slots
Up to 4TB Intel Optane^TM Persistent Memory 200 Series, DDR4-3200MHz
Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz, Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz
Memory Type
ECC 3DS DDR4 LRDIMM, RDIMM
DIMM Sizes
4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage
1.2V
On-Board Devices
Chipset
Intel C621A
SATA
Intel C621A controller for 8 SATA3 (6 Gbps) ports, RAID 0,1,5,10
IPMI
ASPEED AST2500
Audio
ALC 888S HD Audio
Graphics
ASPEED AST2500 BMC
VGA connector is dedicated for IPMI.
Network Controllers
Single LAN with Intel Ethernet Controller I210-AT
Single LAN with Realtek RTL8211F PHY (dedicated IPMI)
Single LAN with Marvell AQC113
Input / Output
LAN
1 RJ45 Dedicated IPMI LAN port
1 RJ45 Gigabit Ethernet LAN ports
1 RJ45 10GBase-T ports
USB
4 USB 2.0 port(s) (2 rear, 2 via header)
6 USB 3.2 Gen1 port(s) (2 via header, 4 rear)
2 USB 3.2 Gen2 port(s) (1 type A, 1 type C)
1 USB 3.2 Gen2x2 port(s) (1 rear type C)
USB 3.2 Gen2 (1 Type A Vertical, 1 Type C header)
Video Output
1 VGA port(s)
Serial Port
2 COM Port(s) (1 header, 1 rear)
DOM
1 SATA DOM power connector (Disk on Module) port
TPM
1 TPM Header
Expansion Slots
PCI-E
4 PCI-E 4.0 x16,
3 PCI-E 4.0 x8 (in x16 slot)
PCI-Ex16 Slot number 1 shares with M.2, Slot number 2 shares with Slot number 3(NA/16,8/8), Slot number 4 shares with Slot number 5(NA/16,8/8), Slot number 6 shares with Slot number 7(NA/16,8/8)
M.2
M.2 Interface: 4 PCI-E 4.0 x4
Form Factor: 2260/2280/22110
Key: M-Key
M.2 support to RAID 0,1, 5, 10, VROC key is required for RAID.
System BIOS
BIOS Type
256MB SPI Flash with AMI BIOS
BIOS Features
ACPI 3.0 / 4.0
SMBIOS 2.7
PCI FW 3.0
RTC (Real Time Clock) Wakeup
Management
Software
SuperDoctor 5, SUM, SPM, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
System Management Software
SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection, Main Switch Override Mechanism
PC Health Monitoring
Voltage
VBAT, Memory, HT, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, 10 -fan status
LED
Suspend static indicator LED
CPU / System Overheat LED
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
PECI
FAN
10x 4-pin fan headers (up to 10 fans)
PWM fan speed control
Fan speed control
Dual Cooling Zone
Status monitoring for speed control
Overheat LED indication
Operating Environment
Operating Temperature Range
0^oC - 50^oC (32^oF - 122^oF)
Non-Operating Temperature Range
-20^oC - 60^oC (-4^oF - 140^oF)
