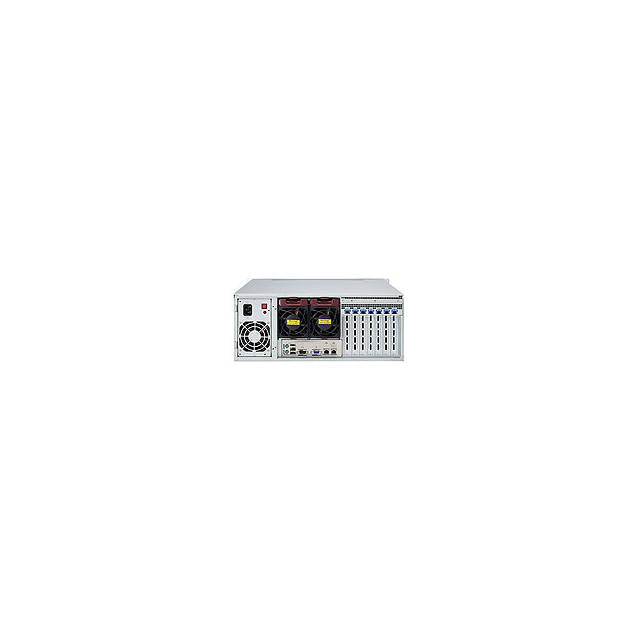

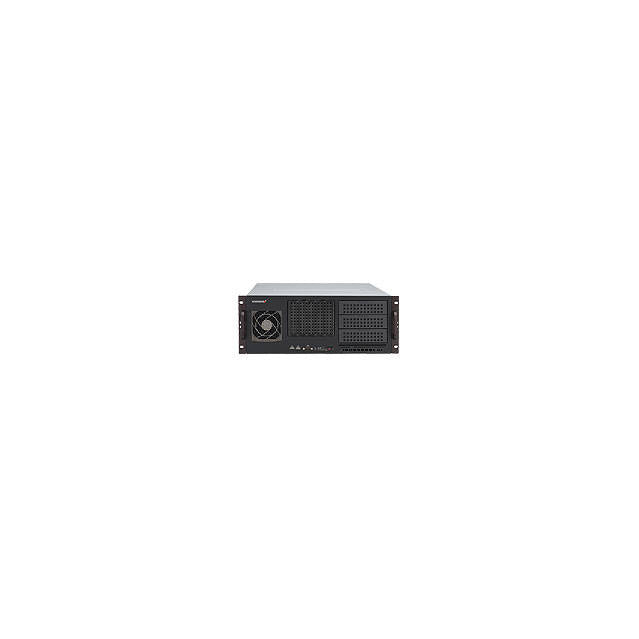

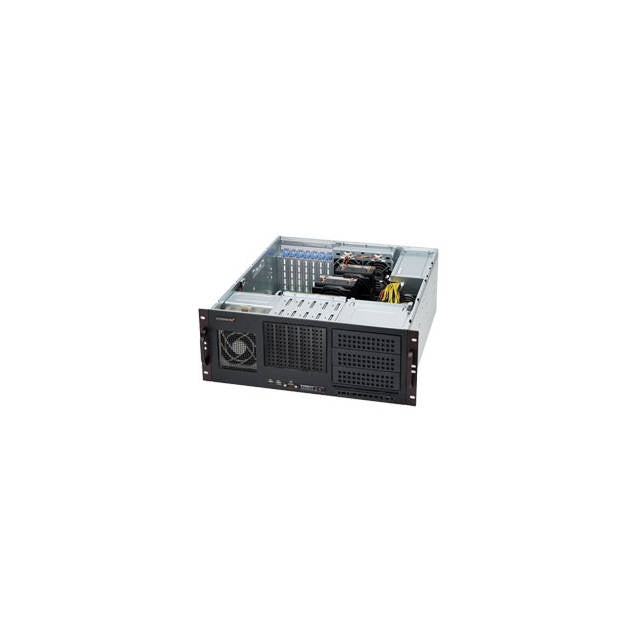

Supermicro Case CSE-842i-500B 4U 5x3.5inch/3x5.25inch PCI Express USB 500W Power Supply Black Retail

MPN
CSE-842I-500B
Processor Support
Supports Dual, Single Intel/AMD Processors
Expansion Slots
7 x Tool-Less Full-Height, Full-Length PCI Expansion Slot
Drive Bays
Internal HDD:
- 5 x 3.5inch Internal HDD Bays
- SAS or Enterprise SATA HDD Only Recommended
Peripheral Bay(s):
- 3 x 5.25inch Peripheral Drive Bays
- 1 x Slim DVD-ROM (Optional) Drive Bay
Front Panel
Buttons:
- Power on/off Button
- System Reset Button
- UID
LEDs:
- Power LED
- Hard Drive Activity LED
- 2 x Network Activity LEDs
- System Overheat LED
- Power Fail LED
Ports:
- 2x USB 2.0 Ports
System Cooling
FAN:
- 1 x Front Intake 9cm PWM Cooling Fan
- 2 x Rear 8cm PWM Cooling Fan
Operating Environment (System)
Operating Temperature Range: 5C - 35C (41F - 95F)
Non-Operating Temperature Range: -40 - 60C (-40 -140 F)
Humidity Range: 8 - 90% Non-Condensing
Non-Operating Humidity Range: 5 95% Non-Condensing
Power Supply
500W AC power supply w/ PFC
AC Voltage: 100 - 240V, 50-60Hz, 7-3.5 Amp
+5V: 20 Amp
+5V Standby: 3 Amp
+12V1: 17 Amp
+12V2: 17 Amp
+12V3: 17 Amp
+12V4: 18 Amp
-12V: 0.5 Amp
+3.3V: 15 Amp
Certifications: 80 PLUS BRONZE Certified
Regulatory (Power Supply)
Power Supply Safety / EMC:
- USA - UL listed, FCC
- Canada - CUL listed
- CCC Certification
- N 60950/IEC 60950-Compliant
- Europe/CE Mark
- Germany - TUV Certified
Form Factor
Industrial Short-Depth 4U Rackmount Supports E-ATX, ATX, Micro ATX Motherboards, Maximum Motherboard Size 12" x 13"
Colors
Black
