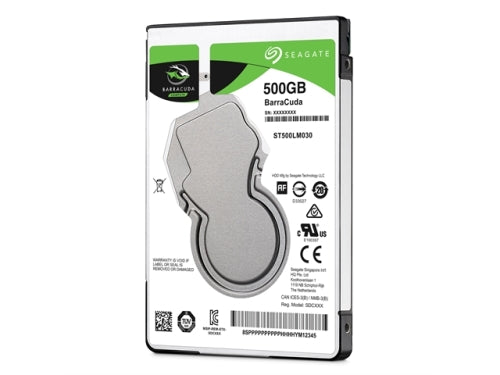

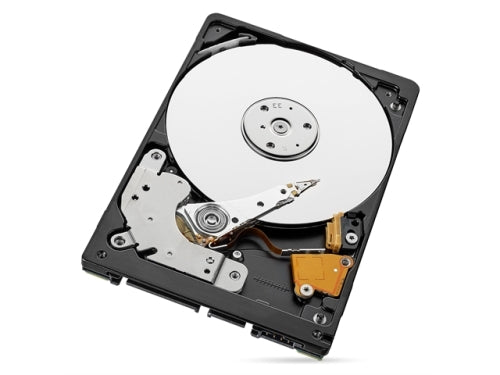

Seagate Hard Drive ST500LM030 500GB BarraCuda SATA 6Gb/s 128MB Cache 2.5" 7mm Bare

MPN
ST500LM030
Formatted capacity
500GB
Guaranteed sectors
976,773,168
Heads
2
Disks
1
Bytes per sector
512 (logical) / 4096 (physical)
Recording density
2276 Kb/in
Track density
580 Ktracks/in avg
Areal density
1320 Gb/in² avg
Spindle speed
5400 RPM
Maximum sustained data rate, OD read
140 MB/s
Interface
SATA 6Gb/s
ATA data-transfer modes supported
PIO modes 0-4
Multiword DMA modes 0-2
Ultra DMA modes 0-6
Cache buffer
128 MB
Average latency
5.6 ms
Startup current, Max (+5V)
1.0 A
Voltage tolerance (including noise)
5V +/- 5%
Non-Operating (Ambient ^oC)
-40^o to 70^o
Operating ambient temperature (min ^oC)
0^o
Operating temperature (drive case max ^oC)
60^o
Temperature gradient
20^oC per hour max (operating)
35^oC per hour max (non-operating)
Relative humidity
5% to 95% (operating)
5% to 95% (non-operating)
Relative humidity gradient (max)
30% per hour
Wet bulb temperature
37.7^oC max (operating)
40.0^oC max (non-operating)
Altitude, operating
-304.8 m to 3048 m (1000 ft to 10,000+ ft)
Altitude, non-operating (below mean sea level, max)
-304.8 m to 12,192 m (1000 ft to 40,000+ ft)
Operational Shock
400 Gs at 2 ms max
Non-Operational Shock
1000 Gs at 1 ms max
Vibration, operating
5-200 Hz: 2.0 Gs
201-500 Hz: 1.0 Gs
Vibration, non-operating
5-500 Hz: 5.0 Gs
Non-recoverable read errors
1 per 10¹⁴ bits read
Rated workload
Average annualized workload rating: <55 TB/year.
The AFR specification for the product assumes the I/O workload does not exceed the average
Load-unload cycles
600,000 at 25^oC, 50% rel.
Supports Hotplug operation per the Serial ATA Revision 3.2 specification
Yes
