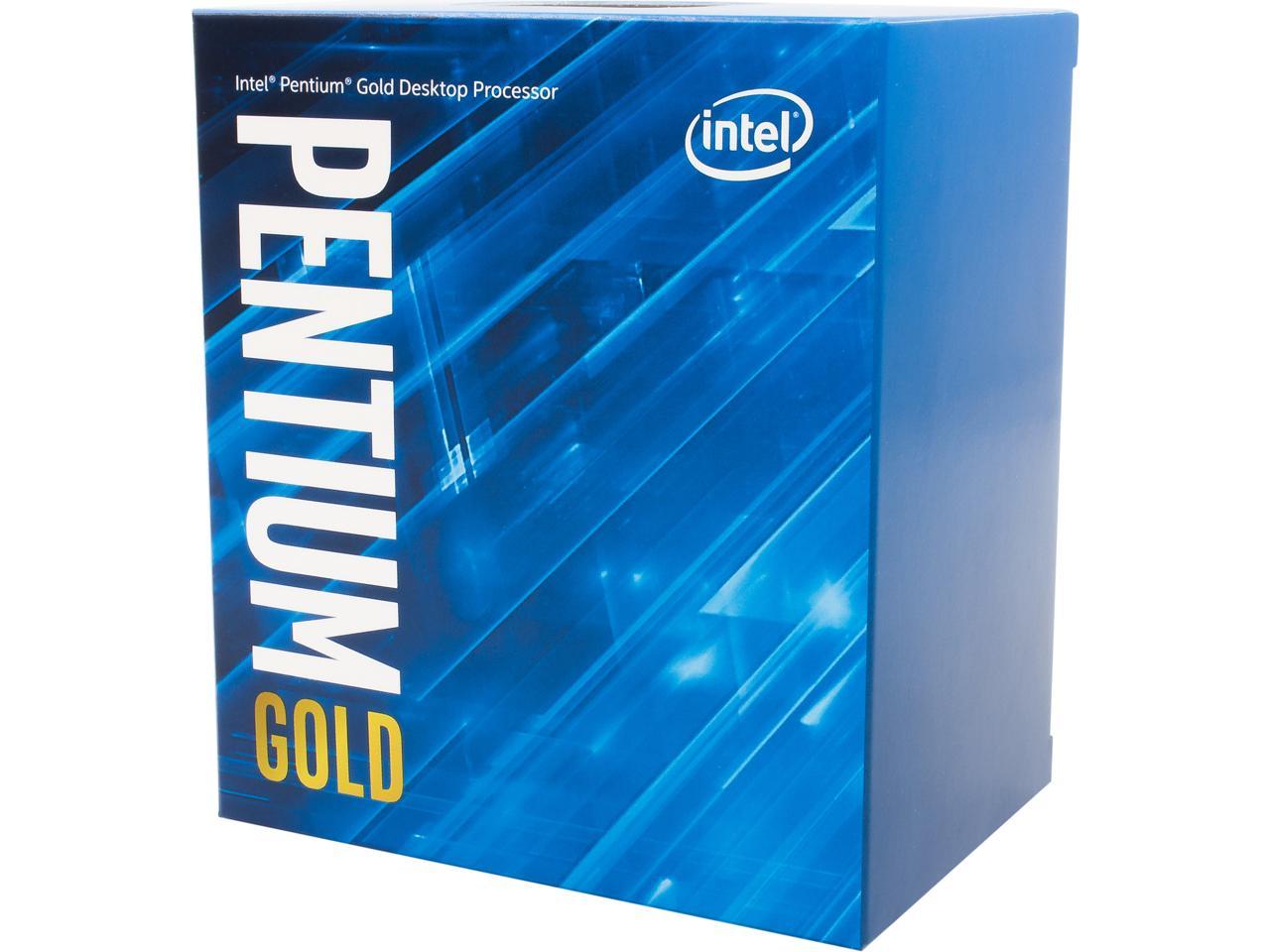

Intel CPU BX80701G6405 G6405 BOX 2Cores/4Threads 4.1GHz 4MB FCLGA1200 Retail

MPN
BX80701G6405
Essentials
Product Collection
Intel Pentium Gold Processor Series
Code Name
Products formerly Comet Lake
Vertical Segment
Desktop
Processor Number
G6405
Lithography
14 nm
Use Conditions
PC/Client/Tablet
CPU Specifications
Number of Cores
2
Number of Threads
4
Processor Base Frequency
4.10 GHz
Cache
4 MB Intel Smart Cache
Bus Speed
8 GT/s
TDP
58 W
Supplemental Information
Embedded Options Available
No
Datasheet
https://www.intel.com/content/www/us/en/products/docs/processors/core/core-technical-resources.html
Memory Specifications
Max Memory Size (dependent on memory type)
128 GB
Memory Types
DDR4-2666
Max Number of Memory Channels
2
Max Memory Bandwidth
41.6 GB/s
Processor Graphics
Processor Graphics
Intel UHD Graphics 610
Graphics Base Frequency
350 MHz
Graphics Max Dynamic Frequency
1.05 GHz
Graphics Video Max Memory
64 GB
4K Support
Yes, at 60Hz
Max Resolution (HDMI)
4096x2160 at 30Hz
Max Resolution (DP)
4096x2304 at 60Hz
Max Resolution (eDP - Integrated Flat Panel)
4096x2304 at 60Hz
DirectX Support
12
OpenGL Support
4.5
Intel Quick Sync Video
Yes
Intel InTru^TM 3D Technology
Yes
Intel Clear Video HD Technology
Yes
Intel Clear Video Technology
Yes
Number of Displays Supported
3
Device ID
0x9BA8
Expansion Options
Scalability
1S Only
PCI Express Revision
3.0
PCI Express Configurations
Up to 1x16, 2x8, 1x8+2x4
Max Number of PCI Express Lanes
16
Package Specifications
Sockets Supported
FCLGA1200
Max CPU Configuration
1
Thermal Solution Specification
PCG 2015C
TJUNCTION
100^oC
Advanced Technologies
Intel Optane^TM Memory Supported
Yes
Intel Thermal Velocity Boost
No
Intel Turbo Boost Max Technology 3.0
No
Intel Turbo Boost Technology
No
Intel vPro Platform Eligibility
No
Intel Hyper-Threading Technology
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Transactional Synchronization Extensions
No
Intel 64
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel SSE4.1, Intel SSE4.2
Idle States
Yes
Enhanced Intel SpeedStep Technology
Yes
Thermal Monitoring Technologies
Yes
Intel Identity Protection Technology
Yes
Intel Stable Image Platform Program (SIPP)
No
Security and Reliability
Intel AES New Instructions
Yes
Secure Key
Yes
Intel Software Guard Extensions (Intel SGX)
Yes with Intel ME
Intel OS Guard
Yes
Intel Trusted Execution Technology
No
Execute Disable Bit
Yes
Intel Boot Guard
Yes
