NZXT

MPN AB-RH175-W1 KEY SPECS Compatibility: PCIe Gen 4 x16 Supported Graphic Cards: Any length, up to 3 slots wide Required Slots: 7 available PCIe slots for mounting

Input and Passthrough: HDMI 2.0 Power and Data: USB 3.2 (Gen 1) Type C PC Connection: USB-C to USB-A Channels: 2 (16 bit, 48 kHz Audio) Compliance: Compliant with HDMI 2.0, HDCP 1.4/2.2 and DVI 1.0 specifications HDR to SDR Conversion: HDR10 passthrough with hardware conversion to SDR color MAXIMUM INPUT and PASSTHROUGH COMPATIBILITY 3840x2160p:60fps HDR 2560x1440p:144fps HDR 2560x1080p:144fps HDR 1920x1080p:240fps HDR Others:720p, 480p, 576p, 480i, 576i, 1920x1080i SOFTWARE Audio:HDMI: Stereo 16 bit 48K samples/sec Scaling: Hardware downscaling, and upscaling to 1080p UCV Supported Raw Formats: NV12 and YUY2 (for up to 1440p) System OS: PC / Windows 10, Windows 11

KEY SPECS Top Plate Material: Aluminium Wrist Rest: Included SWITCHES Mechanical Key Switches: Hot-swappable Gateron Linear Red Switch Rating: 50 Million Keypresses Lighting: Per-key RGB Compatibility: 5-pin Cherry MX Switches N-key Rollover: Yes Anti-Ghosting: Yes KEYCAPS Profile: OEM Material: ABS plastic Shine-through: Yes SOFTWARE On Board Profile Memory: 4 Customizable Profiles (using CAM Software) System OS: PC / Windows 10, Windows 11

KEY SPECS Top Plate Material: Aluminium Wrist Rest: Not Included SWITCHES Mechanical Key Switches: Hot-swappable Gateron Linear Red Switch Rating: 50 Million Keypresses Lighting: Per-key RGB Compatibility: 5-pin Cherry MX Switches N-key Rollover: Yes Anti-Ghosting: Yes KEYCAPS Profile: OEM Material: ABS plastic Shine-through: Yes SOFTWARE On Board Profile Memory: 4 Customizable Profiles (using CAM Software) System OS: PC / Windows 10, Windows 11

Motherboard Support: Mini-ITX, Micro-ATX, ATX, and EATX (Up to 272mm) Enclosure Type: Mid-Tower Case Material: SGCC Steel, Tempered Glass COMPATIBILITY and CLEARANCE Max CPU Cooler Clearance: Up to 185mm Max GPU Clearance: Up to 400mm Front Radiator Clearance: 60mm Top Radiator Clearance: 30mm Cable Management: 18-22mm FRONT I/O PORTS USB 3.2 Gen 1 Type-A: 2 USB 3.2 Gen 2 Type-C: 1 Headset Audio Jack: 1 EXPANSION SLOTS Standard: 7 Vertical: 0 DRIVE BAYS 2.5": 4+2 3.5": 2 FAN SUPPORT Front: 3 x 120mm / 3 x 140mm Top: 3 x 120mm / 2 x 140mm Rear: 1 x 120mm / 1 x 140mm Filters: All Air Intakes RADIATOR SUPPORT Front: Up to 360mm with Push/Pull Top: Up to 360mm Rear: Up to 140mm FAN SPECS Model: F120Q (Case Version) Speed: 1200 +/- 240RPM Airflow: 62.18 CFM Static: 1.05 mm - H2O Noise: 25.1 dBA Fan Connector: 3-pin

Motherboard Support: Mini-ITX, Micro-ATX, ATX, and EATX (Up to 272mm) Enclosure Type: Mid-Tower Case Material: SGCC Steel, Tempered Glass COMPATIBILITY and CLEARANCE Max CPU Cooler Clearance: Up to 185mm Max GPU Clearance: Up to 400mm Front Radiator Clearance: 60mm Top Radiator Clearance: 30mm Cable Management: 18-22mm FRONT I/O PORTS USB 3.2 Gen 1 Type-A: 2 USB 3.2 Gen 2 Type-C: 1 Headset Audio Jack: 1 EXPANSION SLOTS Standard: 7 Vertical: 0 DRIVE BAYS 2.5": 4+2 3.5": 2 FAN SUPPORT Front: 3 x 120mm / 3 x 140mm Top: 3 x 120mm / 2 x 140mm Rear: 1 x 120mm / 1 x 140mm Filters: All Air Intakes RADIATOR SUPPORT Front: Up to 360mm with Push/Pull Top: Up to 360mm Rear: Up to 140mm FAN SPECS Model: F120Q (Case Version) Speed: 1200 +/- 240RPM Airflow: 62.18 CFM Static: 1.05 mm - H2O Noise: 25.1 dBA Fan Connector: 3-pin

Motherboard Support: Mini-ITX, Micro-ATX, ATX, and EATX (Up to 272mm) Enclosure Type: Mid-Tower Case Material: SGCC Steel, Tempered Glass COMPATIBILITY and CLEARANCE Max CPU Cooler Clearance: Up to 185mm Max GPU Clearance: Up to 400mm Front Radiator Clearance: 60mm Top Radiator Clearance: 30mm Cable Management: 18-22mm FRONT I/O PORTS USB 3.2 Gen 1 Type-A: 2 USB 3.2 Gen 2 Type-C: 1 Headset Audio Jack: 1 RGB AND FAN CONTROLLER Fan Channels: 3 NZXT RGB Connector: 6 (Support up to 120 LEDs) EXPANSION SLOTS Standard: 7 Vertical: 0 DRIVE BAYS 2.5": 4+2 3.5": 2 FAN SUPPORT Front: 3 x 120mm / 3 x 140mm Top: 3 x 120mm / 2 x 140mm Rear: 1 x 120mm / 1 x 140mm Filters: All Air Intakes RADIATOR SUPPORT Front: Up to 360mm with Push/Pull Top: Up to 360mm Rear: Up to 140mm FAN SPECS Model: F140Q (Case Version) Speed: 1200 +/- 240RPM Airflow: 99.56 CFM Static Pressure: 1.14 mm-H2O Noise: 24.18 dBA Fan Connector: 3-pin FAN SPECS Model: F140 RGB Speed: 500 - 1800 RPM Airflow: 24.85 - 89.48 CFM Static Pressure: 0.94 - 3.39 mm-H2O Noise: 20 - 32.5 dBA Fan Connector: 4-pin

Color: Gray Material: Fabric, rubber

MPN RL-KR120-B1 Water Block Dimensions Diameter: 66mm / H: 43mm Material (Block) Copper Material (Housing) Plastic Connector Cable 1 x 500mm NZXT RGB Connector (Male) / 1 x 500mm NZXT RGB Connector (Female) Pump Motor Speed 4,200 + 420 RPM Power 12VDC, 0.34A Radiator Dimensions 120 x 152 x 32mm Material Aluminum Tube Length 400mm Material Ultra-low Evaporation Rubber with Nylon Braided Sleeve Cap Material Plastic LEDs 9 LEDs RGB Input Voltage 5V DC Lighting Support 5V 3-pin ARGB / 5V 4-pin NZXT RGB Fan Model Aer P120 Quantity 1 Dimension 120 x 120 x 26mm Speed 500-2,000 + 300 RPM Air Flow 18.28 - 73.11 CFM Air Pressure 0.18 - 2.93mm-H2O Noise 21-36dBA Bearing Fluid Dynamic Bearing Power Consumption 12V DC, 0.32A, 3.84W Connector 4-pin PWM Life 60,000 hours / 6 Years Compatible Socket and CPU Intel Socket LGA 1200, 115X, 1366, 2011, 2011-3, 2066 AMD AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2 General Model Number RL-KR120-B1

MPN RL-KRZ63-RW Water Block Material (Block) Copper Material (Housing) Plastic Pump Motor Speed 800 - 2,800 +/- 300 RPM Power 12V DC, 0.3A Radiator Material Aluminum Tube Length 400mm Material Ultra-low Evaporation Rubber with Nylon Braided Sleeve Cap Material Aluminum, Plastic Fan Control Yes NZXT RGB Channel Connector 1 Rotation Orientation Software adjustable Default, +90, +180, and -90 Degrees LCD Display Panel Active Area 2.36" (60mm) Diameter Color 24-bit True Color LCD Resolution 320 x 320px Brightness 650 cd/m 2 Fan Specs Model Aer RGB 2 140mm Quantity 2 Speed 500 - 1,500 +/- 300RPM Airflow 30.39 - 91.19 CFM Air Pressure 0.17 - 1.52 mm-H2O Noise 22 - 33 dBA Bearing Fluid Dynamic Bearing Power Consumption 12V DC, 0.32A, 3.8W Fan Connector 4-pin PWM Life 60,000 hours / 6 Years Compatible Socket and CPU Intel Socket LGA 1200, 115X, 1366, 2011, 2011-3, 2066 AMD AMD Socket AM4, sTRX4, TR4 (Threadripper bracket not included)

MPN HF-2812C-TW Key Specs Material(s) Plastic, rubber, PCB Fan Rated Voltage 12V DC, 0.18A, 2.16W LED Quantity 8 Bearing Fluid Dynamic Bearing (FDB) Fan Connector 4-pin PWM Mounting Magnet, Velcro Connector 12V DC / 2.6A Cooling Speed 500 - 1,500 +/- 300RPM Airflow 17.48 - 52.44 CFM Static Pressure 0.15 - 1.35 mm-H2O Noise 22 - 33 dBA Fan Life Hours 60,000 Years 6 Output Channel Voltage 5V DC RGB Lighting Channels 2 Fan Channels 3 LED Color RGB

MPN HF-2812C-TB Key Specs Material(s) Plastic, rubber, PCB Fan Rated Voltage 12V DC, 0.18A, 2.16W LED Quantity 8 Bearing Fluid Dynamic Bearing (FDB) Fan Connector 4-pin PWM Mounting Magnet, Velcro Connector 12V DC / 2.6A Cooling Speed 500 - 1,500 +/- 300RPM Airflow 17.48 - 52.44 CFM Static Pressure 0.15 - 1.35 mm-H2O Noise 22 - 33 dBA Fan Life Hours 60,000 Years 6 Output Channel Voltage 5V DC RGB Lighting Channels 2 Fan Channels 3 LED Color RGB

MPN AP-WUMIC-B1 Materials Materials Extruded Aluminum Structure with PC ABS Shell Polar Pattern Polar Pattern Cardioid Frequency Response Frequency Response 20Hz - 20kHz Max SPL Max SPL 120dB THD THD 0.1% at 1kHz Bit Depth / Sample Rate Bit Depth / Sample Rate 24-bit/96kHz Connection Connection USB-C Headphone Amp Impedance 16ohms THD Less than 0.1% at 1kHz Frequency Response 15Hz - 22kHz Signal to noise 100dB Microphone Thread Microphone Thread Female 1/4

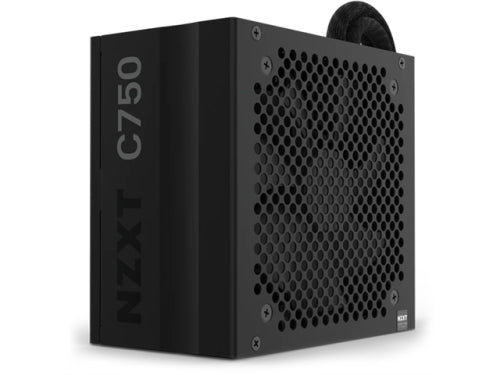

MPN PA-7B1BB-US Inside the Box NZXT C750 Bronze PSU 1 24-pin ATX power (550mm) 1 4+4-Pin CPU Power Cables 2 6+2-pin PCIe Power Cable 3 SATA Cable 2 Peripherals Cable 1 6-32 Screws 4 Key Specs Material(s) Steel, PCB and plastic Compliance Standard ATX12V v2.4 / EPS12V v2.92 AC Input Rating 10A/115V5A/230V 47Hz - 63Hz DC Output Rating Voltage +3.3V / +5V / +5VSB /+12V / -12V Max Load 20A / 20A / 2.5A / 62.5A / 0.3A Voltage Regulation +/-5% / +/-5% / +/-5% / +/-5% / +/-10% Ripple and Noise less than 50 mV p-p / less than 50 mV p-p / less than 50 mV p-p / less than 120 mV p-p / less than 120 mV p-p Output Power (watt) 120 / 120 / 12.5 / 750 / 3.6 Total 750 Fan Specs Dimensions 120 x 120 x 25 (mm) Speed 2400 +/-10% RPM Airflow 72.90 CFM Noise Less than 44 dBA Bearing FDB (Fluid Dynamic Bearing) Energy Efficiency Rating 80 Plus Bronze 10% loading 82% 20% loading 83% 50% loading 87% 100% loading 83% Operation PF Correction Active at 0.96 MTBF 100,000 hours Operation Temperature 0 to 40 o C Output Connector(s) 24-pin ATX Power 1 4+4-pin CPU power 2 6+2-pin PCIe power 6 SATA Power 6 Peripherals 3 General Regulations and Certifications (EMC and Safety) CB / CE / FCC / TUV / cTUV-SUDus / China CCC / Taiwan BSMI R33245/ Australia RCM / EAC / UKCA / WEEE / Hazardous Materials RoHS and China RoHS

MPN RL-KRZ53-R1 Water Block Material (Block) Copper Material (Housing) Plastic Pump Motor Speed 800 - 2,800 +/- 300 RPM Power 12V DC, 0.3A Radiator Material Aluminum Tube Length 400mm Material Ultra-low Evaporation Rubber with Nylon Braided Sleeve Cap Material Aluminum, Plastic Fan Control Yes NZXT RGB Channel Connector 1 Rotation Orientation Software adjustable Default, +90, +180, and -90 Degrees LCD Display Panel Active Area 2.36" (60mm) Diameter Color 24-bit True Color LCD Resolution 320 x 320px Brightness 650 cd/m 2 Fan Specs Model Aer RGB 2 120mm Quantity 2 Speed 500 - 1,500 +/- 300RPM Airflow 17.48 - 52.44 CFM Air Pressure 0.14 - 1.35 mm-H2O Noise 22 - 33 dBA Bearing Fluid Dynamic Bearing Power Consumption 12V DC, 0.18A, 2.2W Fan Connector 4-pin PWM Life 60,000 hours / 6 Years Compatible Socket and CPU Intel Socket LGA 1200, 115X, 1366, 2011, 2011-3, 2066 AMD AMD Socket AM4, sTRX4, TR4 (Threadripper bracket not included)

MPN RL-KRZ63-R1 Water Block Material (Block) Copper Material (Housing) Plastic Pump Motor Speed 800 - 2,800 +/- 300 RPM Power 12V DC, 0.3A Radiator Material Aluminum Tube Length 400mm Material Ultra-low Evaporation Rubber with Nylon Braided Sleeve Cap Material Aluminum, Plastic Fan Control Yes NZXT RGB Channel Connector 1 Rotation Orientation Software adjustable Default, +90, +180, and -90 Degrees LCD Display Panel Active Area 2.36" (60mm) Diameter Color 24-bit True Color LCD Resolution 320 x 320px Brightness 650 cd/m 2 Fan Specs Model Aer RGB 2 140mm Quantity 2 Speed 500 - 1,500 +/- 300RPM Airflow 30.39 - 91.19 CFM Air Pressure 0.17 - 1.52 mm-H2O Noise 22 - 33 dBA Bearing Fluid Dynamic Bearing Power Consumption 12V DC, 0.32A, 3.8W Fan Connector 4-pin PWM Life 60,000 hours / 6 Years Compatible Socket and CPU Intel Socket LGA 1200, 115X, 1366, 2011, 2011-3, 2066 AMD AMD Socket AM4, sTRX4, TR4 (Threadripper bracket not included)

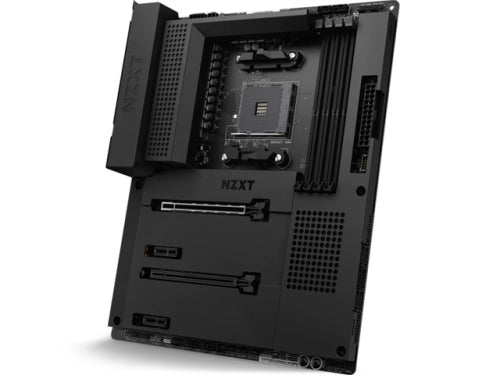

MPN N7-B55XT-B1 CPU AMD Socket AM4 Ryzen Processors (3000, 4000, and 5000 Series Processors) Supported AMD Ryzen 5 3400G and Ryzen 3200G Not Supported Chipset AMD B550 Memory DIMM Slots 4 Max Memory Support 128GB Memory Architecture Dual-Channel OC Frequency (Vermeer CPUs) 4666+ MHz OC Frequency (Matisse CPUs) 4666+ MHz OC Frequency (Renoir APUs) 4733+ MHz Base Frequency 3200/ 2933/ 2667/ 2400/ 2133 Type ECC and non-ECC, un-buffered memory XMP Support Supported Integrated Graphics AMD Radeon Vega Series Graphics in Ryzen Series APU HDMI HDMI Max Resolution 4096x2160 at 60Hz Max Shared Memory 16GB with 32GB installed Microsoft PlayReady Supported Multi-GPU Support AMD 2-Way CrossFireX Technology Supported Expansion Slots PCIe x16 (x16 mode) 1 (Vermeer and Matisse - PCIe 4.0, Renoir - PCIe 3.0) PCIe x16 (x4 mode) 1 PCIe 3.0 x1 2 Storage (Chipset) M.2 Type 2242/2260/2280 (x4 mode) 1 (Vermeer and Matisse - PCIe 4.0, Renoir - PCIe 3.0) M.2 Type 2242/2260/2280 (PCIe 3.0 x2 and SATA mode) 1 SATA 6Gb/s 6x (M2_2 and SATA3_5_6 share lanes) RAID 0/1/5/10 Support Supported LAN Realtek RTL8125BG 2.5G Wireless Intel Dual-Band Wireless AX210 Wi-Fi 6E Protocol 802.11 a/b/g/n/ac/ax Frequency Bands 2.4 / 5 / 6GHz MU-MIMO Support Supported Bluetooth V5.2 Audio Realtek ALC1220 Codec Channels 8-Channel High Definition Audio Playback 32-bit / 192kHz DAC Capacitors Nichicon Fine Gold Series Rear I/O USB 3.2 Gen 2 (Type-C) 1 USB 3.2 Gen 2 (Type-A) 3 USB 3.2 Gen 1 (Type-A) 4 USB 2.0 2 HDMI 2.1 1 Wireless Antenna 2 (2T2R) LAN (RJ45) Port 1 5.1-Channel Audio Jacks 1 Optical S/PDIF 1 BIOS Flashback Button 1 Clear CMOS Button 1 Internal I/O M.2 (M Key), Type 2242/2260/2280 1 (PCIe 4.0/3.0 x4 mode), 1 (PCIe 3.0 x2 and SATA mode) M.2 (E Key) (For wireless cards) 1 SATA 6Gbps Ports 6 USB 3.2 Gen 2 Header (Type-C) 1 USB 3.2 Gen 1 Header 1 (Up to 2 ports) USB 2.0 Header 3 (Up to 6 ports) Front Panel Audio 1 CPU_FAN Connector 1 (Up to 24W) AIO_PUMP Connector 1 (Up to 24W) SYS_FAN Connector 5 (Up to 24W) NZXT RGB LED Header 2 5V ARGB Header 1 12V RGB Header 1 24-pin EATX Power 1 8-pin ATX 12V Power 1 4-pin ATX 12V Power 1 Power Button 1 Reset Button 1 POST LEDs 4 General Operating System Windows 10 64-bit Form Factor ATX

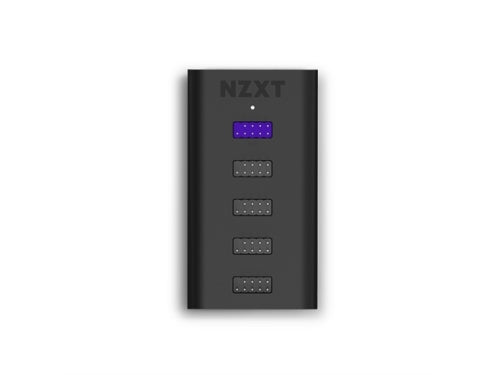

MPN AC-IUSBH-M3 Material(s) Plastic, PCB, Magnets Mounting Magnets, 3M Dual Lock Connections 1 x USB 2.0 Header, 1 x SATA Input Channel Voltage 5V DC System Requirements Requires a USB 2.0 internal connector.

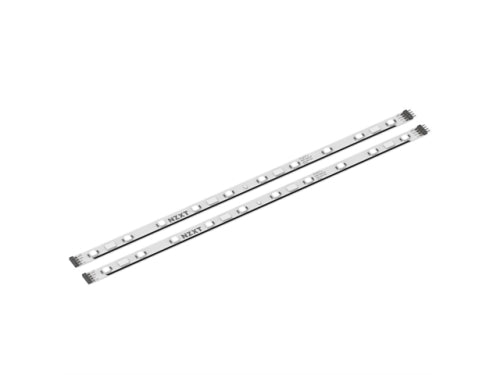

MPN AH-2S620-D1 Output LED Quantity 2 strips / 6 LEDs per strip - 200mm LED Color RGB Included Accessories 200mm LED strips x2 500mm Extension cable x1 500mm Connection cable System Requirements PC with RGB lighting controller and Windows 10 operating system. Internet connection is needed to download CAM. Some CAM features require Internet access, a valid email address, and acceptance of our current Terms of Service.

MPN RL-KRZ63-01 Water Block Dimensions(LxWxH): 79 x 79 x 52 mm Material: Block: Copper, Housing: Plastic Pump Motor Speed Power: 800 - 2,800 + 300 RPM, 12V DC, 0.3A Radiator Dimensions: 143 x 315 x 30mm Material: Aluminum Tube Length: 400mm Material: Ultra-low Evaporation Rubber with Nylon Braided Sleeve Cap Display Orientation: Software adjustable Default and -90 o orientation Display Panel Active Area: 2.36 (60mm) diameter Display Color: 24-bit true color LCD Display Resolution: 320 x 320 px Display Brightness: 650 cd/m 2 Fans Quantity: 2 Dimension: 140 x 140 x 26mm Speed: 500-1,800 + 300 RPM Air Flow: 2 7. 2 7 - 9 8 .1 7 C F M Air Pressure: 0.21 - 2.71mm-H2O Noise: 21-38dBA Bearing: Fluid Dynamic Bearing Power Consumption: 12V DC, 0.38A, 4.56W Connector: 4-pin PWM Life: 60,000 hours / 6 Years Compatible Socket and CPU Intel Socket LGA 1151, 1150, 1155, 1156, 1366, 2011, 2011-3, 2066 Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron AMD Socket AM4, sTRX4, TR4(Threadripper bracket not included) AMD Ryzen 7 / Ryzen 5 / Ryzen 3 / Ryzen 9 / Threadripper

MPN RL-KRX73-01 Water Block Dimensions(LxWxH): 80 x 80 x 55 mm Material: Block: Copper, Housing: Plastic Pump Motor Speed and Power: 800 - 2,800 + 300 RPM, 12V DC, 0.3A Tube Length: 400mm Material: Ultra-low Evaporation Rubber with Nylon Braided Sleeve Radiator Dimensions: 121 x 394 x 27mm Material: Aluminum Cap Material: Plastic and brass Rotation Orientation: 360 o with 30 o increments HUE 2 Channel Output Voltage: 5V DC HUE 2 Channel Output LED Qty.: Up to four LED strips - 10 LEDs per strip, Up to five Aer RGB fans, Up to six HUE 2 accessories Fans Aer P120 Quantity: 3 Dimension: 120 x 120 x 26mm Speed: 500-2,000 + 300 RPM Air Flow: 1 8 . 2 8 - 7 3 .1 1 C F M Air Pressure: 0 .1 8 - 2 . 9 3 m m H2O Noise: 21-36dBA Bearing: Fluid Dynamic Bearing Power Consumption: 12V DC, 0.32A, 3.84W Connector: 4-pin PWM Life: 60,000 hours / 6 Years Compatible Socket and CPU Intel Socket LGA 1151, 1150, 1155, 1156, 1366, 2011, 2011-3, 2066 Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron AMD Socket AM4, sTRX4, TR4(Threadripper bracket not included) AMD Ryzen 7 / Ryzen 5 / Ryzen 3 / Ryzen 9 / Threadripper

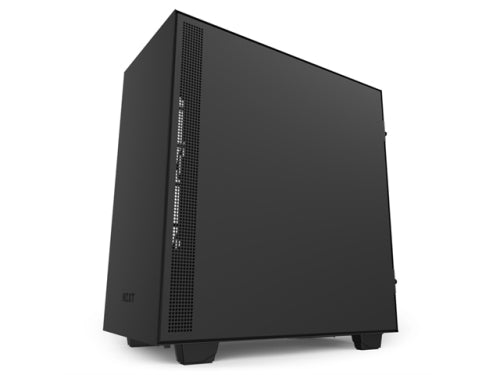

MPN CA-H510B-BR Material(s) SGCC Steel and Tempered Glass Motherboard Support Mini-ITX, MicroATX, and ATX Front I/O Ports H510: 1x USB 3.1 Gen 2 Type-C 1x USB 3.1 Gen 1 Type-A 1x Headset audio Jack H511: 2x USB 3.1 Gen 1 Type-A 1x Headset audio Jack Front I/O internal header 1x USB 3.1 Gen 2 Internal Header 1x USB 3.1 Gen 1 Internal Header 1x HD Audio Header Filters All Air Intakes Included Accessories Installation screws 10x Cable ties 1x Headset Audio Jack splitter (4 pole to 3 pole) Drive Bays 2.5": 2+1 3.5": 2+1 Expansion Slots 7 Radiator Support Front: 2x 140 or 2x 120mm with Pull Rear: 1x 120mm Fan Support Front: 2 x 120/ 2 x 140mm Top: 1x 120mm/ 1x 140mm (1 Aer F120 Case Version included) Rear: 1x 120mm (1 Aer F120 Case Version included) Fan Specs Aer F120 (Case Version) Speed: 1200 +/- 200 RPM Airflow: 50.42 CFM Noise: 28 dBA Bearing: Rifle Bearing Clearance Cable Management: 19-23mm GPU Clearance: Up to 381mm w/o front watercooler installed, up to 325mm with front watercooler installed CPU Cooler: Up to 165mm Front Radiator: 60mm Rear Radiator: 60mm Reservoir and Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel)
