Lian_li

Model LANCOOL II MESH RGB+ type C Motherboard E-ATX(width: under 280mm)/ATX/M-ATX/ITX PSU 210mm Color black/ snow edition Materials Steel 4.0mm tempered glass (both sides) Fan Support Front (multi-way fan/radiator bracket): 3 x 120mm or 2 x 140mm Top: 2 x 120/140mm Rear: 1 x 120mm Above PSU Chamber: 2 x 120mm Radiator Front (multi-way fan/radiator bracket): 1 x 360/280/240mm Top: 1 x 240mm (aligned to the left) VGA Length 384mm CPU Clearance 176mm Drive Behind MB Tray: 2 x 2.5 SSD Behind the right flip panel: 2 x 2.5SSD Hard Drive Cage: 3 x 3.5 HDD/2.5 SSD Above PSU Chamber: 2 x 2.5 SSD Slot 7 I/O Ports C button for color control M button for lighting mode control 1 x TRRS AUDIO 2 x USB 3.0 1 x USB 3.1 TYPEC Dust Filters 1 x Top (magnetic), 1 x Bottom (tray) Incl Fans 3 x included 120mm 3-PIN 1300 RPM ARGB fans Rated Speed:1300RPM +/-10 % Air Flow:49.14CFM Noise:25.0dB(A)

PRODUCT NAME LIAN LI ADDRESSABLE RGB STRIMER PLUS V2 24-PIN MODEL PW24-PV2 MATERIAL SILICONE/TPE CABLE LENGH 200mm GAUGE 18AWG NUMBER OF LEDS 120 ACCESSORIES Controller for L-Connect 3

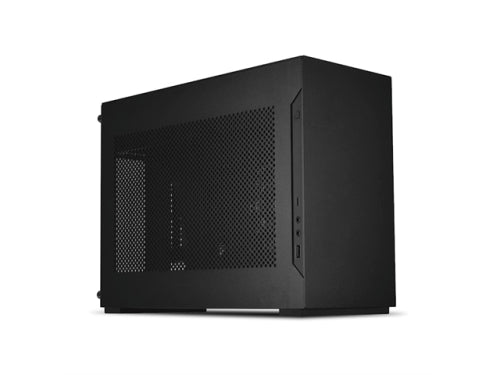

COLOR Anodized Black Exterior Matte Black Interior RISER CABLE GENERATION PCIe 4.0 CAPACITY 11L MATERIALS Aluminum Exterior SPCC Steel Interior MOTHERBOARD SUPPORT Mini-ITX FAN SUPPORT Top: 2x 120mm RADIATOR SUPPORT Top: 1x 240mm (55mm. max total thickness with fans) PSU SUPPORT SFX, SFX-L GPU LENGTH CLEARANCE Max 322mm CPU COOLER CLEARANCE Max 55mm DRIVE SUPPORT 1x 2.5 inch SSD EXPANSION SLOT 3 I/O PORTS 1x USB 3.0 TYPE-A, 1x USB 3.1 TYPE-C, 1x Mic, 1x HD Audio.

Model UNI FAN SL120 Rated Voltage DC 12V(FAN) and 5V(LED) Fan Speed 800 to 1900RPM Max. Air Pressure 2.54mmH2O Max. Air Flow 58.54CFM Acoustical Noise (Min-Max.) 17dB to 31dB Locked Current is more than or equal to 0.5mA Bearing Type Fluid Dynamic Bearing(FDB) Operation Voltage DC 12V and 5V Start-up Voltage DC 6.0V Input Current 0.18A(FAN) / 0.6A (LED) Input Power 3.5Watt

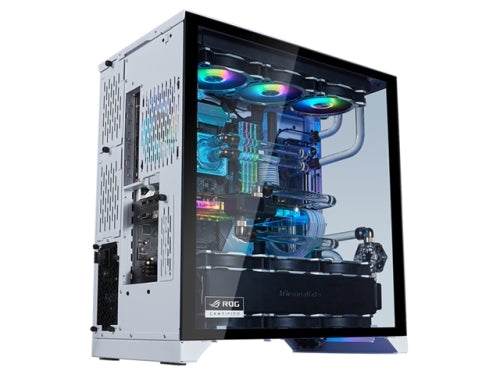

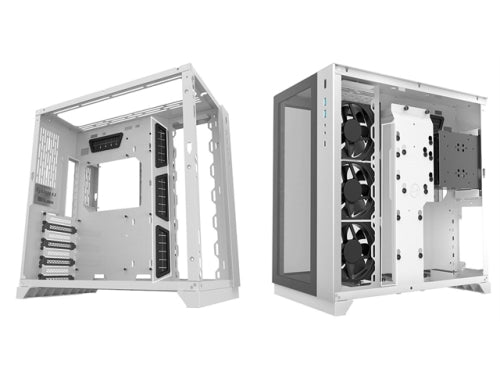

MPN O11DXL-W BRAND O11Dynamic XL ROG Certified MOTHERBOARD E-ATX/ATX/M-ATX/ITX (need to purchase an extension panel for EEB motherboards) PSU 220 mm (max 280mm) COLOR White MATERIAL 1.0 mm ALUMINUM EXTERIOR 4.0 mm TEMPERED GLASS LEFT SIDE PANEL 1.0 mm SGCC INTERIOR SYSTEM FAN SYSTEM FAN: 3 X 120 mm (side) + 1 X 120 mm (rear) + 3 X 120 mm/2 x 140 mm (base) + 3 X 120 mm/2 x 140 mm (top) GPU LENGTH 446 mm CPU CLEARANCE 167 mm DRIVES 10 X 2.5 SSD or 6 X 2.5 SSD + 4 X 3.5 HDD EXPENSION SLOTS 8 I/O PORTS 4 X USB 3.0 (2 on the front, 2 at the front case feet), 1 X USB 3.1 TYPE-C, 1 X HD AUDIO DUST FILTERS 1 X TOP, 1 X BOTTOM, 2 X SIDE

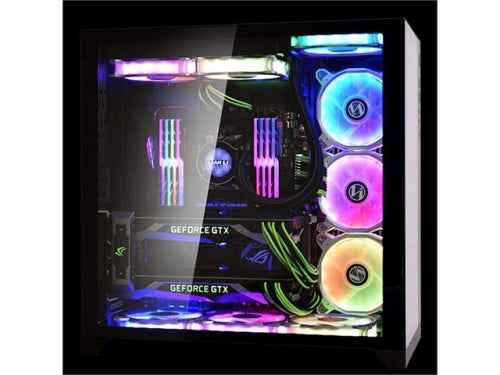

Case Type Tower Chassis Structure Dual chamber Color White Material (Front)Tempered Glass+Aluminum (Side)Tempered Glass (Body)0.8mm SECC Expansion Slot 8 2.5" SSD 4 3.5" HDD 2 I/O Ports USB3.0 x2 , HD Audio USB3.1 Type-C x1 , HD Audio M/B Type E-ATX / ATX / Micro-ATX Fan (Top) 120mm x3 / 140mm x2(Option) (Side) 120mm x3(Option) (Bottom) 120mm x3 (Option) Radiator 120x 360mm / 120x 240mm / 140x 280mm VGA Card length is less than or equal to 420mm , height is less than or equal to 159mm CPU Cooling is less than or equal to 155mm PSU 2,(L)210mm to 255mm(max) Filter (Top) x1,(Side) x2,(Bottom) x1

Model PC-O11 Dynamic Case Type Tower Chassis Structure Dual chamber Color Black Material (Front)Tempered Glass+Aluminum (Side)Tempered Glass (Body)0.8mm SECC Expansion Slot 8 2.5 SSD 4 3.5 HDD 2 I/O Ports USB3.0 x2 , HD Audio USB3.1 Type-C x1 , HD Audio M/B Type E-ATX / ATX / Micro-ATX Fan (Top) 120mm x3 / 140mm x2(Option) (Side) 120mm x3(Option) (Bottom) 120mm x3 (Option) Radiator 120x 360mm / 120x 240mm / 140x 280mm VGA Card length is less than or equal to 420mm , height is less than or equal to 159mm CPU Cooling is less than or equal to 155mm PSU 2(L)210mm to 255mm(max) Filter (Top) x1(Side) x2, (Bottom) x1

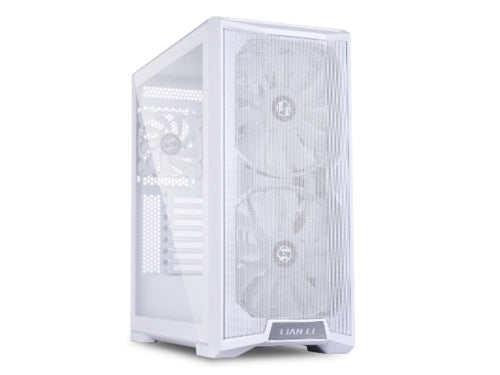

MPN LANCOOL 215 W Product Name LANCOOL 215 Model LANCOOL 215 W Color White Motherboard E-ATX(width: under 280mm)/ATX/M-ATX/ITX PSU 210mm Materials Steel 4.0mm tempered glass (both sides) Incl Fans 2 x 200MM 3-PIN 800 RPM ARGB fans (front) 1 X 120MM 3-PIN 1100 RPM Fans (rear) Fan Support Front: 2 x 140mm or 3 x 120mm Top: 2 x 120mm or 2 x 140mm Top of PSU chamber: 2 x 120mm Radiator Front: 1 x 280/360mm Top: 1 x 240 / 280 mm VGA Length 370mm CPU Clearance 166mm Drive Behind MB Tray: 2 x 2.5 SSD Hard Drive Cage: 2 x 3.5 HDD or 1 x 2.5 SSD Slot 7 I/O Ports Power button Reset button LED button for lighting mode control 1 x HD AUDIO 2 x USB 3.0 Dust Filters 1 x Top (magnetic), 1 x Bottom (tray)

MPN GB-002 PRODUCT NAME Graphic Card Anti-Sag Bracket (Multi-Ways) MODEL NAME GB-002 COLOR Black MATERIAL Steel SUPPORT NUMBER OF GRAPHIC CARDS 2

MPN LANCOOLIIMESHC PERFORM BL Model LANCOOL II MESH PERFORMANCE Motherboard E-ATX(width: under 280mm)/ATX/M-ATX/ITX PSU 210mm Color black Materials Steel 4.0mm tempered glass (both sides) Fan Support Front: 2 x 140mm or 3 x 120mm Top: 2 x 120mm or 2 x 140mm Top of PSU chamber: 2 x 120mm Radiator Front (multi-way fan/radiator bracket): 1 x 360/280/240mmTop: 1 x 240mm (aligned to the left) VGA Length 384mm CPU Clearance 176mm Drive Behind MB Tray: 2 x 2.5 SSDBehind the right flip panel: 2 x 2.5SSD Hard Drive Cage: 3 x 3.5 HDD/2.5 SSD Above PSU Chamber: 2 x 2.5 SSD Slot 7 I/O Ports 1 x Fan speed control button1 x TRRS AUDIO 2 x USB 3.0 1 x USB 3.1 TYPEC Dust Filters 1 x Top (magnetic), 1 x Bottom (tray) Incl Fans 2 x 140mm PWM Fan (front) Rated Speed:600 +/-200 (30% Duty)-1200RPM +/-10% Air Flow:60.56CFM Noise:25.8dB(A)1x 120mm PWM fan (rear) Rated Speed:600 +/-200 (30% Duty)-1500RPM +/-10% Air Flow:54.6CFM Noise:26.1dB(A)

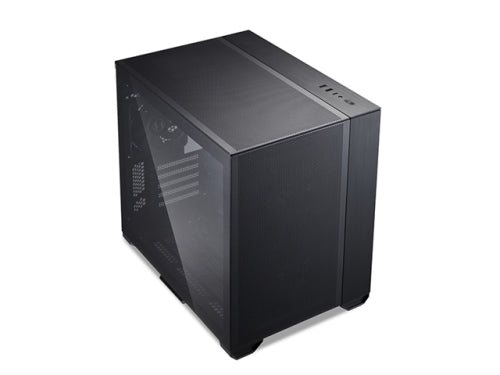

MPN O11AMX PRODUCT NAME O11 Air MINI COLOR Black MATERIAL 4mm Aluminum Panel 0.8mm Mesh Panel 4.0 mm Tempered Glass MOTHERBOARD SUPPORT E-ATX (Max 280 mm wide)/ ATX/ Micro-ATX/ Mini-ITX PSU SUPPORT ATX (Max. 200 mm) INCLUDED FAN (Front) 2 X 140mm PWM Fan (Rear) 1 X 120mm PWM Fan FAN SUPPORT (Top) 120mm X3 / 140mm X2 (Side) 120mm X2 (Bottom) 120mm X2/ 140mm X2 (Front) 120mm X2/ 140mm X2 (Rear)120 mm X1 RADIATOR SUPPORT (Top) 240mm or 280mm (Side) 240mm (Bottom) 240mm or 280mm (Front) 240mm or 280mm DRIVE SUPPORT 6 X 2.5" SSD or 2 X 2.5" SSD + 4 X 3.5" HDD GPU LENGTH CLEARANCE 362 mm CPU HEIGHT CLEARANCE 170 mm EXPANSION SLOTS 7 or 5 (depends on the back panel) I/O PORTS 2 X USB 3.0 1 X USB 3.1 Type-c 1 X HD Audio DUST FILTER 1 x removable bottom dust tray

MPN O11AMW PRODUCT NAME O11 Air MINI COLOR White MATERIAL 4mm Aluminum Panel 0.8mm Mesh Panel 4.0 mm Tempered Glass MOTHERBOARD SUPPORT E-ATX (Max 280 mm wide)/ ATX/ Micro-ATX/ Mini-ITX PSU SUPPORT ATX (Max. 200 mm) INCLUDED FAN (Front) 2 X 140mm PWM Fan (Rear) 1 X 120mm PWM Fan FAN SUPPORT (Top) 120mm X3 / 140mm X2 (Side) 120mm X2 (Bottom) 120mm X2/ 140mm X2 (Front) 120mm X2/ 140mm X2 (Rear)120 mm X1 RADIATOR SUPPORT (Top) 240mm or 280mm (Side) 240mm (Bottom) 240mm or 280mm (Front) 240mm or 280mm DRIVE SUPPORT 6 X 2.5" SSD or 2 X 2.5" SSD + 4 X 3.5" HDD GPU LENGTH CLEARANCE 362 mm CPU HEIGHT CLEARANCE 170 mm EXPANSION SLOTS 7 or 5 (depends on the back panel) I/O PORTS 2 X USB 3.0 1 X USB 3.1 Type-c 1 X HD Audio DUST FILTER 1 x removable bottom dust tray

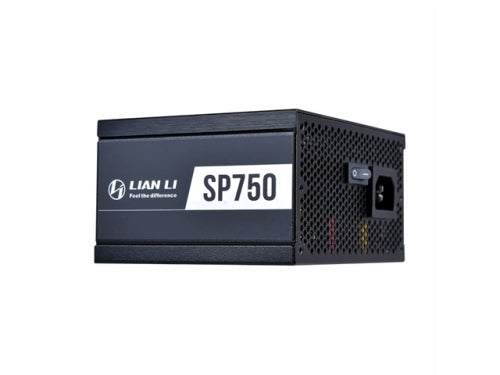

MPN SP750 Power supply design Full modular Color Black Material Steel / brush aluminum housing Form factor SFX Certification 80 PLUS Gold Max. DC Output 750W Combined +3.3V and +5V 100W Combined +12V 744W Input Voltage 90 to 264 Vrms Input Frequency Range 47Hz - 63 Hz PFC Active PFC (PF)>0.90 at full load Efficiency 91.94 to 89.09 at 20% to 100% Load Connectors 1 x 24 / 20-Pin motherboard connector (300mm) x 1pcs 2 x 8 / 4-Pin EPS / ATX 12V connector (400mm) x 2pcs 1 x 8 / 6-Pin PCIe connector (450mm-100mm_6-Pin PCIe Connector) x 1pcs 1 x 8 / 6-Pin PCIe connector (450mm) x 1pcs 8 x SATA connector (100mm-115mm-115mm-115mm) x 2pcs 2 x 4-Pin Peripheral connector (100mm-115mm) x 1pcs Noise Level 17.6 - 31.8 dBA

MPN O11D MINI -X Product Name O11 Dynamic MINI COLOR Black MOTHERBOARD ATX/ Micro-ATX/ Mini-ITX PSU SFX/ SFX-L MATERIAL 0.8mm SPCC (body) 1mm SPCC (interior, back panel) 4 mm Tempered Glass 2mm Aluminum (top and left panel) FAN SUPPORT Top: 3x 120mm or 2x 140mm Side: 2x 120mm or 2x 140mm Bottom: 3x 120mm or 2x 140mm Rear: 1x 120mm RADIATOR SUPPORT Top: 360mm or 280mm or 240mm radiator Side: 240mm or 280mm radiator Bottom: 360 or 280mm or 240mm radiator GPU LENGTH CLEARANCE 395mm CPU COOLER HEIGHT CLEARANCE 170mm VGA Length 370mm DRIVES Right side 2 x 2.5" SSD + back plate 2 x 3.5" HDD (or SSD) EXPANSION SLOTS 3 or 5 or 7 slots (depends on back panel) IO PORTS 2 x USB 3.0, 1 x USB 3.1 TYPE-C, 1 x HD Audio, Power Button DUST FILTERS 1 x Top, 1 x Bottom, 2 x Side
