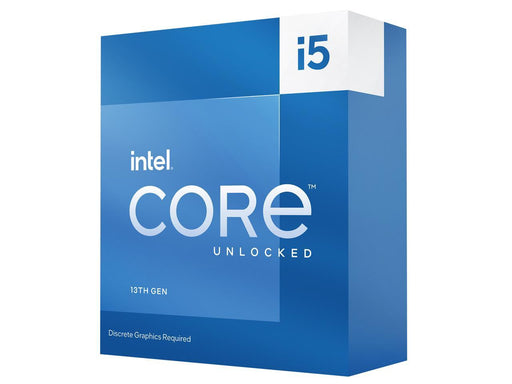

Essentials Product Collection 13th Generation Intel Core i5 Processors Code Name Products formerly Raptor Lake Vertical Segment Desktop Processor Number i5-13600K Lithography Intel 7 Use Conditions PC/Client/Tablet CPU Specifications Total Cores 14 Number of Performance-cores 6 Number of Efficient-cores 8 Total Threads 20 Max Turbo Frequency 5.10 GHz Performance-core Max Turbo Frequency 5.10 GHz Efficient-core Max Turbo Frequency 3.90 GHz Performance-core Base Frequency 3.50 GHz Efficient-core Base Frequency 2.60 GHz Cache 24 MB Intel Smart Cache Total L2 Cache 20 MB Processor Base Power 125 W Maximum Turbo Power 181 W Supplemental Information Embedded Options Available No Memory Specifications Max Memory Size (dependent on memory type) 128 GB Memory Types Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s Max Number of Memory Channels 2 Max Memory Bandwidth 89.6 GB/s ECC Memory Supported Yes Processor Graphics Processor Graphics Intel UHD Graphics 770 Graphics Base Frequency 300 MHz Graphics Max Dynamic Frequency 1.50 GHz Graphics Output eDP 1.4b, DP 1.4a, HDMI 2.1 Execution Units 32 Max Resolution (HDMI) 4096 x 2160 at 60Hz Max Resolution (DP) 7680 x 4320 at 60Hz Max Resolution (eDP - Integrated Flat Panel) 5120 x 3200 at 120Hz DirectX Support 12 OpenGL Support 4.5 OpenCL Support 3.0 Multi-Format Codec Engines 2 Intel Quick Sync Video Yes Intel Clear Video HD Technology Yes Number of Displays Supported 4 Device ID 0xA780 Expansion Options Direct Media Interface (DMI) Revision 4.0 Max Number of DMI Lanes 8 Scalability 1S Only PCI Express Revision 5.0 and 4.0 PCI Express Configurations Up to 1x16+4, 2x8+4 Max Number of PCI Express Lanes 20 Package Specifications Sockets Supported FCLGA1700 Max CPU Configuration 1 TJUNCTION 100 o C Advanced Technologies Intel Gaussian and Neural Accelerator 3.0 Intel Thread Director Yes Intel Deep Learning Boost (Intel DL Boost) Yes Intel Speed Shift Technology Yes Intel Turbo Boost Max Technology 3.0 No Intel Turbo Boost Technology 2.0 Intel Hyper-Threading Technology Yes Intel 64 Yes Instruction Set 64-bit Instruction Set Extensions Intel SSE4.1, Intel SSE4.2, Intel AVX2 Idle States Yes Enhanced Intel SpeedStep Technology Yes Thermal Monitoring Technologies Yes Intel Volume Management Device (VMD) Yes Security and Reliability Intel Standard Manageability (ISM) Yes Intel Control-Flow Enforcement Technology Yes Intel AES New Instructions Yes Secure Key Yes Intel OS Guard Yes Intel Trusted Execution Technology Yes Execute Disable Bit Yes Intel Boot Guard Yes Mode-based Execute Control (MBEC) Yes Intel Stable IT Platform Program (SIPP) Yes Intel Virtualization Technology with Redirect Protection (VT-rp) Yes Intel Virtualization Technology (VT-x) Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel VT-x with Extended Page Tables (EPT) Yes

Essentials Product Collection 12th Generation Intel Core i9 Processors Code Name Products formerly Alder Lake Vertical Segment Desktop Processor Number i9-12900F Lithography Intel 7 Use Conditions PC/Client/Tablet CPU Specifications Total Cores 16 Number of Performance-cores 8 Number of Efficient-cores 8 Total Threads 24 Max Turbo Frequency 5.10 GHz Intel Turbo Boost Max Technology 3.0 Frequency 5.10 GHz Performance-core Max Turbo Frequency 5.00 GHz Efficient-core Max Turbo Frequency 3.80 GHz Performance-core Base Frequency 2.40 GHz Efficient-core Base Frequency 1.80 GHz Cache 30 MB Intel Smart Cache Total L2 Cache 14 MB Processor Base Power 65 W Maximum Turbo Power 202 W Supplemental Information Embedded Options Available No Memory Specifications Max Memory Size (dependent on memory type) 128 GB Memory Types Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s Max Number of Memory Channels 2 Max Memory Bandwidth 76.8 GB/s Expansion Options Direct Media Interface (DMI) Revision 4.0 Max Number of DMI Lanes 8 Scalability 1S Only PCI Express Revision 5.0 and 4.0 PCI Express Configurations Up to 1x16+4, 2x8+4 Max Number of PCI Express Lanes 20 Package Specifications Sockets Supported FCLGA1700 Max CPU Configuration 1 Thermal Solution Specification PCG 2020C TJUNCTION 100 o C Package Size 45.0 mm x 37.5 mm Advanced Technologies Intel Gaussian and Neural Accelerator 3.0 Intel Thread Director Yes Intel Deep Learning Boost (Intel DL Boost) Yes Intel Optane Memory Supported Yes Intel Speed Shift Technology Yes Intel Turbo Boost Max Technology 3.0 Yes Intel Turbo Boost Technology 2.0 Intel Hyper-Threading Technology Yes Intel 64 Yes Instruction Set 64-bit Instruction Set Extensions Intel SSE4.1, Intel SSE4.2, Intel AVX2 Idle States Yes Enhanced Intel SpeedStep Technology Yes Thermal Monitoring Technologies Yes Intel Volume Management Device (VMD) Yes Security and Reliability Intel Standard Manageability (ISM) Yes Intel AES New Instructions Yes Secure Key Yes Intel OS Guard Yes Execute Disable Bit Yes Intel Boot Guard Yes Mode-based Execute Control (MBEC) Yes Intel Control-Flow Enforcement Technology Yes Intel Virtualization Technology (VT-x) Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel VT-x with Extended Page Tables (EPT) Yes

Essentials Product Collection 12th Generation Intel Core i5 Processors Code Name Products formerly Alder Lake Vertical Segment Desktop Processor Number i5-12600 Lithography Intel 7 Use Conditions PC/Client/Tablet, Workstation CPU Specifications Total Cores 6 Number of Performance-cores 6 Number of Efficient-cores 0 Total Threads 12 Max Turbo Frequency 4.80 GHz Performance-core Max Turbo Frequency 4.80 GHz Performance-core Base Frequency 3.30 GHz Cache 18 MB Intel Smart Cache Total L2 Cache 7.5 MB Processor Base Power 65 W Maximum Turbo Power 117 W Supplemental Information Embedded Options Available No Memory Specifications Max Memory Size (dependent on memory type) 128 GB Memory Types Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s Max Number of Memory Channels 2 Max Memory Bandwidth 76.8 GB/s ECC Memory Supported Yes Processor Graphics Processor Graphics Intel UHD Graphics 770 Graphics Base Frequency 300 MHz Graphics Max Dynamic Frequency 1.45 GHz Graphics Output eDP 1.4b, DP 1.4a, HDMI 2.1 Execution Units 32 Max Resolution (HDMI) 4096 x 2160 at 60Hz Max Resolution (DP) 7680 x 4320 at 60Hz Max Resolution (eDP - Integrated Flat Panel) 5120 x 3200 at 120Hz DirectX Support 12 OpenGL Support 4.5 Multi-Format Codec Engines 2 Intel Quick Sync Video Yes Intel Clear Video HD Technology Yes Number of Displays Supported 4 Device ID 0x4690 OpenCL Support 2.1 Expansion Options Direct Media Interface (DMI) Revision 4.0 Max Number of DMI Lanes 8 Scalability 1S Only PCI Express Revision 5.0 and 4.0 PCI Express Configurations Up to 1x16+4, 2x8+4 Max Number of PCI Express Lanes 20 Package Specifications Sockets Supported FCLGA1700 Max CPU Configuration 1 Thermal Solution Specification PCG 2020C TJUNCTION 100 o C Package Size 45.0 mm x 37.5 mm Advanced Technologies Intel Gaussian and Neural Accelerator 3.0 Intel Thread Director No Intel Deep Learning Boost (Intel DL Boost) Yes Intel Optane Memory Supported Yes Intel Speed Shift Technology Yes Intel Turbo Boost Max Technology 3.0 No Intel Turbo Boost Technology 2.0 Intel Hyper-Threading Technology Yes Intel 64 Yes Instruction Set 64-bit Instruction Set Extensions Intel SSE4.1, Intel SSE4.2, Intel AVX2 Idle States Yes Enhanced Intel SpeedStep Technology Yes Thermal Monitoring Technologies Yes Intel Volume Management Device (VMD) Yes Security and Reliability Intel vPro Platform Eligibility Yes Intel vPro Enterprise Platform Eligibility Yes Intel vPro Essentials Platform Eligibility Yes Intel Threat Detection Technology (TDT) Yes Intel Active Management Technology (AMT) Yes Intel Standard Manageability (ISM) Yes Intel One-Click Recovery Yes Intel Hardware Shield Eligibility Yes Intel AES New Instructions Yes Secure Key Yes Intel OS Guard Yes Intel Trusted Execution Technology Yes Execute Disable Bit Yes Intel Boot Guard Yes Mode-based Execute Control (MBEC) Yes Intel Control-Flow Enforcement Technology Yes Intel Total Memory Encryption - Multi Key Yes Intel Total Memory Encryption Yes Intel Stable IT Platform Program (SIPP) Yes Intel Virtualization Technology with Redirect Protection (VT-rp) Yes Intel Virtualization Technology (VT-x) Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel VT-x with Extended Page Tables (EPT) Yes

Essentials Product Collection 12th Generation Intel Core i3 Processors Code Name Products formerly Alder Lake Vertical Segment Desktop Processor Number i3-12100 Lithography Intel 7 Use Conditions PC/Client/Tablet CPU Specifications Total Cores 4 Number of Performance-cores 4 Number of Efficient-cores 0 Total Threads 8 Max Turbo Frequency 4.30 GHz Performance-core Max Turbo Frequency 4.30 GHz Performance-core Base Frequency 3.30 GHz Cache 12 MB Intel Smart Cache Total L2 Cache 5 MB Processor Base Power 60 W Maximum Turbo Power 89 W Supplemental Information Embedded Options Available Yes Memory Specifications Max Memory Size (dependent on memory type) 128 GB Memory Types Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s Max Number of Memory Channels 2 Max Memory Bandwidth 76.8 GB/s Processor Graphics Processor Graphics Intel UHD Graphics 730 Graphics Base Frequency 300 MHz Graphics Max Dynamic Frequency 1.40 GHz Graphics Output eDP 1.4b, DP 1.4a, HDMI 2.1 Execution Units 24 Max Resolution (HDMI) 4096 x 2160 at 60Hz Max Resolution (DP) 7680 x 4320 at 60Hz Max Resolution (eDP - Integrated Flat Panel) 5120 x 3200 at 120Hz DirectX Support 12 OpenGL Support 4.5 Multi-Format Codec Engines 1 Intel Quick Sync Video Yes Intel Clear Video HD Technology Yes Number of Displays Supported 4 Device ID 0x4692 OpenCL Support 2.1 Expansion Options Direct Media Interface (DMI) Revision 4.0 Max Number of DMI Lanes 8 Scalability 1S Only PCI Express Revision 5.0 and 4.0 PCI Express Configurations Up to 1x16+4, 2x8+4 Max Number of PCI Express Lanes 20 Package Specifications Sockets Supported FCLGA1700 Max CPU Configuration 1 Thermal Solution Specification PCG 2020C TJUNCTION 100 o C Package Size 45.0 mm x 37.5 mm Advanced Technologies Intel Gaussian and Neural Accelerator 3.0 Intel Thread Director No Intel Deep Learning Boost (Intel DL Boost) Yes Intel Optane Memory Supported Yes Intel Speed Shift Technology Yes Intel Turbo Boost Max Technology 3.0 No Intel Turbo Boost Technology 2.0 Intel Hyper-Threading Technology Yes Intel 64 Yes Instruction Set 64-bit Instruction Set Extensions Intel SSE4.1, Intel SSE4.2, Intel AVX2 Idle States Yes Enhanced Intel SpeedStep Technology Yes Thermal Monitoring Technologies Yes Intel Volume Management Device (VMD) Yes Security and Reliability Intel Threat Detection Technology (TDT) Yes Intel Standard Manageability (ISM) Yes Intel AES New Instructions Yes Secure Key Yes Intel OS Guard Yes Execute Disable Bit Yes Intel Boot Guard Yes Mode-based Execute Control (MBEC) Yes Intel Control-Flow Enforcement Technology Yes Intel Virtualization Technology (VT-x) Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel VT-x with Extended Page Tables (EPT) Yes

Essentials Product Collection 12th Generation Intel Core i3 Processors Code Name Products formerly Alder Lake Vertical Segment Desktop Processor Number i3-12100F Lithography Intel 7 Use Conditions PC/Client/Tablet CPU Specifications Total Cores 4 Number of Performance-cores 4 Number of Efficient-cores 0 Total Threads 8 Max Turbo Frequency 4.30 GHz Performance-core Max Turbo Frequency 4.30 GHz Performance-core Base Frequency 3.30 GHz Cache 12 MB Intel Smart Cache Total L2 Cache 5 MB Processor Base Power 58 W Maximum Turbo Power 89 W Supplemental Information Embedded Options Available No Memory Specifications Max Memory Size (dependent on memory type) 128 GB Memory Types Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s Max Number of Memory Channels 2 Max Memory Bandwidth 76.8 GB/s Expansion Options Direct Media Interface (DMI) Revision 4.0 Max Number of DMI Lanes 8 Scalability 1S Only PCI Express Revision 5.0 and 4.0 PCI Express Configurations Up to 1x16+4, 2x8+4 Max Number of PCI Express Lanes 20 Package Specifications Sockets Supported FCLGA1700 Max CPU Configuration 1 Thermal Solution Specification PCG 2020C TJUNCTION 100 o C Package Size 45.0 mm x 37.5 mm Advanced Technologies Intel Gaussian and Neural Accelerator 3.0 Intel Thread Director No Intel Deep Learning Boost (Intel DL Boost) Yes Intel Optane Memory Supported Yes Intel Speed Shift Technology Yes Intel Turbo Boost Max Technology 3.0 No Intel Turbo Boost Technology 2.0 Intel Hyper-Threading Technology Yes Intel 64 Yes Instruction Set 64-bit Instruction Set Extensions Intel SSE4.1, Intel SSE4.2, Intel AVX2 Idle States Yes Enhanced Intel SpeedStep Technology Yes Thermal Monitoring Technologies Yes Intel Volume Management Device (VMD) Yes Security and Reliability Intel Standard Manageability (ISM) Yes Intel AES New Instructions Yes Secure Key Yes Intel OS Guard Yes Execute Disable Bit Yes Intel Boot Guard Yes Mode-based Execute Control (MBEC) Yes Intel Control-Flow Enforcement Technology Yes Intel Virtualization Technology (VT-x) Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel VT-x with Extended Page Tables (EPT) Yes

Essentials Product Collection 12th Generation Intel Core i9 Processors Code Name Products formerly Alder Lake Vertical Segment Desktop Processor Number i9-12900 Lithography Intel 7 Use Conditions PC/Client/Tablet, Workstation CPU Specifications Total Cores 16 Number of Performance-cores 8 Number of Efficient-cores 8 Total Threads 24 Max Turbo Frequency 5.10 GHz Intel Turbo Boost Max Technology 3.0 Frequency 5.10 GHz Performance-core Max Turbo Frequency 5.00 GHz Efficient-core Max Turbo Frequency 3.80 GHz Performance-core Base Frequency 2.40 GHz Efficient-core Base Frequency 1.80 GHz Cache 30 MB Intel Smart Cache Total L2 Cache 14 MB Processor Base Power 65 W Maximum Turbo Power 202 W Supplemental Information Embedded Options Available Yes Memory Specifications Max Memory Size (dependent on memory type) 128 GB Memory Types Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s Max Number of Memory Channels 2 Max Memory Bandwidth 76.8 GB/s ECC Memory Supported Yes Processor Graphics Processor Graphics Intel UHD Graphics 770 Graphics Base Frequency 300 MHz Graphics Max Dynamic Frequency 1.55 GHz Graphics Output eDP 1.4b, DP 1.4a, HDMI 2.1 Execution Units 32 Max Resolution (HDMI) 4096 x 2160 at 60Hz Max Resolution (DP) 7680 x 4320 at 60Hz Max Resolution (eDP - Integrated Flat Panel) 5120 x 3200 at 120Hz DirectX Support 12 OpenGL Support 4.5 Multi-Format Codec Engines 2 Intel Quick Sync Video Yes Intel Clear Video HD Technology Yes Number of Displays Supported 4 Device ID 0x4680 OpenCL Support 2.1 Expansion Options Direct Media Interface (DMI) Revision 4.0 Max Number of DMI Lanes 8 Scalability 1S Only PCI Express Revision 5.0 and 4.0 PCI Express Configurations Up to 1x16+4, 2x8+4 Max Number of PCI Express Lanes 20 Package Specifications Sockets Supported FCLGA1700 Max CPU Configuration 1 Thermal Solution Specification PCG 2020C TJUNCTION 100 o C Package Size 45.0 mm x 37.5 mm Advanced Technologies Intel Gaussian and Neural Accelerator 3.0 Intel Thread Director Yes Intel Deep Learning Boost (Intel DL Boost) Yes Intel Optane Memory Supported Yes Intel Speed Shift Technology Yes Intel Turbo Boost Max Technology 3.0 Yes Intel Turbo Boost Technology 2.0 Intel Hyper-Threading Technology Yes Intel 64 Yes Instruction Set 64-bit Instruction Set Extensions Intel SSE4.1, Intel SSE4.2, Intel AVX2 Idle States Yes Enhanced Intel SpeedStep Technology Yes Thermal Monitoring Technologies Yes Intel Volume Management Device (VMD) Yes Security and Reliability Intel vPro Platform Eligibility Yes Intel vPro Enterprise Platform Eligibility Yes Intel vPro Essentials Platform Eligibility Yes Intel Threat Detection Technology (TDT) Yes Intel Active Management Technology (AMT) Yes Intel Standard Manageability (ISM) Yes Intel One-Click Recovery Yes Intel Hardware Shield Eligibility Yes Intel AES New Instructions Yes Secure Key Yes Intel OS Guard Yes Intel Trusted Execution Technology Yes Execute Disable Bit Yes Intel Boot Guard Yes Mode-based Execute Control (MBEC) Yes Intel Control-Flow Enforcement Technology Yes Intel Total Memory Encryption - Multi Key Yes Intel Total Memory Encryption Yes Intel Stable IT Platform Program (SIPP) Yes Intel Virtualization Technology with Redirect Protection (VT-rp) Yes Intel Virtualization Technology (VT-x) Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel VT-x with Extended Page Tables (EPT) Yes

Essentials Product Collection Intel Xeon E Processor Code Name Products formerly Rocket Lake Vertical Segment Server Processor Number E-2378G Lithography 14 nm Use Conditions Server/Enterprise CPU Specifications Total Cores 8 Total Threads 16 Max Turbo Frequency 5.10 GHz Intel Turbo Boost Technology 2.0 Frequency 5.10 GHz Processor Base Frequency 2.80 GHz Cache 16 MB Intel Smart Cache Bus Speed 8 GT/s TDP 80 W Supplemental Information Embedded Options Available No Memory Specifications Max Memory Size (dependent on memory type) 128 GB Memory Types DDR4-3200 Max Number of Memory Channels 2 ECC Memory Supported Yes Intel Optane TM Persistent Memory Supported No Processor Graphics Processor Graphics Intel UHD Graphics P750 Graphics Base Frequency 350 MHz Graphics Max Dynamic Frequency 1.30 GHz Graphics Video Max Memory 64 GB Execution Units 32 4K Support Yes , at 60Hz Max Resolution (HDMI) 4096 x 2160 at 60 Hz Max Resolution (DP) 5120 x 3200 at 60 Hz Max Resolution (eDP - Integrated Flat Panel) 5120 x 3200 at 60 Hz DirectX Support 12.1 OpenGL Support 4.5 Intel Quick Sync Video Yes Intel InTru TM 3D Technology Yes Intel Clear Video HD Technology Yes Intel Clear Video Technology Yes Number of Displays Supported 1 Device ID 0x4C9A Expansion Options Scalability 1S Only PCI Express Revision 4 Microprocessor PCIe Revision Gen 4 PCI Express Configurations Up to 1x16+1x4 , 2x8+1x4 , 1x8+3x4 Max Number of PCI Express Lanes 20 Package Specifications Sockets Supported FCLGA1200 Max CPU Configuration 1 TJUNCTION 100 o C Advanced Technologies Intel Turbo Boost Technology 2 Intel vPro Platform Eligibility Yes Intel Hyper-Threading Technology Yes Intel Virtualization Technology (VT-x) Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel VT-x with Extended Page Tables (EPT) Yes Intel Transactional Synchronization Extensions No Intel 64 Yes Instruction Set 64-bit Instruction Set Extensions Intel SSE4.1 , Intel SSE4.2 , Intel AVX2 , Intel AVX-512 Idle States Yes Enhanced Intel SpeedStep Technology Yes Thermal Monitoring Technologies Yes Security and Reliability Intel AES New Instructions Yes Secure Key Yes Intel Software Guard Extensions (Intel SGX) Yes with Intel SPS Intel Memory Protection Extensions (Intel MPX) Yes Intel OS Guard Yes Intel Trusted Execution Technology Yes Execute Disable Bit Yes Intel Boot Guard Yes Maximum Enclave Page Cache (EPC) Size for Intel SGX 0.5 GB

Essentials Product Collection Intel Xeon W Processor Code Name Products formerly Rocket Lake Vertical Segment Workstation Processor Number W-1350P Lithography 14 nm Use Conditions Workstation CPU Specifications Number of Cores 6 Number of Threads 12 Processor Base Frequency 4.00 GHz Max Turbo Frequency 5.10 GHz Cache 12 MB Intel Smart Cache Bus Speed 8 GT/s Intel Turbo Boost Technology 2.0 Frequency 5.10 GHz TDP 125 W Configurable TDP-down Frequency 3.00 GHz Configurable TDP-down 95 W Supplemental Information Embedded Options Available No Memory Specifications Max Memory Size (dependent on memory type) 128 GB Memory Types DDR4-3200 Max Number of Memory Channels 2 Max Memory Bandwidth 50 GB/s ECC Memory Supported Yes Processor Graphics Processor Graphics Intel UHD Graphics P750 Graphics Base Frequency 350 MHz Graphics Max Dynamic Frequency 1.30 GHz Graphics Video Max Memory 64 GB Execution Units 32 4K Support Yes, at 60Hz Max Resolution (HDMI) 4096x2160 at 60Hz Max Resolution (DP) 5120 x 3200 at 60Hz Max Resolution (eDP - Integrated Flat Panel) 5120 x 3200 at 60Hz DirectX Support 12.1 OpenGL Support 4.5 Intel Quick Sync Video Yes Intel InTru 3D Technology Yes Intel Clear Video HD Technology Yes Intel Clear Video Technology Yes Number of Displays Supported 3 Device ID 0x4C90 OpenCL Support 3.0 Expansion Options Scalability 1S Only PCI Express Revision 4.0 PCI Express Configurations Up to 1x16+1x4, 2x8+1x4, 1x8+3x4 Max Number of PCI Express Lanes 20 Package Specifications Sockets Supported FCLGA1200 Max CPU Configuration 1 Thermal Solution Specification PCG 2019A TJUNCTION 100 o C Package Size 37.5 mm x 37.5 mm Advanced Technologies Intel Deep Learning Boost (Intel DL Boost) Yes Intel Optane Memory Supported Yes Intel Thermal Velocity Boost No Intel Turbo Boost Max Technology 3.0 No Intel Turbo Boost Technology 2.0 Intel vPro Platform Eligibility Yes Intel Hyper-Threading Technology Yes Intel Virtualization Technology (VT-x) Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel VT-x with Extended Page Tables (EPT) Yes Intel 64 Yes Instruction Set 64-bit Instruction Set Extensions Intel SSE4.1, Intel SSE4.2, Intel AVX2, Intel AVX-512 Idle States Yes Enhanced Intel SpeedStep Technology Yes Thermal Monitoring Technologies Yes Intel Identity Protection Technology Yes Intel Gaussian and Neural Accelerator 2.0 Yes Security and Reliability Intel AES New Instructions Yes Secure Key Yes Intel Software Guard Extensions (Intel SGX) No Intel OS Guard Yes Intel Trusted Execution Technology Yes Execute Disable Bit Yes Intel Boot Guard Yes

Essentials Product Collection Intel NUC Kit with 10th Generation Intel Core Processors Code Name Products formerly Frost Canyon Supported Operating Systems Windows 10, 64-bit Board Number NUC10i7FNBN Board Form Factor UCFF (4" x 4") Socket Soldered-down BGA Internal Drive Form Factor M.2 and 2.5" Drive Number of Internal Drives Supported 2 Lithography 14 nm TDP 25 W DC Input Voltage Supported 19 VDC Processor Included Intel Core i7-10710U Processor (12M Cache, up to 4.70 GHz) Intel vPro Platform Eligibility No Number of Cores 6 Number of Threads 12 Processor Base Frequency 1.10 GHz Max Turbo Frequency 4.70 GHz Supplemental Information Embedded Options Available No Description Does not include 3.5mm audio capabilities, Digital Microphones. Memory and Storage Max Memory Size (dependent on memory type) 64 GB Memory Types DDR4-2666 1.2V SO-DIMM Max Number of Memory Channels 2 Max Memory Bandwidth 42.6 GB/s Max Number of DIMMs 2 ECC Memory Supported No Processor Graphics Integrated Graphics Yes Graphics Output HDMI 2.0b USB-C (DP1.2) Number of Displays Supported 3 Expansion Options PCI Express Revision Gen3 PCI Express Configurations M.2 slot with PCIe X4 lanes Removable Memory Card Slot SDXC with UHS-II support M.2 Card Slot (storage) 22x42/80 I/O Specifications Number of USB Ports 7 USB Configuration 2x front (Type-A, Type-C) and 3x rear USB 3.1 Gen2 (2x Type-A, Type-C) 2x USB 2.0 via internal headers USB Revision 2.0, 3.1 Gen2 USB 2.0 Configuration (External + Internal) 0 + 2 USB 3.0 Configuration (External + Internal) 2B 2F + 0 Total Number of SATA Ports 2 Max Number of SATA 6.0 Gb/s Ports 2 RAID Configuration 2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1) Audio (back channel + front channel) 7.1 digital (HDMI mDP) Integrated LAN Intel Ethernet Connection I219-V Integrated Wireless Intel Wi-Fi 6 AX201 Integrated Bluetooth Yes Consumer Infrared Rx Sensor Yes Additional Headers CEC, 2x USB2.0, FRONT_PANEL, RGB Number of Thunderbolt Ports 1x Thunderbolt 3 Package Specifications Chassis Dimensions 117 x 112 x 51mm Advanced Technologies Intel Optane Memory Supported Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel vPro Platform Eligibility No TPM No Intel HD Audio Technology No Intel Rapid Storage Technology Yes Intel Rapid Storage Technology enterprise No Intel Virtualization Technology (VT-x) Yes Intel Platform Trust Technology (Intel PTT) Yes Security and Reliability Intel AES New Instructions Yes

MPN E810CQDA2BLK Essentials Product Collection 800 Series Network Adapters (up to 100GbE) Vertical Segment Server Cable Medium Copper Cabling Type QSFP28 ports - DAC, Optics, and AOCs Bracket Height Low Profile and Full Height Networking Specifications Port Configuration Dual Data Rate Per Port 100/50/25/10/1GbE Intel Virtualization Technology for Connectivity (VT-c) Yes Speed and Slot Width 16 GT/s x16 lanes Controller Intel Ethernet Controller E810 Package Specifications System Interface Type PCIe 4.0 (16 GT/s) Intel Virtualization Technology for Connectivity On-chip QoS and Traffic Management Yes Flexible Port Partitioning Yes Virtual Machine Device Queues (VMDq) Yes PCI-SIG SR-IOV Capable Yes Advanced Technologies iWARP/RDMA Yes RoCEv2/RDMA Yes Intel Data Direct I/O Technology Yes Intelligent Offloads Yes Storage Over Ethernet iSCSI, NFS

Essentials Product Collection Optics and Cables Vertical Segment Server

Essentials Product Collection Intel Wireless Products Code Name Products formerly Cyclone Peak Operating Temperature Range 0 o C to 80 o C Operating Temperature (Maximum) 80 o C Operating Temperature (Minimum) 0 o C Supported Operating Systems Windows 10 Antenna 2x2 Networking Specifications TX/RX Streams 2x2 Bands 2.4GHz, 5GHz Max Speed 2402Mbps Wi-Fi CERTIFIED WiFi 6 (802.11ax) Bluetooth Version 5.1 Integrated Bluetooth Yes Package Specifications Board Form Factor M.2 2230 System Interface Type Wi-Fi(PCIe), BT(USB)

Essentials Product Collection Intel Xeon W Processor Code Name Products formerly Comet Lake Vertical Segment Workstation Processor Number W-1250 Lithography 14 nm Included Items This product is available in tray and box. For boxed product, a thermal solution is included Use Conditions Workstation CPU Specifications Number of Cores 6 Number of Threads 12 Processor Base Frequency 3.30 GHz Max Turbo Frequency 4.70 GHz Cache 12 MB Intel Smart Cache Bus Speed 8 GT/s Intel Turbo Boost Technology 2.0 Frequency 4.70 GHz TDP 80 W Supplemental Information Embedded Options Available No Memory Specifications Max Memory Size (dependent on memory type) 128 GB Memory Types DDR4-2666 Max Number of Memory Channels 2 Max Memory Bandwidth 41.6 GB/s ECC Memory Supported Yes Processor Graphics Processor Graphics Intel UHD Graphics P630 Graphics Base Frequency 350 MHz Graphics Max Dynamic Frequency 1.20 GHz Graphics Video Max Memory 64 GB 4K Support Yes, at 60Hz Max Resolution (HDMI) 4096x2160 at 30Hz Max Resolution (DP) 4096x2304 at 60Hz Max Resolution (eDP - Integrated Flat Panel) 4096x2304 at 60Hz DirectX Support 12 OpenGL Support 4.5 Intel Quick Sync Video Yes Intel InTru 3D Technology Yes Intel Clear Video HD Technology Yes Intel Clear Video Technology Yes Number of Displays Supported 3 Device ID 0x9BE6 Expansion Options Scalability 1S Only PCI Express Revision 3.0 PCI Express Configurations Up to 1x16, 2x8, 1x8+2x4 Max Number of PCI Express Lanes 16 Package Specifications Sockets Supported FCLGA1200 Max CPU Configuration 1 Thermal Solution Specification PCG 2015W TJUNCTION 100 o C Package Size 37.5mm x 37.5mm Advanced Technologies Intel Optane Memory Supported Yes Intel Thermal Velocity Boost No Intel Turbo Boost Max Technology 3.0 No Intel Turbo Boost Technology 2.0 Intel vPro Platform Eligibility Yes Intel Hyper-Threading Technology Yes Intel Virtualization Technology (VT-x) Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel VT-x with Extended Page Tables (EPT) Yes Intel Transactional Synchronization Extensions No Intel 64 Yes Instruction Set 64-bit Instruction Set Extensions Intel SSE4.1, Intel SSE4.2, Intel AVX2 Idle States Yes Enhanced Intel SpeedStep Technology Yes Thermal Monitoring Technologies Yes Intel Identity Protection Technology Yes Security and Reliability Intel AES New Instructions Yes Secure Key Yes Intel Software Guard Extensions (Intel SGX) Yes with Intel ME Intel OS Guard Yes Intel Trusted Execution Technology Yes Execute Disable Bit Yes Intel Boot Guard Yes

Essentials Product Collection Spare Cable Options Code Name Products formerly Coyote Pass Included Items (1) 860mm SlimSAS to MiniSAS HD RAID to HSBP (1) 660mm SlimSAS to MiniSAS HD RAID to HSBP Supplemental Information Description Cable for SAS drives from AIC to HSBP. SlimSAS x8 to Mini-SAS HD x4.

KeyFeatures - Intel Ethernet Network Adapter XXV710 Single-Port and Dual-Port 10GbE/25GbE support PCI Express (PCIe) 3.0 x 8 Support both PCI Express and Open Compute Project (OCP) form factors IEEE 802.3by spec and 25GEthernet.org spec compliance Network Virtualization offloads including VXLAN, NVGRE, GENEVE, VXLAN-GPE with Network Service Headers (NSH), and Multi-Protocol Label Switching(MPLS) Intel Ethernet Flow Director (Intel Ethernet FD) for hardware based application traffic steering Data Plane Development Kit (DPDK) optimized for efficient packet processing Excellent small packet performance for network appliances and Network Functions Virtualization (NFV) Intelligent offloads to enable high performance with Intel Xeon processor-based servers I/O virtualization innovations for maximum performance in a virtualized server Adaptive link establishment enables interoperability with other 25GbE capable switches and host controllers Item Dimension 9 x 6 x 1 Weight 1.00

Included Items (1) Power adapter FXXSSIPWR

MPN BX80708E2334 Essentials Product Collection Intel Xeon E Processor Code Name Products formerly Rocket Lake Vertical Segment Server Processor Number E-2334 Lithography 14 nm Use Conditions Server/Enterprise CPU Specifications Total Cores 4 Total Threads 8 Max Turbo Frequency 4.80 GHz Intel Turbo Boost Technology 2.0 Frequency 4.80 GHz Processor Base Frequency 3.40 GHz Cache 8 MB Intel Smart Cache Bus Speed 8 GT/s TDP 65 W Supplemental Information Embedded Options Available No Memory Specifications Max Memory Size (dependent on memory type) 128 GB Memory Types DDR4-3200 Max Number of Memory Channels 2 ECC Memory Supported Yes Intel Optane Persistent Memory Supported No Expansion Options Scalability 1S Only PCI Express Revision 4.0 Microprocessor PCIe Revision Gen 4 PCI Express Configurations Up to 1x16+1x4, 2x8+1x4, 1x8+3x4 Max Number of PCI Express Lanes 20 Package Specifications Sockets Supported FCLGA1200 Max CPU Configuration 1 TJUNCTION 100 o C Package Size 37.5 mm x 37.5 mm Advanced Technologies Intel Turbo Boost Technology 2.0 Intel vPro Platform Eligibility Yes Intel Hyper-Threading Technology Yes Intel Virtualization Technology (VT-x) Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel VT-x with Extended Page Tables (EPT) Yes Intel Transactional Synchronization Extensions No Intel 64 Yes Instruction Set 64-bit Instruction Set Extensions Intel SSE4.1, Intel SSE4.2, Intel AVX2, Intel AVX-512 Idle States Yes Enhanced Intel SpeedStep Technology Yes Thermal Monitoring Technologies Yes Security and Reliability Intel AES New Instructions Yes Secure Key Yes Intel Software Guard Extensions (Intel SGX) Yes with Intel SPS Intel Memory Protection Extensions (Intel MPX) Yes Intel OS Guard Yes Intel Trusted Execution Technology Yes Execute Disable Bit Yes Intel Boot Guard Yes Maximum Enclave Page Cache (EPC) Size for Intel SGX 0.5 GB

MPN CYPCBLSL208KIT Essentials Product Collection Spare Cable Options Code Name Products formerly Coyote Pass Included Items (1) 240/260 mm splitter cable, connects server board CPU0 x4 SlimSAS A and B (VT) to HSBP x8 SlimSAS SSD0-1 (VT) (1) 330/310 mm splitter cable, connects server board CPU0 x4 SlimSAS C and D (VT) to HSBP x8 SlimSAS SSD2-3 (VT) (1) 235/215 mm splitter cable, connects server board CPU1 x4 SlimSAS C and D (VT) to HSBP x8 SlimSAS SSD6-7 (VT) (1) 370/390 mm splitter cable, connects server board CPU1 x4 SlimSAS A and B (VT) to HSBP x8 SlimSAS SSD4-5 (VT) Supplemental Information Description Cable for 2U M50CYP2UR208 system to enable PCIe NVMe storage.

MPN BX80701G6405 Essentials Product Collection Intel Pentium Gold Processor Series Code Name Products formerly Comet Lake Vertical Segment Desktop Processor Number G6405 Lithography 14 nm Use Conditions PC/Client/Tablet CPU Specifications Number of Cores 2 Number of Threads 4 Processor Base Frequency 4.10 GHz Cache 4 MB Intel Smart Cache Bus Speed 8 GT/s TDP 58 W Supplemental Information Embedded Options Available No Datasheet https://www.intel.com/content/www/us/en/products/docs/processors/core/core-technical-resources.html Memory Specifications Max Memory Size (dependent on memory type) 128 GB Memory Types DDR4-2666 Max Number of Memory Channels 2 Max Memory Bandwidth 41.6 GB/s Processor Graphics Processor Graphics Intel UHD Graphics 610 Graphics Base Frequency 350 MHz Graphics Max Dynamic Frequency 1.05 GHz Graphics Video Max Memory 64 GB 4K Support Yes, at 60Hz Max Resolution (HDMI) 4096x2160 at 30Hz Max Resolution (DP) 4096x2304 at 60Hz Max Resolution (eDP - Integrated Flat Panel) 4096x2304 at 60Hz DirectX Support 12 OpenGL Support 4.5 Intel Quick Sync Video Yes Intel InTru TM 3D Technology Yes Intel Clear Video HD Technology Yes Intel Clear Video Technology Yes Number of Displays Supported 3 Device ID 0x9BA8 Expansion Options Scalability 1S Only PCI Express Revision 3.0 PCI Express Configurations Up to 1x16, 2x8, 1x8+2x4 Max Number of PCI Express Lanes 16 Package Specifications Sockets Supported FCLGA1200 Max CPU Configuration 1 Thermal Solution Specification PCG 2015C TJUNCTION 100 o C Advanced Technologies Intel Optane TM Memory Supported Yes Intel Thermal Velocity Boost No Intel Turbo Boost Max Technology 3.0 No Intel Turbo Boost Technology No Intel vPro Platform Eligibility No Intel Hyper-Threading Technology Yes Intel Virtualization Technology (VT-x) Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel VT-x with Extended Page Tables (EPT) Yes Intel Transactional Synchronization Extensions No Intel 64 Yes Instruction Set 64-bit Instruction Set Extensions Intel SSE4.1, Intel SSE4.2 Idle States Yes Enhanced Intel SpeedStep Technology Yes Thermal Monitoring Technologies Yes Intel Identity Protection Technology Yes Intel Stable Image Platform Program (SIPP) No Security and Reliability Intel AES New Instructions Yes Secure Key Yes Intel Software Guard Extensions (Intel SGX) Yes with Intel ME Intel OS Guard Yes Intel Trusted Execution Technology No Execute Disable Bit Yes Intel Boot Guard Yes

MPN CD8068904572501 Essentials Product Collection 3rd Generation Intel Xeon Scalable Processors Code Name Products formerly Ice Lake Vertical Segment Server Processor Number 6338 Lithography 10 nm CPU Specifications Number of Cores 32 Number of Threads 64 Processor Base Frequency 2.00 GHz Max Turbo Frequency 3.20 GHz Cache 48 MB Number of UPI Links 3 TDP 205 W Supplemental Information Embedded Options Available No Memory Specifications Max Memory Size (dependent on memory type) 6 TB Memory Types DDR4-3200 Maximum Memory Speed 3200 MHz Max Number of Memory Channels 8 ECC Memory Supported Yes Intel Optane Persistent Memory Supported Yes Expansion Options Scalability 2S PCI Express Revision 4.0 Max Number of PCI Express Lanes 64 Package Specifications Sockets Supported FCLGA4189 TCASE 81 o C Package Size 77.5mm x 56.5mm Advanced Technologies Intel Speed Select Technology Core Power Yes Intel Speed Select Technology Turbo Frequency Yes Intel Deep Learning Boost (Intel DL Boost) Yes Intel Speed Select Technology - Base Frequency Yes Intel Resource Director Technology (Intel RDT) Yes Intel Speed Shift Technology Yes Intel Turbo Boost Technology 2.0 Intel Hyper-Threading Technology Yes Intel Virtualization Technology (VT-x) Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel VT-x with Extended Page Tables (EPT) Yes Intel Transactional Synchronization Extensions Yes Intel 64 Yes Instruction Set Extensions Intel SSE4.2, Intel AVX, Intel AVX2, Intel AVX-512 Number of AVX-512 FMA Units 2 Intel Volume Management Device (VMD) Yes Security and Reliability Intel AES New Instructions Yes Intel Software Guard Extensions (Intel SGX) Yes with Intel SPS Intel Trusted Execution Technology Yes Execute Disable Bit Yes Intel Run Sure Technology Yes Mode-based Execute Control (MBE) Yes Intel Total Memory Encryption Yes

MPN SSDPF21Q800GB01 Essentials Product Collection Intel Optane TM DC SSD Series Code Name Products formerly Alder Stream Capacity 800 GB Performance Specifications Sequential Bandwidth - 100% Read (up to) 7200 MB/s Sequential Bandwidth - 100% Write (up to) 6100 MB/s Random Read (100% Span) 1500000 IOPS Random Write (100% Span) 1350000 IOPS Latency - Read 5 microsecond Latency - Write 5 microsecond Power - Active 18W Power - Idle 4.2W Reliability Vibration - Operating 2.17 Grms, (5-700 Hz), random Vibration - Non-Operating 3.13 Grms (5-800 Hz), random Shock (Operating and Non-Operating) 1,000 G, 0.5 ms, half sine Operating Temperature Range 0 o C to 70 o C Operating Temperature (Maximum) 70 o C Operating Temperature (Minimum) 0 o C Endurance Rating (Lifetime Writes) 100 DWPD Mean Time Between Failures (MTBF) 2 Million Hours Uncorrectable Bit Error Rate (UBER) less than 1 sector per 10 17 bits read Package Specifications Components Intel(R) Optane(TM) Memory Media Form Factor 2.5" 15mm Interface PCIe 4.0 x4, NVMe Advanced Technologies Enhanced Power Loss Data Protection Yes Hardware Encryption AES 256 bit High Endurance Technology (HET) Yes Temperature Monitoring and Logging Yes End-to-End Data Protection Yes
