Barebones/Complete Systems

MPN DESKMINI X300W CPU - Supports AMD AM4 Socket CPUs (Renoir, Picasso, Raven Ridge, up to 65W) Memory - Supports 2 x SO-DIMM DDR4 Memory, Max. 64GB - AMD Ryzen 4000 series 3200MHz - AMD Ryzen 3000/2000 series 2933MHz Chipset - AMD X300 Graphics Output - HDMI(4K at 60Hz) - DisplayPort, D-Sub Audio - 1 x Head Phone with MIC Jack, 1 x MIC-In (RealtekALC233) Front USB - 1 x USB 3.2 Gen1 Type-C, 1 x USB 3.2 Gen1 Type-A Rear USB - 1 x USB 3.2 Gen1 Type-A, 1 x USB 2.0 Type-A, Storage - 2 x SATA3 with Power connectors (RAID 0/1) - 1 x Ultra M.2 (2280) PCIe Gen3 x4 SSD Slot - 1 x Ultra M.2 (2280) Slot - PCIe Gen3 x4 (Renoir, Picasso and Raven Ridge APU) - PCIe Gen3 x2 (Athlon 2xxGE series APU) LAN - Gigabit LAN (RealtekRTL8111H) WLAN - 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module Connectors - 1 x USB 2.0 Header - 1 x Front Panel Header - 2 x 4-Pin fan connectors (CPU, SYS) - 1 x DC-In Jack (Supports 19V Power Adapters) - 1 x Internal Speaker Header (4-Pin) - 1 x Chassis Intrusion Header (2-Pin) - 1 x Audio Header (4-Pin) Accessory - 2 x SATA Data with Power Cable - 1 x 120W/19V adapter - 1 x Screws Pack

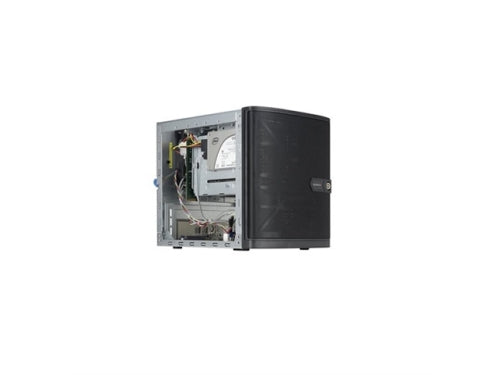

MPN SYS-5029AP-TN2 Motherboard Super A2SAV Processor/Cache CPU: Intel Atom Processor E3940 FCBGA 1296 System-on-Chip System Memory Memory Capacity: 1x 204-pin DDR3 SO-DIMM socket Memory Type: 1866/1600/1333MHz Unbuffered non-ECC SO-DIMM DDR3, 204-pin gold-plated DIMMs DIMM Sizes: 8GB, 4GB, 2GB Memory Voltage: 1.5 V, 1.35 V On-Board Devices SATA: SoC controller for 2 SATA3 (6Gbps) ports Marvel 88SE9230 controller for 4 SATA3 (6Gbps) ports RAID 0, 1, 5, 10 Network Controllers: Dual GbE LAN with Intel i210-AT controller Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Video: Intel HD Graphics Input / Output SATA: 6 SATA3 (6Gbps) ports LAN: 2 RJ45 Gigabit Ethernet LAN ports USB: 2 USB 3.0 (2 rear) 4 USB 2.0 (2 rear, 2 front) 1 USB 2.0 (Type A) COM Port: 2 serial ports DOM: 1 SATA DOM (Disk on Module) power connector Video: 1 VGA, 1 DP (Display Port), 1 HDMI, 1 eDP (Embedded Display Port), 1 Intel HD Graphics TPM: 1 TPM 1.2 onboard Header Management Software: SuperDoctor 5 Watch Dog Power Configurations: ACPI Power Management ATX Power connector Control of power-on for recovery from AC power loss CPU thermal trip support for processor protection Chassis Form Factor: Mini Tower Model: CSE-721TQ-250B Available Colors: Black Front Panel Buttons: Power On/Off button System Reset button LEDs: Power LED Hard drive activity LED Network activity LEDs System Overheat LED Expansion Slots PCI-E: 1 PCI-E 2.0 x2 (in x8) slot 1 M.2 PCIe 2.0 x2, M Key 2242/80 1 Mini-PCIe with mSATA Drive Bays HDD: 4 Hot-swap 3.5" drive bays 2 Internal 2.5" fixed drive bays Peripheral: 1 slim DVD-ROM drive bay (shared with 1 internal 2.5" fixed drive bay) Power Supply 250W Flex ATX Multi-output Bronze Power Supply AC Voltage: 100 - 240V, 50 - 60Hz, 5Amp +5V: Max:14 Amp Min:0.5 Amp +12V: Max:18 Amp Min:1 Amp at 100V-240V -12V: Max: 3 Amp Min: 0 Amp +3.3V: Max: 12 Amp Min: 0.3Amp 5VSB: Max: 2.5 Amp Min: 0 Amp Certification: 80 PLUS Bronze Certified System BIOS BIOS Type: 64Mb SPI Flash EEPROM with AMI UEFI BIOS BIOS Features: Plug and Play (PnP) DMI 2.3 ACPI 5.0 USB Keyboard support SMBIOS 2.7.1 UEFI Operating Environment / Compliance RoHS: RoHS Compliant Environmental Spec.: Operating Temperature: 10 o C to 35 o C (50 o F to 95 o F) Non-operating Temperature: -40 o C to 70 o C (-40 o F to 158 o F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

MPN SYS-6019P-WTR Motherboard Super X11DDW-L Processor/Cache CPU:Dual Socket P (LGA 3647) Intel Xeon Scalable Processors,Dual UPI up to 10.4GT/s Support CPU TDP 70-165W with IVR Cores:Up to 28 Cores with Intel HT Technology System Memory Memory Capacity:12 DIMM slots Up to 1.5TB ECC 3DS LRDIMM, 768GB ECC RDIMM, DDR4 up to 2666MHz Memory Type:2666/2400/2133MHz ECC DDR4 SDRAM On-Board Devices Chipset:Intel C621 chipset SATA:SATA3 (6Gbps) RAID 0, 1, 5, 10 Network Controllers:Dual LAN with Gigabit Ethernet from C621 IPMI:Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Video:ASPEED AST2500 BMC Input / Output SATA:4 SATA3 (6 Gbps) ports LAN:2 RJ45 Gigabit Ethernet ports 1 RJ45 Dedicated IPMI LAN port USB:4 USB 3.0 ports (rear) Video:1 VGA port DOM:2 SuperDOM (Disk on Module) ports System BIOS BIOS Type:AMI 32Mb SPI Flash ROM Management Software:Intel Node Manager IPMI 2.0 KVM with dedicated LAN SSM, SPM, SUM SuperDoctor 5 Watch Dog Power Configurations:ACPI / APM Power Management PC Health Monitoring CPU:Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator FAN:Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature:Monitoring for CPU and chassis environment Thermal Control for fan connectors Chassis Form Factor:1U Rackmount Model:CSE-815TQC-R706WB2 Dimensions and Weight Available Colors:Black Front Panel Buttons:Power On/Off button UID button LEDs:Power status LED HDD activity LED Network activity LEDs Universal Information (UID) LED Expansion Slots PCI-Express:2 PCI-E 3.0 x16 (FHHL) slots 1 PCI-E 3.0 x8 (LP) slot 1 PCI-E 3.0 x16 for Add-on-Module (AOM) 1 PCI-E M.2 SSD slot Drive Bays Hot-swap:4 Hot-swap 3.5" SATA3 drive bays Backplane SAS/SATA HDD Backplane System Cooling Fans:4 Counter-rotating 4cm PWM fans AC/DC240V Input Redundant Power Supply 700W/750W Redundant Power Supplies with PMBus Total Output Power:700W/750W Dimension(W x H x L):54.5 x 40.25 x 320 mm Input::100 - 140Vac / 8 - 6A / 50-60Hz 200 - 240Vac / 4.5 - 3.8A / 50-60Hz 200 - 240Vdc / 4.5 - 3.8A (CCC Only) +12V:Max: 58A / Min: 0.5A (100 - 140Vac) Max: 62A / Min: 0.5A (200 - 240Vac) Max: 62A / Min: 0.5A (200 - 240Vdc)(CB/CCC Only) +5V sb:Max: 3A / Min: 0A Output Type:Gold Finger Connector Mating with Molex 45984-4343 Certification:UL/cUL/CB/BSMI/CE/CCC Platinum Certified Operating Environment RoHS:RoHS Compliant Environmental Spec.:Operating Temperature: 10 o C - 35 o C (50 o F - 95 o F) Non-operating Temperature: -40 o C to 60 o C (-40 o F to 140 o F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) Item Dimension (L inchxW inchxH inch) 29 x 24 x 10 Weight 46.00lb

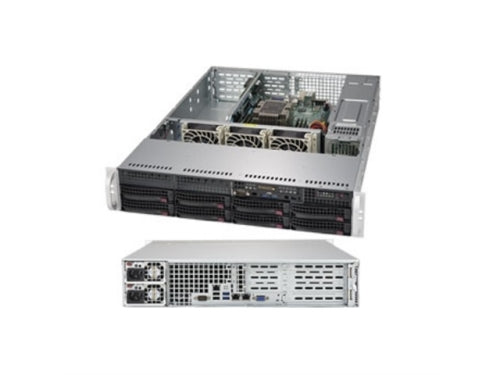

MPN SYS-5029P-WTR Motherboard Super X11SPW-TF Processor/Cache CPU:Single Socket P (LGA 3647) Intel Xeon Scalable Processors Support CPU TDP 70-205W Cores:Up to 28 Cores with Intel HT Technology System Memory Memory Capacity:6 DIMM slots Up to 768GB ECC 3DS LRDIMM, 192GB ECC RDIMM, DDR4 up to 2666MHz Memory Type:2666/2400/2133MHz ECC DDR4 SDRAM On-Board Devices Chipset:Intel C622 chipset SATA:SATA3 (6Gbps) RAID 0, 1, 5, 10 Network Controllers:Dual 10GBase-T LAN with Intel X772 + X557 IPMI:Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Video:ASPEED AST2500 BMC Input / Output SATA:10 SATA3 (6Gbps) ports LAN:2 RJ45 10GBase-T LAN ports 1 RJ45 dedicated IPMI LAN port USB:2 USB 3.0 ports (rear) 2 USB 2.0 ports (rear) Video:1 VGA port Serial Port / Header:2 COM ports (1 rear, 1 header) SuperDOM:2 SuperDOM (Disk on Module) ports with built-in power System BIOS BIOS Type:AMI 32Mb SPI Flash ROM Management Software:Intel Node Manager IPMI 2.0 KVM with dedicated LAN NMI SPM, SUM SuperDoctor 5 Watch Dog Power Configurations:ACPI / APM Power Management PC Health Monitoring CPU:Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator FAN:Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature:Monitoring for CPU and chassis environment Thermal Control for fan connectors Chassis Form Factor:2U Rackmount Model:CSE-825TQC-R500WB Dimensions and Weight Available Colors:Black Front Panel Buttons:Power On/Off button System Reset button LEDs:Power LED Hard drive activity LED Network activity LEDs System Overheat LED Information LED (temp., status) Expansion Slots PCI-Express:4 PCI-E 3.0 x8 (FHFL) slots 1 PCI-E 3.0 x8 (LP) slot Drive Bays Hot-swap:8 Hot-swap 3.5" SATA3 drive bays M.2:M.2 mini-PCI-e support Peripheral Drives DVD-ROM:1 Slim DVD-ROM drive bay System Cooling Fans:3 Hot-swap 8cm PWM cooling fans Power Supply with Power Distributor 500W high-efficiency redundant power supplies with PMBus AC Input:100-240 V, 50-60 Hz, 6.1-2.6 Amp DC Output: 4 Amp at +5V standby 41.7 Amp at +12V With Power Distributor:+5V: 30 Amp +3.3V: 24 Amp -12V: 0.6 Amp Certification: Platinum Certified Operating Environment RoHS:RoHS Compliant Environmental Spec.:Operating Temperature: 10 o C - 35 o C (50 o F - 95 o F) Non-operating Temperature: -40 o C to 60 o C (-40 o F to 140 o F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) Item Dimension (L inchxW inchxH inch) 34 x 27 x 11 Weight 61.00lb
