ASUS

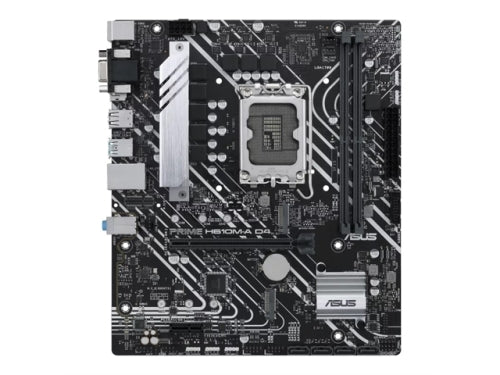

CPU Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Refer to www.asus.com for CPU support list. Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel H610 Chipset Memory 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. Graphics 1 x DisplayPort 1 x D-Sub port 1 x HDMI port Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K at 60Hz as specified in DisplayPort 1.4. Supports 4K at 60Hz as specified in HDMI 2.1. Expansion Slots Intel 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel H610 Chipset 2 x PCIe 3.0 x1 slots 1 x PCI slot Storage Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports Ethernet 1 x Intel 1Gb Ethernet ASUS LANGuard Wireless and Bluetooth M.2 slot only (Key E, CNVi and PCIe) Wi-Fi module is sold separately. USB Rear USB (Total 4 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 8 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x D-Sub port 1 x HDMI port 1 x Intel 1Gb Ethernet port 3 x Audio jacks 1 x COM port 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x M.2 slot (Key E) 1 x SMBUS header 1 x Speaker header 1 x 10-1 pin System Panel header Special Features ASUS EZ DIY - Box Headers Bespoke Motherboard Design and Business Focused Features - Q-LED Core - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit - Anti-Moisture Coating - 24/7 Reliability - Overcurrent Protection TPM IC Onboard Software Features ASUS Exclusive Software IT Management software supported - ASUS Control Center Express(ACCE) BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 SSD screw package 1 x M.2 Key E screw package Installation Media 1 x Support DVD Documentation 1 x ACC Express Activation Key Card 1 x User guide Operating System Windows 11 64-bit, Windows 10 64-bit Form Factor mATX Form Factor 9.6 inch x 8.7 inch ( 24.4 cm x 22 cm ) Including below info in 600 series refreshed NPI: Supports 13th gen Intel Core TM desktop processors. BIOS update may be required to boot the 13th gen Intel Core TM desktop processors

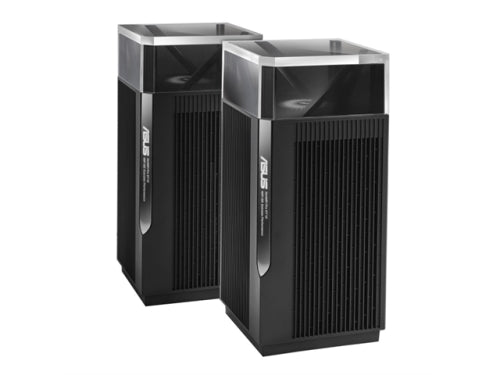

Network Standard IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) WiFi 6E (802.11ax) IPv4 IPv6 Product Segment AXE11000 ultimate AXE performance : 1148+4804+4804Mbps AX technology Yes Data Rate 802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 4 (802.11n) : up to 600 Mbps WiFi 5 (802.11ac) : up to 1000 Mbps WiFi 5 (802.11ac) : up to 4333 Mbps WiFi 6 (802.11ax) (2.4GHz) : up to 1148 Mbps WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps WiFi 6E (802.11ax) (6GHz) : up to 4804 Mbps Antenna internal antenna x 10 Transmit/Receive 2.4GHz 4x4 5GHz 4x4 6GHz 4x4 Processor 2.0 GHz quad-core 64bits processor Memory 256 MB Flash 1GB RAM Boosts speed OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth Operating Frequency 2.4G Hz, 5 GHz, 6 GHz Ports RJ45 for 2.5G BaseT for WAN x 1, RJ45 for 2.5G BaseT for LAN x 1, RJ45 for Gigabits BaseT for LAN x 2 Button WPS Button, Reset Button, Power Switch LED Indicator Power x 1 Status x 1 Power Supply AC Input : 110V to 240V(50 to 60Hz) DC Output : 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current AiMesh AiMesh : Yes Primary AiMesh router : Yes AiMesh node : Yes Router APP ASUS Router APP : Yes Alexa Support Alexa skill : Yes IFTTT Support IFTTT : Yes AiProtection AiProtection : AiProtection Pro Malicious site blocking : Yes Two-Way IPS : Yes Infected Device Prevention and Blocking : Yes Parental Control Parental Control : Yes Traffic Control Adaptive QoS : Yes Traffic Monitor : Yes Traffic Analyzer : Yes Wireless IPv6 : Yes MU-MIMO : Yes Wi-Fi Encryption : WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPA3-Personal, WPS support UTF-8 SSID : Yes Guest Network : Yes WPS : Yes Wi-Fi MAC address filter : Yes Wireless scheduler : Yes Airtime fairness : Yes RADIUS Server : Yes Universal beamforming : Yes Explicit beamforming : Yes WAN Dual WAN : Yes WAN Aggregation : Yes 3G/4G LTE dongle : No DMZ : Yes DDNS : Yes Lets Encrypt : Yes LAN IGMP snooping : Yes IPTV : Yes LAN Link Aggregation : Yes VPN VPN Client L2PT : Yes VPN Client OVPN : Yes VPN Client PPTP : Yes VPN Server IPSec : Yes VPN Server OVPN : Yes VPN Server PPTP : Yes Administration Operating mode : Wireless router mode Range extender mode Access point mode Media bridge mode Firewall : Yes Wake on LAN (WOL) : Yes Diagnosis tools : Yes Feedback system : Yes System log : Yes

Display Panel Size (inch) : 23.8 Aspect Ratio : 16:9 Display Viewing Area (H x V) : 527.04 x 296.46 mm Display Surface : Non-Glare Backlight Type : LED Panel Type : IPS Viewing Angle (CR more than or equal 10, H/V) : 178 o / 178 o Pixel Pitch : 0.2745mm Resolution : 1920x1080 Brightness (Typ.) : 300cd/m 2 Contrast Ratio (Typ.) : 1000:1 ASUS Smart Contrast Ratio (ASCR) : 100,000,000:1 Display Colors : 16.7M Response Time : 5ms(GTG) Refresh Rate (Max) : 75Hz Flicker-free : Yes Video Feature SPLENDID Technology : Yes Color Temp. Selection : Yes(4 modes) GamePlus : Yes QuickFit : Yes HDCP : Yes, 1.4 VRR Technology : Adaptive-Sync Low Blue Light : Yes Eye Care+ Technology : Yes Audio Feature Speaker : Yes(2Wx2) I/O Ports DisplayPort 1.2 x 1 HDMI(v1.4) x 1 VGA x 1 USB Hub : 2x USB 3.2 Gen 1 Type-A Earphone Jack : Yes PC Audio Input : Yes Signal Frequency Digital Signal Frequency : HDMI: 24-84 KHz (H)/ 48-75 Hz (V) DisplayPort: 84-84 KHz (H)/ 48-75 Hz (V) Analog Signal Frequency : 24-84 KHz (H)/ 48-75 Hz (V) Power Consumption Power Consumption : less than 13.5W Power Saving Mode : less than 0.5W Power Off Mode : less than 0.3W Voltage : 100-240V, 50/60Hz Mechanical Design Tilt : Yes (+35 o - -5 o ) Swivel : Yes (+180 o - -180 o ) Pivot : Yes (+90 o - -90 o ) Height Adjustment : 0-130mm VESA Wall Mounting : 100x100mm Kensington Lock : Yes Certificate TCO Certified TV Flicker-free TV Low Blue Light

Network Standard Bluetooth 5.2 WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) WiFi 6E (802.11ax) Bluetooth 5.2 Interface PCI-Express x 1 Data Rate 802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 4 (802.11n) : up to 300 Mbps WiFi 5 (802.11ac) : up to 1733 Mbps WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps WiFi 6E (802.11ax) (6GHz) : up to 2402 Mbps Operating Frequency 2.4GHz / 5GHz / 6GHz OS Support OS Support : Windows 10 64-bit (support 2.4GHz and 5GHz band only) Windows 11 64-bit Linux

Display Panel Size (inch) : 15.6 Aspect Ratio : 16:9 Display Viewing Area (H x V) : 344.23 x 193.54 mm Display Surface : Non-Glare Backlight Type : LED Panel Type : TN Viewing Angle (CR is more than or equal to 10, H/V) : 90 o / 60 o Pixel Pitch : 0.252mm Resolution : 1366x768 (WXGA ) Brightness (Typ.) : 220cd/m 2 Contrast Ratio (Typ.) : 400:1 ASUS Smart Contrast Ratio (ASCR) : 100000000:1 Display Colors : 262K Response Time : 5ms(GTG) Refresh Rate (Max) : 60Hz Touch : Yes (PCAP Touch) Flicker-free : Yes Video Feature Trace Free Technology : Yes SPLENDID Technology : Yes Color Temp. Selection : Yes(4 modes) QuickFit : Yes HDCP : Yes, 1.4 Low Blue Light : Yes Audio Feature Speaker : No I/O Ports HDMI(v1.4) x 1 VGA x 1 Power Consumption Power Consumption : 8W Power Saving Mode : less than 0.5W Power Off Mode : less than 0.5W Voltage : 100-240V, 50/60Hz Mechanical Design Tilt : Yes (+30 o to -5 o ) Height Adjustment : No VESA Wall Mounting : 75x75mm Kensington Lock : Yes Certificate TUV Flicker-free TUV Low Blue Light

Display Panel Size (inch) : 27 Aspect Ratio : 16:9 Display Viewing Area (H x V) : 597.89 x 336.31 mm Display Surface : Non-Glare Backlight Type : LED Panel Type : IPS Viewing Angle (CR is more than or equal to 10, H/V) : 178 o / 178 o Pixel Pitch : 0.311mm Resolution : 1920x1080 Brightness (Typ.) : 300cd/m 2 Contrast Ratio (Typ.) : 1000:1 ASUS Smart Contrast Ratio (ASCR) : 100,000,000:1 Display Colors : 16.7M Response Time : 5ms(GTG) Refresh Rate (Max) : 75Hz Flicker-free : Yes Video Feature Trace Free Technology : Yes SPLENDID Technology : Yes Color Temp. Selection : Yes(4 modes) GamePlus : Yes QuickFit : Yes HDCP : Yes, 1.4 VRR Technology : Adaptive-Sync DisplayWidget : Yes, DisplayWidget Lite Low Blue Light : Yes Eye Care+ Technology : Yes Audio Feature Speaker : Yes(2Wx2) I/O Ports DisplayPort 1.2 x 1 HDMI(v1.4) x 1 VGA x 1 USB Hub : 2x USB 3.2 Gen 1 Type-A Earphone Jack : Yes PC Audio Input : Yes Signal Frequency Digital Signal Frequency : 24 to 84 KHz (H) / 48 to 75 Hz (V) Analog Signal Frequency : 24 to 84 KHz (H) / 48 to 75 Hz (V) Power Consumption Power Consumption : less than 13.1W Power Saving Mode : less than 0.5W Power Off Mode : less than 0.3W Voltage : 100-240V, 50/60Hz Mechanical Design Tilt : Yes (+35 o to -5 o ) Swivel : Yes (+180 o to -180 o ) Pivot : Yes (+90 o to -90 o ) Height Adjustment : 0 to 150mm VESA Wall Mounting : 100x100mm Kensington Lock : Yes Certificate Energy Star TCO Certified TUV Flicker-free TUV Low Blue Light

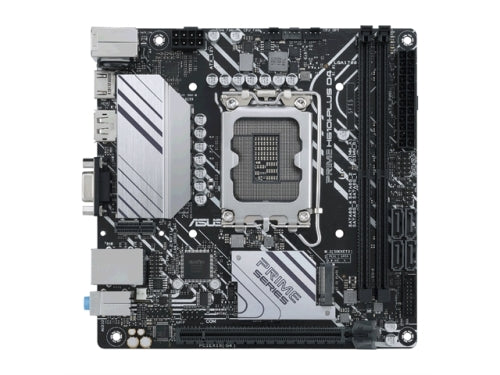

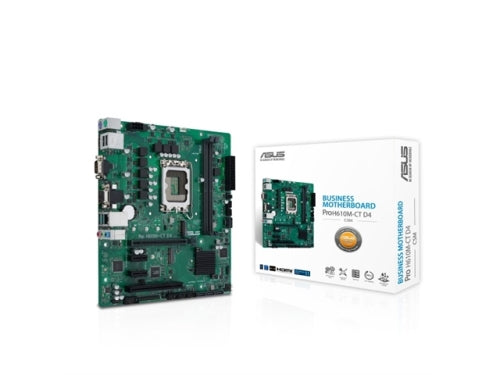

CPU Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Note1 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Note2 Note1: Refer to www.asus.com for CPU support list. Note2: Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel H610 Chipset Memory 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Note: Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphics 1 x DisplayPort 1.4 Note2 1 x D-Sub 1 x HDMI port Note3 Note1: Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Note1: Support DisplayPort 1.4 with max. resolution of 4K60Hz. Please refer to www.intel.com for any updates. Note3: Support HDMI 2.1 with max. resolution of 4K60Hz. Please refer to www.intel.com for any updates. Expansion Slots Intel 12th Gen Processors 1 x PCIe 4.0 x16 slot Storage Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports Ethernet 1 x Realtek 1Gb Ethernet Wireless and Bluetooth M.2 slot only (Key E, CNVi and PCIe) Note: Wi-Fi module is sold separately. USB Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers Note: A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x D-Sub port 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Mono-out header(with Amp IC) 1 x SMBUS header 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU (red), DRAM (yellow), VGA (white), Boot Device (yellow green)) - Q-Slot ASUS Thermal Solution - Aluminum heatsink design Software Features ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Screw Package Installation Media 1 x Support DVD Documentation 1 x User guide Operating System Windows 11 64-bit, Windows 10 64-bit Form Factor Mini ITX Form Factor Including below info in 600 series refreshed NPI: Supports 13th gen Intel Core TM desktop processors. BIOS update may be required to boot the 13th gen Intel Core TM desktop processors

Series ExpertBook Color Star Black Touch Screen No Touch Screen Display 14.0"//250nits//FHD (1920 x 1080) 16:9//Anti-glare//NTSC: 45% CPU Intel Core i5-1135G7 Processor 2.4 GHz (8M Cache, up to 4.2 GHz, 4 cores) MB Chipset N/A Memory 8GB DDR4 SODIMM 1x Socket (one slot installed w/ 4GB) + 4GB on board VGA Intel Iris Xe Graphics HDD 256GB PCIe SSD + TPM ODD No Optical Drive OS Windows 10 Pro WLAN Wi-Fi 6(802.11ax) Webcam 720p HD camera//With privacy shutter Blue Tooth BT5.2 (Dual band) 2x2 Keyboard Backlit Chiclet Keyboard Battery Information 42WHrs, 3S1P, 3-cell Li-ion Replaceable Battery N I/O Ports 1x HDMI 1.4 1x VGA Port (D-Sub) 1x 3.5mm Combo Audio Jack 1x RJ45 Gigabit Ethernet 1x DC-in 1x USB 2.0 Type-A 1x USB 3.2 Gen 1 Type-C support display / power delivery 2x USB 3.2 Gen 2 Type-A Card Reader N/A

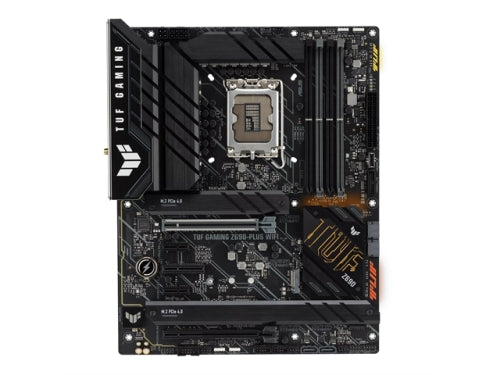

CPU Intel Socket LGA1700 for 12th Gen Intel Core TM , Pentium Gold and Celeron Processors Note1 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Note2 Note1: Refer to www.asus.com for CPU support list. Note2: Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel Z690 Chipset Memory 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory Note Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II Note: Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. Graphics 1 x DisplayPort Note2 1 x HDMI port Note3 Note1: Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Note2: Supports max. 4K at 60Hz as specified in DisplayPort 1.4 Note3: Supports 4K at 60Hz as specified in HDMI 2.1. Note4: VGA resolution support depends on processors or graphic cards resolution. Expansion Slots Intel 12th Gen Processors Note1 1 x PCIe 5.0 x16 slot Intel Z690 Chipset Note2 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x4 slot 2 x PCIe 3.0 x1 slots Note1: Please check PCIe bifurcation table in support site. Note2: Supports Intel Optane Memory H Series on PCH-attached PCIe slot Storage Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Note1 Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12th Gen processors support PCIe 4.0 x4 mode Intel Z690 Chipset Note2 M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 and SATA modes) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports Note1: Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. Note2: Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. Ethernet 1 x Intel 2.5Gb Ethernet TUF LANGuard Wireless and Bluetooth Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Note1 Bluetooth v5.2 hardware ready Note2 Note1: WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. Note2: Bluetooth v5.2 function will be ready in Windows 11 or later. USB Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio Cover Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt TM header Special Features SUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU (red), DRAM (yellow), VGA (white), Boot Device (yellow green)) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers Software Features ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 2 x M.2 Rubber Packages 1 x M.2 SSD screw package 1 x TUF GAMING sticker Installation Media 1 x Support DVD Documentation 1 x TUF Certification card 1 x User guide Operating System Windows 11 64-bit, Windows 10 64-bit Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Including below info in Z690 refreshed NPI: Supports 13th gen Intel Core TM desktop processors. BIOS update may be required to boot the 13th gen Intel Core TM desktop processors

Display Panel Size (inch) : 27 Aspect Ratio : 16:9 Display Viewing Area (H x V) : 597.89 x 336.31 mm Display Surface : Non-Glare Backlight Type : LED Panel Type : IPS Viewing Angle (CR greater than or equal 10, H/V) : 178 o / 178 o Pixel Pitch : 0.311mm Resolution : 1920x1080 Brightness (Typ.) : 250cd/m 2 Contrast Ratio (Typ.) : 1000:1 ASUS Smart Contrast Ratio (ASCR) : 100000000:1 Display Colors : 16.7M Response Time : 5ms(GTG) Refresh Rate (Max) : 60Hz Flicker-free : Yes Video Feature Trace Free Technology : Yes SPLENDID Technology : Yes Color Temp. Selection : Yes(4 modes) QuickFit : Yes HDCP : Yes Low Blue Light : Yes Web Camera : Yes(2.0M Pixels, Rotatable) Audio Feature Speaker : Yes(2Wx2) Microphone : Yes(x2 for MIC-Array) I/O Ports DisplayPort 1.2 x 1 HDMI(v1.4) x 1 VGA x 1 USB Hub : Yes(USB B upstream) Earphone Jack : Yes PC Audio Input : Yes Signal Frequency Digital Signal Frequency : 30-83 KHz (H) / 50-61 Hz(V) Analog Signal Frequency : 30-83 KHz (H) / 50-61 Hz (V) Power Consumption Power Consumption : less than 30W Power Saving Mode : less than 0.5W Power Off Mode : 0W (hard switch) Voltage : 100-240V, 50/60Hz Mechanical Design Tilt : Yes (+35 o - -5 o ) Swivel : Yes (+180 o - -180 o ) Pivot : Yes (+90 o - -90 o ) Height Adjustment : 0-150mm VESA Wall Mounting : 100x100mm Kensington Lock : Yes Certificate TV Flicker-free TV Low Blue Light

Processor System CPU Build in Intel Celeron Quad-Core J3455 SoC onboard Processors Memory Technology DDR3L 1866/1600/1333 MHz Non-ECC, Un-buffered Memory Max. 8GB Socket 2 x U-DIMM Display VGA 1, Supports up to 1920 X 1200 at 60 Hz HDMI 1, Supports up to 3840 x 2160 at 30 Hz Multi Display HDMI+VGA+LVDS Expansion Slot PCIe 1 x PCIe 2.0 x4 (x1 mode) M.2 1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT device Ethernet Speed 10/100/1000Mbps Controller 1 x Realtek RTL8111H, supports PXE/WOL Connector 1 x RJ-45 Audio Codec Realtek ALC887-VD2 8-Channel High Definition Audio Connector Line-Out, Line-In, MIC Storage SATA port 2 x SATA Gen 3.0, up to 6Gb/s Rear I/O VGA 1 HDMI 1 USB3.2 Gen1 4 Ethernet 1 Serial Port 1 (RS232) Audio jack 3 PS/2 1 x Keyboard Port, 1 x Mouse Port Internal Connector Serial Port 1 (RS232) USB3.2 Gen1 1 X Header Support Additional 2 X USB3.2 Gen1 Connectors USB2.0 2 X Header Support Additional 4 X USB2.0 Connectors CPU Fan Connector 1 (PWM Mode) Chassis Fan Header 1 (PWM+DC Mode) Chassis Intrusion Header 1 Parallel Port Connector 1 Front Panel Audio Header (AAFP) 1 System Panel Header 1(10-1 Pin) Clear CMOS Jumper 1 Buzzer 1 Display Panel Backlight Power Selector 1 Flat Panel Display Brightness Connector 1 Display Panel VCC Power Selector 1 Power Connector 1 X 4-pin ATX Power Connector, 1 X 24-pin EATX Power Connector Watchdog Timer H/W YES Security TPM 1 x LPC TPM header Power Power Type EATX, ATX mode Operating System Microsoft Windows Windows 10 (64bit) Linux Ubuntu, RedHat Enterprise, Fedora Workstation, OpenSUSE Environment Operating Temperature 0 to 50 o C Non-Operating Temperature -40 to 70 o C Relative Humidity 0% to 85% Form Factor Mini-ITX Certification Safety CE, FCC

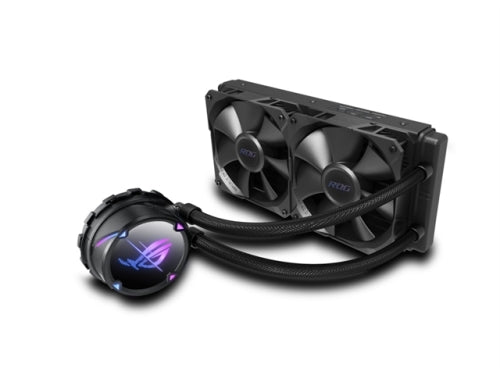

Water Block Block Material (CPU Plate): Copper Radiator Radiator Material: Aluminum Tube: Sleeved Rubber tube Tube Length: 380 mm Fan Fan: ROG Designed Radiator Fan - Size: 2 x Fan Slots (120mm) - Speed: 800 - 2500 RPM +/- 10% - Static Pressure: 5.0 mmH2O - Air Flow: 80.95 CFM / 137.5 m3h - Noise: 37.6 dB(A) - Control Mode: PWM/ DC Special Features AURA Sync Support: Yes Compatibility Intel: LGA 1700, 1200, 115x, 2011, 2011-3, 2066 AMD: AM4, TR4 Note Package Content 1 x Liquid Cooler (pre-applied thermal compound) 2 x 120 mm Radiator Fan 1 x USB cable for software control 1 x 1-to-2 Fan Splitter Cable 1 x Accessory Pack of Screws and Brackets 1 x Quick Start Guide 1 x ROG Sticker Note The mounting bracket is bundled with TR4 CPU Package

Display Panel Size (inch) : 23.8 Aspect Ratio : 16:9 Display Viewing Area (H x V) : 527.04 x 296.46 mm Display Surface : Non-Glare Backlight Type : LED Panel Type : IPS Viewing Angle (CR more than or equal 10, H/V) : 178 o / 178 o Pixel Pitch : 0.2745mm Resolution : 1920x1080 Brightness (Typ.) : 250cd/m 2 Contrast Ratio (Typ.) : 1000:1 ASUS Smart Contrast Ratio (ASCR) : 100000000:1 Display Colors : 16.7M Response Time : 5ms(GTG) Refresh Rate (Max) : 75Hz Flicker-free : Yes Video Feature Trace Free Technology : Yes SPLENDID Technology : Yes Color Temp. Selection : Yes(4 modes) GamePlus : Yes QuickFit : Yes HDCP : Yes VRR Technology : Adaptive-Sync Low Blue Light : Yes Eye Care+ Technology : Yes Audio Feature Speaker : Yes(2Wx2) I/O Ports DisplayPort 1.2 x 1 HDMI(v1.4) x 1 VGA x 1 USB Hub : Yes(2 ports USB 2.0) Earphone Jack : Yes PC Audio Input : Yes Signal Frequency Digital Signal Frequency : 30-85 KHz (H) / 48-75 Hz (V) Analog Signal Frequency : 30-83 KHz (H) / 50-75 Hz (V) Power Consumption Power Consumption : 16.7W Power Saving Mode : less than 0.3W Power Off Mode : less than 0.3W Voltage : 100-240V, 50/60Hz Mechanical Design Tilt : Yes (+35 o - -5 o ) Swivel : Yes (+180 o - -180 o ) Pivot : Yes (+90 o - -90 o ) Height Adjustment : 0-130mm VESA Wall Mounting : 100x100mm Kensington Lock : Yes

Display Panel Size (inch) : 23.8 Aspect Ratio : 16:9 Display Viewing Area (H x V) : 527.04 x 296.46 mm Display Surface : Non-Glare Backlight Type : LED Panel Type : IPS Viewing Angle (CR more than or equal 10, H/V) : 178 o / 178 o Pixel Pitch : 0.2745mm Resolution : 1920x1080 Brightness (Typ.) : 250cd/m 2 Contrast Ratio (Typ.) : 1000:1 ASUS Smart Contrast Ratio (ASCR) : 100000000:1 Display Colors : 16.7M Response Time : 5ms(GTG) Refresh Rate (Max) : 75Hz Flicker-free : Yes Video Feature SPLENDID Technology : Yes Color Temp. Selection : Yes(4 modes) GamePlus : Yes QuickFit : Yes HDCP : Yes, 1.4 VRR Technology : FreeSync Low Blue Light : Yes Eye Care+ Technology : Yes Audio Feature Speaker : Yes(2Wx2) I/O Ports USB-C x 1 HDMI(v1.4) x 1 Earphone Jack : Yes USB-C Power Delivery : 65W Signal Frequency Digital Signal Frequency : 30-85 KHz (H) / 48-75 Hz (V) Power Consumption Power Consumption : less than 16W Power Saving Mode : less than 0.5W Power Off Mode : less than 0.3W Voltage : 100-240V, 50/60Hz Mechanical Design Tilt : Yes (+23 o - -5 o ) VESA Wall Mounting : 100x100mm Kensington Lock : Yes Certificate TV Flicker-free TV Low Blue Light

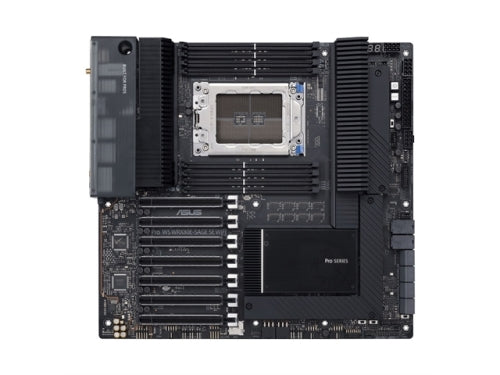

CPU AMD Ryzen Threadripper Pro Processors Refer to www.asus.com for CPU support list. Chipset AMD WRX80 Chipset Memory Memory Channels:8DDR4 (Eight Channel) Max Memory Size:2048GB 8 x DIMM, Max. 2048GB, DDR4 3200/3000/2933/2800/2666/2400/2133 MHz ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM and 3DS R-DIMM Memory 8 Channel Memory Architecture Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Expansion Slots AMD Ryzen Threadripper PRO Series Processors 7 x PCIe 4.0/3.0 x16 slot(s) Support PCIe bandwidth bifurcation for RAID on CPU function. Multi-GPU Support Supports NVIDIA 4-Way/3-Way/2-Way SLI Technology Storage Supports 3 x M.2 slots and 8 x SATA 6Gb/s ports AMD Ryzen Threadripper PRO Series Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 and SATA modes) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 and SATA modes) U.2_1 slot supports U.2 NVMe device and up to 4 SATA devices AMD WRX80 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 and SATA modes) U.2_2 slot supports U.2 NVMe device and up to 4 SATA devices 4 x SATA 6Gb/s ports ASMedia ASM1061 Controller 4 x SATA 6Gb/s ports Supports NVMe RAID configurations via M.2 storages The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled. Each U.2 slots can support up to 4 SATA devices via a transfer cable. the cable is perchased seperately. Ethernet 1 x Intel X550-AT2 dual 10Gb Ethernet Wireless and Bluetooth Intel Wi-Fi 6 AX200 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports 2.4/5GHz Dual-Band Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports PCIe interface Bluetooth v5.1 Bluetooth v5.1 function will be ready in Windows 10 build 19041 or later. USB 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C) Front USB:Total 7 ports 1 x USB 3.2 Gen 2 connector(s) (suppport(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Audio Relatek ALC4080 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback" Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 9 x USB 3.2 Gen 2 port(s) (8 x Type-A+ 1 x USB Type-C) 1 x ASUS Wi-Fi Module 2 x Intel X550-AT2 dual 10Gb Ethernet ports 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button Intrernal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 6 x 4-pin Chassis Fan header(s) 1 x VRM heatsink Fan header 1 x Chipset Fan header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 2 x 6-pin PCIe Graphics Card connector 1 x 8-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 8 x SATA 6Gb/s ports 2 x U.2 slots USB 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports BMC Related 1 x BMC switch 1 x IPMI switch 1 x Messange LED header 1 x Micro SD card socket 2 x LAN LED header(s) 1 x Location LED header 1 x Location button header 1 x PSU_SMB header 1 x SMART_PSU switch 1 x VGA switch 1 x VGA header 1 x VPP_I2C header Miscellaneous 1 x COM Port header 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x Start button 1 x 20-3 pin System Panel header with Chassis intrude function 1 x RTC Battery header 1 x Thermal Sensor header Special Features ASUS Q-Design - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU red, DRAM yellow, VGA white, Boot Device yellow green) - Q-Slot ASUS Thermal Solution - M.2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot Bespoke Motherboard Design and Business Focused Features - Event Log in ASMB9-iKVM - 24/7 Reliability - Overcurrent Protection ASMB9-iKVM for KVM-over-Internet Software Features ASUS Exclusive Software Armoury Crate ASUS CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS:X Ultra Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 6 x SATA 6Gb/s cables 1 x VGA cable Miscellaneous 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas 1 x Hyper M.2 X16 Gen 4 Card 3 x M.2 Rubber Package(s) 3 x M.2 SSD screw package(s) 1 x Q-connector Installation Media 1 x Support DVD Documentation 1 x User manual Form Factor 30.98cm x 33.02cm

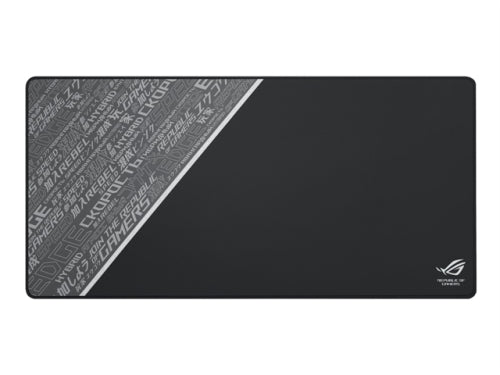

Contents 1 x Mousepad 2 x ROG logo stickers

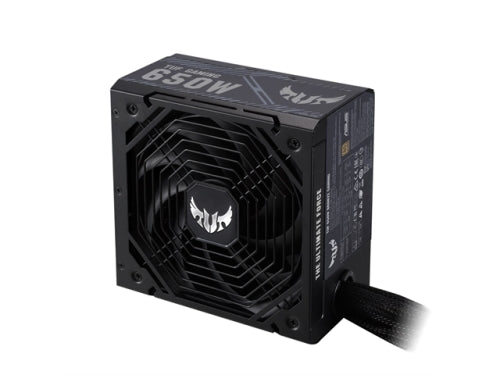

Intel Specification ATX12V Efficiency 80Plus Bronze Protection Features OPP/OVP/UVP/SCP/OCP/OTP Hazardous Materials ROHS AC Input Range 100-240Vac DC Output Voltage +3.3V +5V +12V -12V +5Vsb Maximum Load 25A 25A 51A 0.8A 3A Total Output 650W Connectors MB 24/20-pin x1 CPU 4+4-pin x2 PCI-E 6+2-pin x4 SATA x5 Periplheral x4 Package Contents Power Cord x1 Motherboard Power Cable x1 (600mm) CPU Cable x2 (800mm) PCI-E Cable x2 (600mm) SATA Cable x2 (400+120mm x1, 400+120+120mm x1) Periphreal x1 (400+150+150+150mm) TUF Gaming sticker x1

Display Panel Size (inch) : 27 Aspect Ratio : 16:9 Display Viewing Area (H x V) : 597.89 x 336.31 mm Display Surface : Non-Glare Backlight Type : LED Panel Type : IPS Viewing Angle (CR is more than or equal to 10, H/V) : 178 o / 178 o Pixel Pitch : 0.311mm Resolution : 1920x1080 Brightness (Typ.) : 250cd/m 2 Contrast Ratio (Typ.) : 1000:1 ASUS Smart Contrast Ratio (ASCR) : 100000000:1 Display Colors : 16.7M Response Time : 1ms MPRT Refresh Rate (Max) : 75Hz Flicker-free : Yes Video Feature Trace Free Technology : Yes SPLENDID Technology : Yes Color Temp. Selection : Yes(4 modes) GamePlus : Yes QuickFit : Yes HDCP : Yes VRR Technology : FreeSync TM Shadow Boost : Yes Motion Sync : Yes Low Blue Light : Yes Eye Care+ Technology : Yes I/O Ports HDMI(v1.4) x 1 VGA x 1 Earphone Jack : Yes Signal Frequency Digital Signal Frequency : 24 to 83 KHz (H) / 48 to 75 Hz (V) Analog Signal Frequency : 24 to 83 KHz (H) / 48 to 75 Hz (V) Power Consumption Power Consumption : less than 19W Power Saving Mode : less than 0.5W Power Off Mode : less than 0.5W Voltage : 100-240V, 50/60Hz Mechanical Design Tilt : Yes (+23 o to -5 o ) VESA Wall Mounting : 75x75mm Kensington Lock : Yes Certificate TUV Flicker-free TUV Low Blue Light AMD FreeSync

Display Panel Size: Wide Screen 27.0"(68.6cm) 16:9 Panel Type : IPS True Resolution : 1920x1080 Display Viewing Area(HxV) : 597.88 x336.31 mm Display Surface : Non-glare Pixel Pitch : 0.311 mm Brightness(Max) : 250 cd/m 2 Contrast Ratio (Max) : 1000:1 ASUS Smart Contrast Ratio (ASCR) : 100000000:1 Viewing Angle (CR is more than or equal to 10) : 178 o (H)/178 o (V) Response Time : 5ms (Gray to Gray) Display Colors : 16.7M Flicker free : Yes Refresh Rate(max) : 75Hz Video Feature Trace Free Technology : Yes SPLENDID Video Preset Modes : 8 Modes (sRGB Mode/Scenery Mode/Theater Mode/Standard Mode/Night View Mode/Game Mode/Reading Mode/Darkroom Mode) Skin-Tone Selection : 3 Modes Color Temperature Selection : 4 Modes QuickFit (modes) : Yes (Alignment Grid/Paper/Photo Modes) GamePlus(modes) : Yes (Crosshair/Timer/FPS Counter/Display Alignment) Low Blue Light : Yes HDCP support : Yes, 1.4 VividPixel : Yes Adaptive-Sync supported :Yes Audio Features Stereo Speakers : 2W x 2 Stereo RMS I/O Ports Signal Input : HDMI1.4, D-Sub, DisplayPort 1.2 PC Audio Input : 3.5mm Mini-Jack Earphone jack : 3.5mm Mini-Jack USB Port(s) : 2.0x2 Signal Frequency Analog Signal Frequency : 30 -85 KHz (H) /48 -75 Hz(V) Digital Signal Frequency : DisplayPort : 85 -85 KHz (H) /48 -75 Hz(V) HDMI : 30 -85 KHz (H) /48 -75 Hz(V) Power Consumption Power on (Typical) : <16W Power Saving Mode : < 0.5W Power Off Mode : <0.3W Voltage : 100-240V, 50 / 60Hz Mechanical Design Chassis Colors : Black Tilt : -5 o to +35 o Swivel : -180 o to +180 o Pivot : -90 o to +90 o Height Adjustment : 0-150 mm VESA Wall Mounting : 100x100mm Frameless Design : Yes Security Kensington lock Compliance and Standards TUV Flicker-free , TUV Low Blue Light Note Adaptive-Sync only can be activated within "48Hz - 75Hz" via DisplayPort and HDMI ports

Display Panel Size: Wide Screen 23.8"(60.5cm) 16:9 Panel Type : IPS True Resolution : 1920x1080 Display Viewing Area(HxV) : 527.04 x 296.46 mm Display Surface : Non-glare Pixel Pitch : 0.2745 mm Brightness(Max) : 250 cd/m 2 Contrast Ratio (Max) : 1000:1 ASUS Smart Contrast Ratio (ASCR) : 100000000:1 Viewing Angle (CR is more than or equal to 10) : 178 o (H)/178 o (V) Display Colors : 16.7M (real 8 bit) Flicker free : Yes Refresh Rate(max) : 75Hz Video Feature Trace Free Technology : Yes SPLENDID Video Preset Modes : 8 Modes (sRGB Mode/Scenery Mode/Theater Mode/Standard Mode/Night View Mode/Game Mode/Reading Mode/Darkroom Mode) Skin-Tone Selection : 3 Modes Color Temperature Selection : 4 Modes QuickFit (modes) : Yes (Alignment Grid/Paper/Photo Modes) GamePlus(modes) : Yes (Crosshair/Timer/FPS Counter) Low Blue Light : Yes HDCP support : Yes VividPixel : Yes FreeSync TM technology supported Adaptive-Sync supported :Yes Audio Features Stereo Speakers : 2W x 2 Stereo RMS I/O Ports Signal Input : HDMI, D-Sub, DisplayPort PC Audio Input : 3.5mm Mini-Jack Earphone jack : 3.5mm Mini-Jack Signal Frequency Analog Signal Frequency : 30 to 83 KHz (H) /50 to 75 Hz(V) Digital Signal Frequency : 30 to 85 KHz (H) /48 to 75 Hz(V) Power Consumption Power on (Typical) : <16.7W Power Saving Mode : < 0.3W Power Off Mode : <0.3W Voltage : 100-240V, 50 / 60Hz Mechanical Design Chassis Colors : Black Tilt : -5 o to +23 o VESA Wall Mounting : 100x100mm Frameless Design : Yes Security Kensington lock Compliance and Standards BSMI, CB, CCC, CE, CU, FCC, ISO-9241-307, KCC, PSE, RoHS, TCO8.0, TUV-Ergo, TUV-GS, VCCI, WEEE, WHQL (Windows 10, Windows 8.1, Windows 7), RCM, UL, TUV Flicker-free , KC , eStandby, TUV Low Blue Light, Vietnam MEPS, Australia MEPS, PC recycle, JM, CEC Note Adaptive-Sync only can be activated within 48Hz to 75Hz via HDMI and DisplayPort ports

Display Panel Size: Wide Screen 27.0"(68.47cm) 16:9 Color Saturation : 100% sRGB / 100% Rec. 709 Panel Type : IPS True Resolution : 2560x1440 Display Viewing Area(HxV) : 596.74 x 335.66 mm Display Surface : Non-glare Pixel Pitch : 0.2331 mm Brightness(Max) : 350 cd/m 2 Contrast Ratio (Max) : 1000:1 ASUS Smart Contrast Ratio (ASCR) : 100000000:1 Viewing Angle (CR greater than or equal 10) : 178 o (H)/178 o (V) Response Time : 5ms (Gray to Gray) Display Colors : 16.7M Flicker free : Yes Video Feature Trace Free Technology : Yes ProArt Preset : 9 Modes(sRGB Mode/Rec. 709 Mode/Scenery Mode/Standard Mode/Rapid Rendering/User Mode 1/User Mode 2/Reading Mode/Darkroom Mode) ProArt Palette : Yes Color Temperature Selection : 4 Modes Color Accuracy : E< 2 Gamma adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6 ) Color Adjustment : 6-axis adjustment(R,G,B,C,M,Y) QuickFit (modes) : Yes (Alignment Grid/Paper/Ruler Modes) Low Blue Light : Yes HDCP support : Yes, 1.4 Adaptive-Sync supported :Yes Audio Features Stereo Speakers : 2W x 2 Stereo RMS I/O Ports Signal Input : HDMI(v1.4), Mini DisplayPort 1.2, DisplayPort 1.2, Dual-link DVI-D PC Audio Input : 3.5mm Mini-Jack Earphone jack : 3.5mm Mini-Jack USB Port(s) : 3.0x4 Signal Frequency Digital Signal Frequency : 30 - 112 KHz (H) /46 - 75 Hz(V) Power Consumption Power On (Typical): < 18.6W Power Saving Mode : < 0.5W Power Off Mode : 0W (Hard Switch) 100-240V, 50/60Hz Mechanical Design Chassis Colors : Black Tilt : +35 o --5 o Swivel : +90 o - -90 o Pivot : +90 o - -90 o Height Adjustment : 0-150 mm VESA Wall Mounting : 100x100mm Frameless Design : Yes Quick Release Stand Design : Yes Security Kensington lock Compliance and Standards Energy Star, BSMI, CB, CCC, CE, CEL level , CU, ErP, FCC, ISO-9241-307, J-MOSS, KCC, PSE, RoHS, TUV-Ergo, TUV-GS, UkrSEPRO, UL/cUL, VCCI, WEEE, WHQL (Windows 10, Windows 7), RCM, TUV Flicker-free , KC , eStandby, TUV Low Blue Light, TCO, ICES-3, PC recycle Note To activate Rapid Rendering needs turn off Adaptive-Sync and only be activated at 7Hz. Brightness, Blue Light Filter, ASCR, Trace Free cannot be adjusted when using this function. measuring a screen brightness of 200 nits without audio/ USB/ Card reader connection

Display Panel Size: Wide Screen 24.5"(62.23cm) 16:9 Color Saturation : 72% NTSC Panel Type : IPS True Resolution : 1920x1080 Display Viewing Area(HxV) : 543.744 x 302.616 mm Display Surface : Non-glare Pixel Pitch : 0.2832 mm Brightness(Max) : 400 cd/m 2 Contrast Ratio (Max) : 1000:1 Viewing Angle (CR greater than or equal 10) : 178 o (H)/178 o (V) Response Time : 1ms (GTG, Ave.) Display Colors : 16.7M Flicker free : Yes Refresh Rate(max) : 280Hz Video Feature Trace Free Technology : Yes GamePlus(modes) : Yes (Crosshair/Timer/FPS Counter/Display Alignment/Sniper) Low Blue Light : Yes HDCP support : Yes VividPixel : Yes GameVisual :7 Modes(Scenery/Racing/Cinema/RTS/RPG/FPS/sRGB Modes/MOBA Mode) G-Sync compatible Extreme Low Motion Blur GameFast Input technology ELMB SYNC Dynamic shadow boost Audio Features Stereo Speakers : 2W x 2 Stereo RMS I/O Ports Signal Input : HDMI(v2.0) x2, DisplayPort 1.2 Earphone jack : 3.5mm Mini-Jack Signal Frequency Digital Signal Frequency : DisplayPort255 - 255 KHz (H) /48 - 280 Hz(V) HDMI : 30 -255 KHz (H) /48 - 240 Hz(V) Power Consumption Power Consumption < 20W Power Saving Mode <0.5W Power Off Mode <0.5W Mechanical Design Tilt : +33 o - -5 o Swivel : +90 o - -90 o Pivot : +90 o - -90 o Height Adjustment : 0-130 mm Security Kensington lock Note measuring a screen brightness of 200 nits without audio/ USB/ Card reader connection

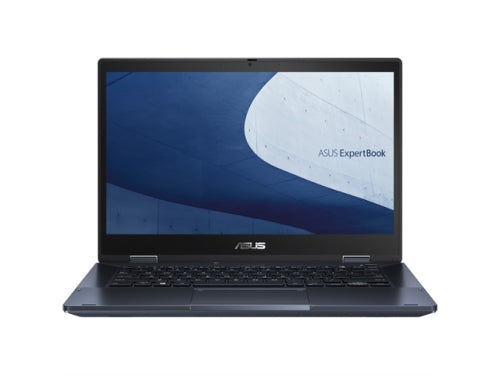

MPN B3402FEA-XH74T Color Star Black Operating System Windows 10 Pro - ASUS recommends Windows 11 Pro for business Processor Intel Core TM i7-1165G7 Processor 2.8 GHz (12M Cache, up to 4.7 GHz, 4 cores) Graphics Intel Iris X Graphics (available for Intel Core TM i5/i7/i9 with dual channel memory) Display Touch screen, 14.0-inch, FHD (1920 x 1080) 16:9, Wide view, Glossy display, LED Backlit, 250nits, NTSC: 45%, Screen-to-body ratio:80 %, With stylus support Memory 8G DDR4 on board, 8GB DDR4 SO-DIMM, Memory Max Up to:48GB Storage 512GB M.2 NVMe TM PCIe 3.0 SSD I/O Ports 1x USB 2.0 Type-A Up to 2x USB 3.2 Gen 1 Type-A 2x Thunderbolt TM 4 supports display / power delivery 1x HDMI 2.0a 1x 3.5mm Combo Audio Jack 1x RJ45 Gigabit Ethernet Expansion Slots (includes used) 1x DDR4 SO-DIMM slot 1x M.2 2280 PCIe 3.0x4 Keyboard and Touchpad Backlit Chiclet Keyboard, 1.5mm Key-travel, Spill-resistant Keyboard, Support NumberPad Camera 720p HD camera With privacy shutter 13.0M camera Audio Built-in speaker Built-in array microphone with Cortana support Network and Communication Wi-Fi 6(802.11ax) (Dual band) 2x2 + Bluetooth 5.2 (BT version may change with OS version different) Battery 50WHrs, 3S1P, 3-cell Li-ion Power Supply TYPE-C, 65W AC Adapter, Output: 19V DC, 3.42A, 65W, Input: 100 to 240V AC 50/60Hz universal Built-in Apps MyASUS McAfee MyASUS Features System diagnosis Battery health charging Fan Profile Splendid Tru2Life Function key lock WiFi SmartConnect AppDeals Link to MyASUS Microsoft Office 1-month trial for new Microsoft 365 customers. Credit card required. Military Grade US MIL-STD 810H military-grade standard Regulatory Compliance EPEAT Energy star Security Computrace ready from BIOS Trusted Platform Module (TPM) 2.0 Kensington Security Slot TM Fingerprint sensor integrated with Power Key Included in the Box (Optional) MPP 2.0 garaged stylus

Display Panel Size (inch) : 24 Aspect Ratio : 16:9 Display Viewing Area (H x V) : 531.36 (H) x 298.89 (V) mm Display Surface : Non-Glare Backlight Type : LED Panel Type : TN Viewing Angle (CR is more than or equal to 10, H/V) : 170 o / 160 o Pixel Pitch : 0.2768mm Resolution : 1920x1080 Brightness (Typ.) : 350cd/m 2 Contrast Ratio (Typ.) : 1000:1 ASUS Smart Contrast Ratio (ASCR) : 100,000,000:1 Display Colors : 16.7M Response Time : 0.5ms(GTG) Refresh Rate (Max) : 165Hz Flicker-free : Yes Video Feature Trace Free Technology : Yes GameVisual : Yes Color Temp. Selection : Yes(4 modes) GamePlus : Yes HDCP : Yes, 1.4 Extreme Low Motion Blur : Yes VRR Technology : FreeSync TM Premium GameFast Input technology : Yes Shadow Boost : Yes DisplayWidget : Yes, DisplayWidget Lite Low Blue Light : Yes I/O Ports DisplayPort 1.2 x 1 HDMI(v1.4) x 2 Earphone Jack : Yes Signal Frequency Digital Signal Frequency : DP: 200 to 200 KHz (H) / 48 to 165 Hz (V) HDMI: 30 to 180 KHz (H) / 48 to 144 Hz (V) Power Consumption Power Consumption : 16W Power Saving Mode : less than 0.5W Power Off Mode : less than 0.3W Voltage : 100-240V, 50/60Hz Mechanical Design Tilt : Yes (+15 o to -5 o ) VESA Wall Mounting : 100x100mm Kensington Lock : Yes Certificate TUV Flicker-free TUV Low Blue Light AMD FreeSync Premium
