Accessories

MPN CYP25HSCARRIER Essentials Product Collection Drive Bay Options Code Name Products formerly Coyote Pass Included Items (1) 2.5 SSD drive mounting rails plus drive extraction lever Supplemental Information Description 2.5" SSD Drive Mounting Rail Plus Drive (spare)

MPN CYP2URISER2STD Essentials Product Collection Riser Card Options Code Name Products formerly Coyote Pass Included Items (1) Riser card Supplemental Information Description Riser card for Riser Slot number 2 only. Supports: Slot 1 (top) One full height/full length single-width slot Slot 2 (middle) One full height/full length single-width slot Slot 3 (bottom) One full height/half length single-width slot

MPN AC-IUSBH-M3 Material(s) Plastic, PCB, Magnets Mounting Magnets, 3M Dual Lock Connections 1 x USB 2.0 Header, 1 x SATA Input Channel Voltage 5V DC System Requirements Requires a USB 2.0 internal connector.

MPN CYPHALFEXTRAIL Essentials Product Collection Rail Options Code Name Products formerly Coyote Pass Included Items Tool-less chassis attachment Tools required to attach rails to rack Rack installation front and rear post distance adjustment from 660 mm to 838 mm 560 mm travel distance Half extension from rack Support for front cover removal and fan replacement 31 kg (68.34 lbs) maximum support weight Supplemental Information Description 1U and 2U Half Extension Rail Kit Note: No cable management arm support

MPN CYPFULLEXTRAIL Essentials Product Collection Rail Options Code Name Products formerly Coyote Pass Included Items Tool-less installation Rack installation front and rear post distance adjustment from 623 mm - 942 mm 820 mm travel distance Full extension from rack 31 Kgs (68.34 lbs) maximum supported weight Support for Cable Management Arm AXXCMA2 Supplemental Information Description 1U and 2U Full Extension Rail Kit with cable management arm (CMA) support

MPN AH-2S620-D1 Output LED Quantity 2 strips / 6 LEDs per strip - 200mm LED Color RGB Included Accessories 200mm LED strips x2 500mm Extension cable x1 500mm Connection cable System Requirements PC with RGB lighting controller and Windows 10 operating system. Internet connection is needed to download CAM. Some CAM features require Internet access, a valid email address, and acceptance of our current Terms of Service.

MPN E10M20-T1 Hardware Specifications General Host Bus Interface PCIe 3.0 x8 Bracket Height Low Profile and Full Height Operating Temperature 0 o C to 40 o C (32 o F to 104 o F) Storage Temperature -20 o C to 60 o C (-5 o F to 140 o F) Relative Humidity 5% to 95% RH Storage Storage Interface PCIe NVMe Supported Form Factor 22110 / 2280 Connector Type and Quantity M-key, 2 Slots Network IEEE Specification Compliance IEEE 802.3an 10Gbps Ethernet IEEE 802.3bz 2.5Gbps / 5Gbps Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Flow Control Data Transfer Rates 10 Gbps Network Operation Mode Full Duplex Supported Features 9 KB Jumbo Frame TCP/UDP/IP Checksum Offloading Auto-negotiation between 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s, and 10Gb/s Compatibility Applied Models NVMe SSD SA series:SA3600, SA3400 20 series:RS820RP+, RS820+ 19 series:DS2419+, DS1819+ 18 series:RS2818RP+, DS3018xs, DS1618+ Notes DSM version requirement: 6.2.3-25426 or later version

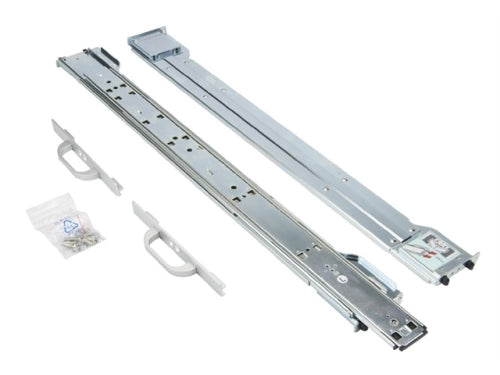

MPN MCP-290-00054-0N Brand : Supermicro P/N : MCP-290-00054-0N Height (Rack Units) : 1 U Product Type : 17.2inch Quick/Quick Rack slide rails kit Vendor Compatible Product(s) : SC815S Chassis Dimension (L x W x H in inches) : 28.6" X 6.2" X 2" Weight : 4.8lbs

MPN MCP-220-73102-0N Form Factor Custom Bracket Kit Hot Swap No Accessories Screws Product Environmental Compliance RoHS and REACH compliant, details available upon request

MPN HYPER M.2 X16 GEN 4 CARD Interface PCIe 4.0/3.0 x16 interface, compatible with PCIe x8 and x16 slots, support data transfer rates up to 256 Gbps. External Connectors 4 x M.2 slots (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0/3.0) - Supports PCIe M.2 storage devices only. LED and Button 1 x M.2 FAN Power Switch 4 x M.2 access LEDs Features AMD TRX40/X570 Series Motherboard models with PCIe 4.0 support Supports PCIe 3.0 bandwidth for other RAID on CPU models. Maximum numbers of M.2 SSD support will vary, depending on different CPU specs and PCIe bifurcation settings in different ASUS motherboards. Please see the FAQ link for further information: https://www.asus.com/support/FAQ/1037507

MPN E10G18-T2 General Specifications Standards IEEE 802.3an 10Gbps Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3ad Link Aggregation IEEE 802.3x Flow Control Data Transfer Rates 10 Gbps Network Operation Mode Full Duplex Supported Features 9 KB Jumbo Frame TCP/UDP/IP Checksum Offloading TCP Segmentation Offload (TSO) Applied Models FS3017 FS2017 FS1018 RS18017xs+ RS18016xs+ RS10613xs+ RS4017xs+ RS3618xs RS3617xs+ RS3617RPxs RS3617xs RS3614xs+ RS3614(RP)xs RS3413xs+ RS3412(RP)xs RS3411(RP)xs RS2818RP+ RS2418(RP)+ RS1619xs+ RS1219+ RS818(RP)+ RC18015xs+ DS3617xs DS3615xs DS3612xs DS3611xs DS3018xs DS1819+ DS1817+ DS1618+ DS1517+ Note DSM version requirement: 6.2.1-23824 or later version Hardware Specifications PCIe Interface PCIe 3.0 x8 Bracket Height Low Profile and Full Height Operating Temperature 0 o C to 40 o C (32 o F to 104 o F) Storage Temperature -20 o C to 60 o C (-5 o F to 140 o F) Relative Humidity 5% to 95% RH Item Dimension (L"xW"xH") 4 x 3 x 1 Weight 1.00 LB

MPN MCP-260-00128-0B Description 1U I/O Shield for X11SCZ with EMC Gasket in SC510 Chassis Weight 1.00 LB

MPN MCP-220-00116-0B

MPN MCP-220-00150-0B

MPN MCP-220-00158-0B MANUFACTURER Supermicro FORM FACTOR 3.5"-to-2.5" Tool-less Hot-Swap Drive Tray HOT SWAP Yes ACCESSORIES No (Tool-less) PRODUCT ENVIRONMENTAL COMPLIANCE RoHS and REACH compliant, details available upon request PRODUCT RESOURCES N/A Weight 1.00 lb

MPN MCP-290-10108-0B Description Dual system tray for Mini-ITX system Item Dimension (L inchxW inchxH inch) NA Weight 1.00 lb

MPN 16Q21P103 Suitable System Model P65 (1070),Creator 15M/17M, Bravo 15 ( RX5300M), WS75 ( Quadro RTX 4000/3000)/ P65 (RTX2060), GS65 ( 1660 Ti), Description 180W New Slim AC adapter + Power cord Item Dimension (L inchxW inchxH inch) NA Weight 2.00lb

MPN CLP8 Item Dimension (L"xW"xH") 5 x 5 x 1 Weight 1 lb

MPN AOC-MTGN-I2SM-O General Intel 82599ES 10GbE controller Super I/O Module (SIOM) Form Factor Dual SFP+ ports Load balancing on multiple CPUs iSCSI remote boot support Fibre Channel over Ethernet (FCoE) Support Intel PROSet Utility for Windows Device Manager Time Sync IEEE 1588 I/O Features Direct Cache Access (DCA) to avoid cache misses MSI-X support to minimize the overhead of interrupts, allowing load-balancing between multiple cores/CPUs Tx/Rx IP, SCTP, TCP and UDP checksum offloading capabilities (IPv4, IPv6) Receive and Transmit Side Scaling for Windows environments and scalable I/O for Linux environments Virtualization Features VMDq, Next-Generation VMDq (64 queues per port) PC-SIG SR-IOV implementation (64 virtual functions per port) Advanced Packet Filtering VLAN support to allow creation of multiple VLAN segments VXLAN through Software Manageability Features Preboot eXecution Environment (PXE) support Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) statistics counters iSCSI remote boot NC-SI for remote management Asset Management support on Supermicro platforms Controller asset tags such as part number, revision, serial number, and MAC addresses Advanced Software Features Teaming support IEEE 802.3ad (link aggregation control protocol) IEEE 802.1Q VLANs IEEE 802.3 2005 flow control support OS Support Windows Server 2012 R2, 2012, 2008 R2 (x64 Edition) Windows 8.1, 8, 7 (x64 Edition) RedHat Linux SUSE Linux FreeBSD UEFI VMWare Cables Support SFP+ direct attach twinaxial copper cables up to 7m Fiber-optic cables (with required optional SFP+ transceivers) Power Consumption Typical power consumption - 6.2W Maximum power consumption - 7.2W Operating Conditions Operating temperature: 0 o C to 55 o C (32 o F to 131 o F) Storage temperature: -40 o C to 70 o C (-40 o F to 158 o F) Storage humidity: 90% non-condensing relative humidity at 35 o C Compliance RoHS: RoHS Compliant 6/6, Pb Free

MPN AOC-SLG3-2M2-O Key Features Supports up to 2 NVMe M.2 SSDs Pure HBA Ambient operating temperature from 10 o C - 55 o C OS Support : Windows, Linux Validated Platforms Motherboards X10DRT-H X10DRW-i X10DSC+ X10SRM-F X10SRM-TF X10SRA Item Dimension (L inchxW inchxH inch) 12 x 10 x 4 Weight 4 lbs

MPN RSC-R2UW-4E8 Form Factor 2U Fit Type 2 PCI-E x16 Output Type 4 PCI-E x8 Design Type Active Gen2 Supported Yes Gen3 Supported Yes WIO Yes Auto Detection Yes

MPN MCP-220-93801-0B

MPN MCP-260-00042-0N

MPN MCP-410-00006-0N Supermicro Screw Bag (100 Screws) and Labels (24 Labels) For 2.5" Hot Swap Hard Drive Tray (MCP-410-00006-0N)
